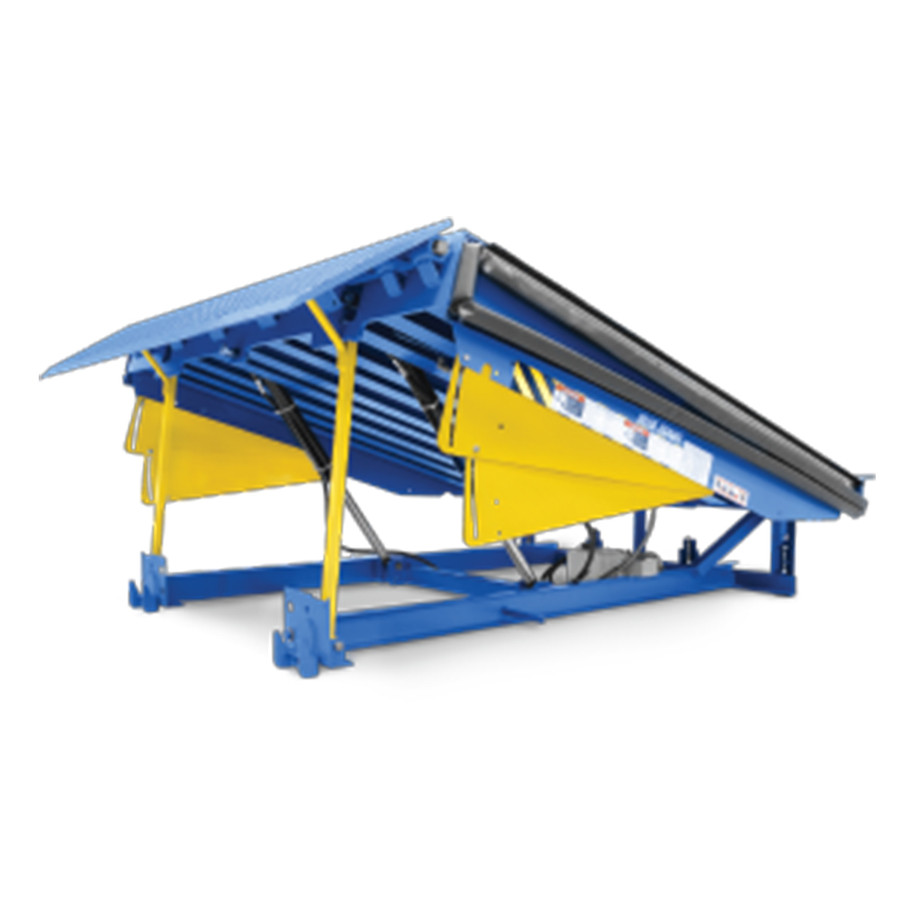

The Blue Giant HU7010-35 Hydraulic Dock Leveler is a high-capacity loading dock solution designed to bridge the gap between trailers and the dock floor with controlled hydraulic lift at the touch of a button. Built for demanding material handling environments, this 7' x 10' unit is rated for a static capacity of 35,000 lbs, making it suitable for heavy palletized loads and consistently loaded shipments. The system employs a self-contained, under-deck hydraulic power pack and a single push-button control station, delivering simple, ergonomic operation while reducing manual effort at the dock edge.
Constructed for durability, the leveler features a fixed rear hinge with 4-inch lateral ramp flex to accommodate non-level trailer beds, and full-height, high-tensile deck and lip components. The deck and lip are engineered from high-tensile steel, with a 16-inch long lip that is tapered on 7' wide models, and a beveled lip to ease wheel and pallet entry. A velocity fuse hydraulic fall-safe and a robust set of safety features—paired with a NEMA4X/IP65-rated control station—support reliable operation in varied dock conditions while maintaining lifecycle integrity.
Ideal usage involves frequent, high-load transfers where trailer heights and bed conditions vary. The unit accommodates a working range of roughly 12 inches above and 12 inches below dock level, enabling consistent alignment with irregular trailers. Pre-installed maintenance features like V-grooved struts and laminated bumpers are configured to withstand typical dock impacts, and the system is designed for straightforward maintenance and serviceability in standard dock environments. Optional independent lip control is available to further optimize cycle times and energy use when paired with the Blue Genius touch control panel.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailers
- Working range from 12" above to 12" below dock level
- High-tensile steel deck & lip
- 16" lip (tapered on 7' wide models)
- Self-contained TENV 1 HP power pack under deck
- Nominal Deck Size:
- 7' X 10'
- Static Capacity:
- 35000 lbs
- Package Size:
- Each
