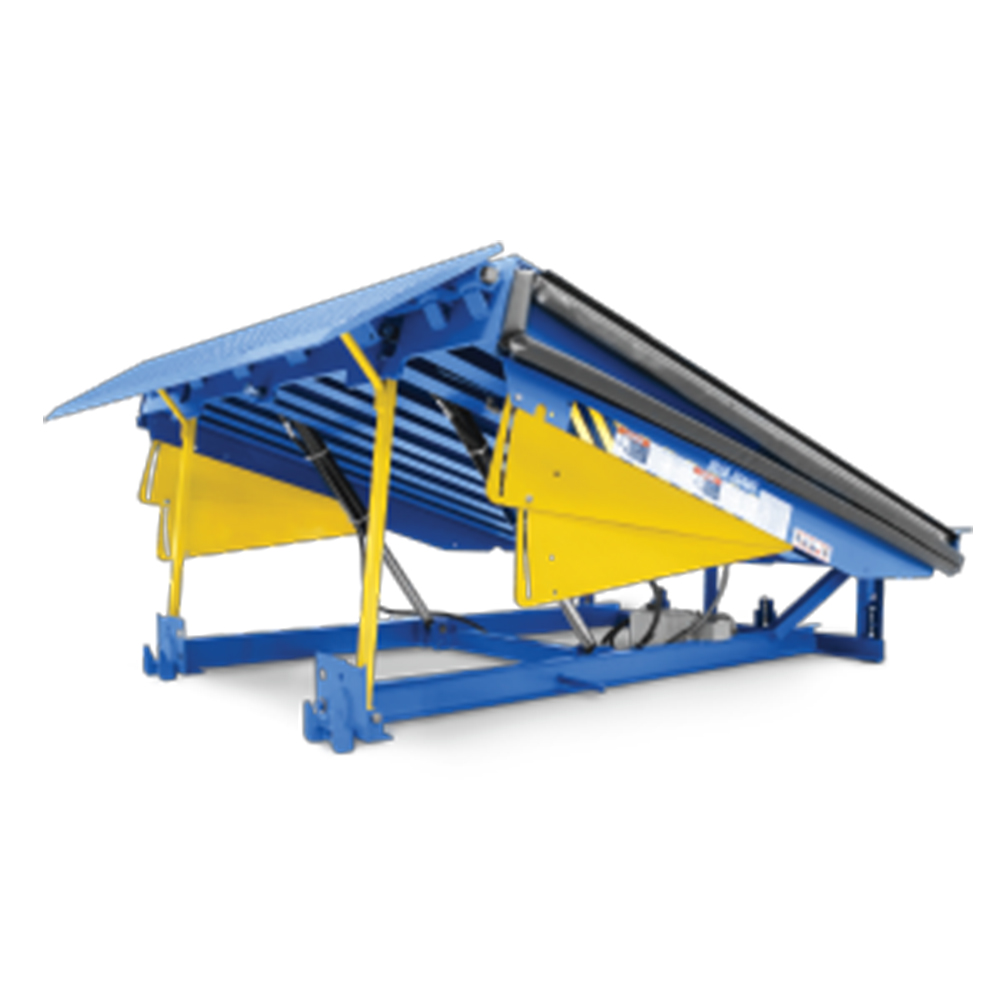

The Blue Giant HU7006-35 hydraulic dock leveler is a high-capacity loading dock solution designed to bridge gaps between trailers and the dock floor with ease. Its hydraulic operation is controlled from a dedicated push-button station, allowing precise, single-operator activation to raise and lower the deck for safer, more efficient material handling at the dock edge. The system is engineered for longevity, featuring strategically welded enhanced J-beams and high-tensile steel components that support a robust deck and lip construction, helping to withstand demanding daily use.
Key construction highlights include a 7' wide deck with a 16" lip that is tapered on 7' wide models, a fixed rear hinge with 4" lateral ramp flex to accommodate non-level trailer beds, and a full 12" above to 12" below dock operating range. The deck is supported by a minimum of six high-tensile solid steel U-beam members, while the inline hydraulic deck and lip cylinders promote smooth operation and reduced maintenance compared with mechanical units. The unit ships with dual laminated bumpers for certain widths and a V-grooved maintenance strut, along with a full complement of safety features such as a velocity fuse fall-safe and painted toe guards for visibility at the dock edge.
Designed for industrial environments, this model uses a self-contained tenacious power pack mounted under the deck and a NEMA4X/IP65-rated SP1 control station for reliable, weather-resistant operation. This configuration supports typical dock-to-trailer transitions in facilities handling pallets, crates, and other bulk goods. For installation and compatibility, verify the nominal 7' x 6' deck size, 35,000 lb static capacity, and the requirement for an appropriate power specification to drive the hydraulic system, noting that lip control can be independent if desired (Blue GeniusTouch control panel required). This model is intended to be installed as a complete, ready-to-operate unit with the specified package configuration (Each).
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailers
- 12" above and 12" below dock level operating range
- High-tensile steel deck & lip with 16" lip
- Beveled lip for smooth pallet entry
- Self-contained TENV 1 HP power pack under deck
- Nominal Deck Size:
- 7' X 6'
- Static Capacity:
- 35000 lbs
- Package Size:
- Each
