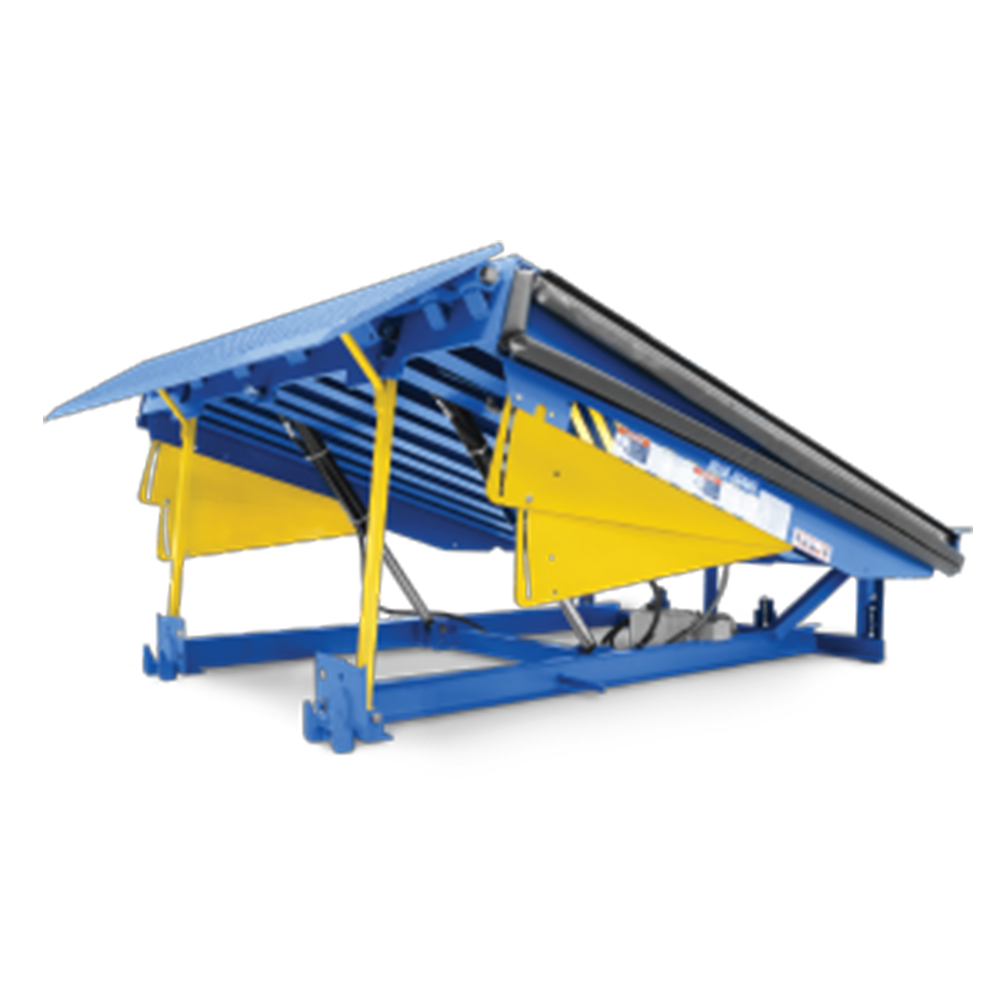

Blue Giant HU6610-45 Hydraulic Dock Leveler is a high-performance loading dock solution designed to automate the raise/lower cycle with a single push button. This 6'6" x 10' leveler uses a self-contained hydraulic power pack mounted under the deck and a dedicated control station, delivering consistent operation while reducing manual effort at the dock. The unit emphasizes structural integrity and reliability through welded enhanced J-beams and high-tensile deck and lip, helping to resist daily loading and unloading demands.
Key construction features include a 16" tapered lip on wide models, a fixed rear hinge with 4" lateral ramp flex to accommodate non-level trailer beds, and a full operating range that accommodates loading heights both above and below dock level. The design incorporates safety elements such as a velocity fuse fall-safe, toe guards painted in safety yellow, and a beveled lip to ease pallet entry. Independent lip control is available as an option, and the SP1 control station provides a simple constant-pressure up command, all within a NEMA 4X/IP65 rated enclosure for durability in demanding environments.
This model supports standard dock configurations with dual laminated bumpers (DB411) for 6' and 6'6" widths, and is configured for a 45,000 lb static capacity with a 6'6" x 10' deck size. The unit is shipped as an individual package and is intended for factory installation in facilities where a powered, hydraulic dock leveler can streamline vehicle access and improve loading productivity. Maintenance considerations include a self-purging hydraulic deck cylinder and a ready-to-service design to minimize downtime when servicing hydraulic components.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailer beds
- Working range 12" above and below dock level
- High-tensile steel deck and lip with six high-tensile U-beam members
- 16" long beveled lip (tapered on 7' wide models)
- Self-contained TENV 1 HP power pack under deck
- Single push button SP1 control station, NEMA4X/IP65 rated
- Hydraulic velocity fuse fall-safe
- Inverted hydraulic loading dock leveler deck cylinder
- Nominal Deck Size:
- 6'6" X 10'
- Static Capacity:
- 45000 lbs
- Package Size:
- Each
