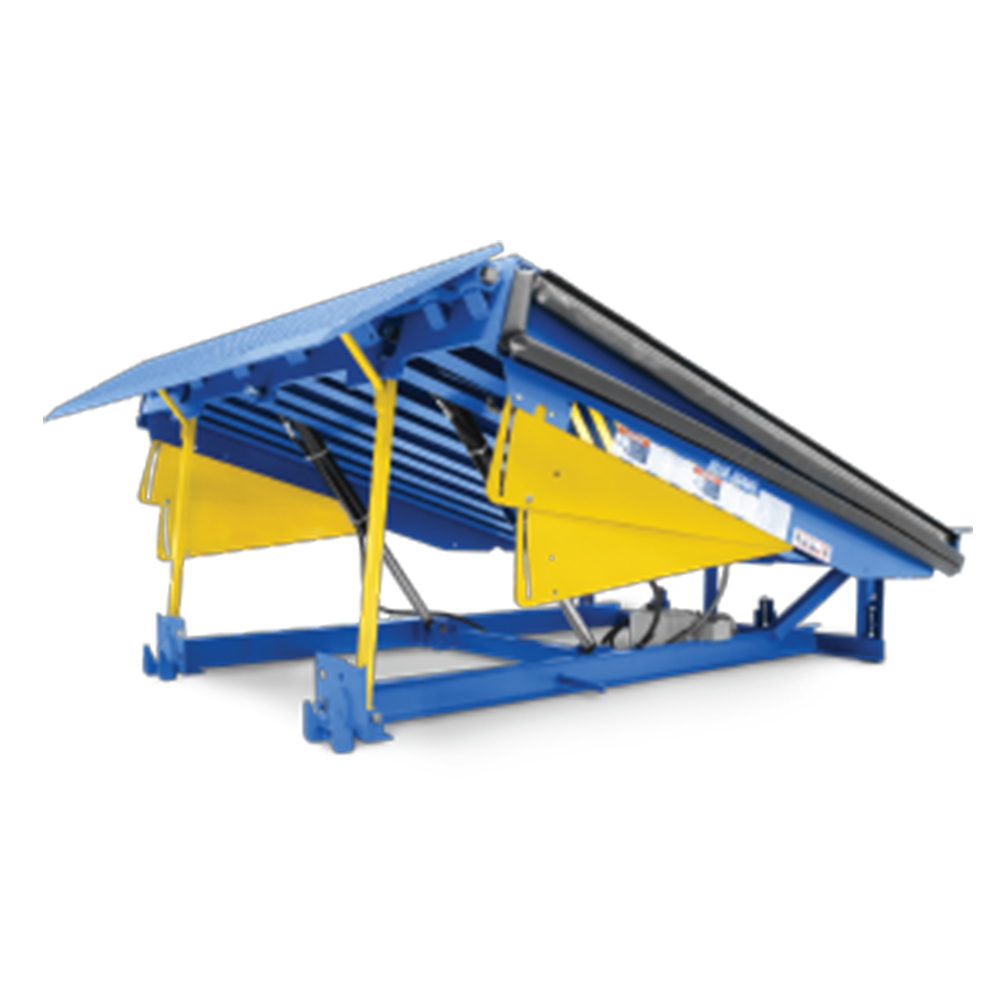

The Blue Giant HU6610-30 hydraulic dock leveler is a high-capacity loading dock solution designed to bridge the gap between trailers and the dock floor with the push of a button. This model features a 6'6" by 10' deck and a static rating of 30,000 pounds, making it suitable for heavy-duty material handling tasks at busy loading docks. The hydraulic deck and lip cylinders are engineered to deliver smooth, reliable operation while reducing maintenance compared with mechanical systems, contributing to lower owning costs over time. A fixed rear hinge plus a 4" (101 mm) lateral ramp flex helps accommodate non-level trailer beds, helping to maintain alignment during lift and positioning operations.
Constructed with high-tensile steel components, the deck and lip are designed to withstand demanding use, with a 16" (406 mm) long lip and a beveled lip edge for easier fork entry. The system is equipped with a self-contained 1 HP power pack mounted under the deck (voltage specified at order) and a single push-button SP1 control station, which provides an intuitive, constant-pressure UP control. Safety features include a velocity fuse-based fall-safety mechanism, full-range toe guards painted in safety yellow, and the rugged support of dual laminated bumpers appropriate for the model width. The SP1 station is rated for NEMA4X/IP65 protection, ensuring operation in challenging environments.
When planning installation and use, consider that this leveler is intended for dock-to- trailer transitions and requires compatible mounting and power arrangements. The listed package is per unit (each), and the design accommodates independent lip control as an optional enhancement. For best results, verify mounting space, trailer bed flatness, and electrical supply requirements before ordering to ensure proper fit and function.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex for non-level trailers
- 12" above and 12" below dock level working range
- High-tensile steel deck & lip; six U-beam supports
- 16" long lip, beveled for safety
- Self-contained hydraulic power pack under deck
- Nominal Deck Size:
- 6'6" X 10'
- Static Capacity:
- 30000 lbs
- Package Size:
- Each
