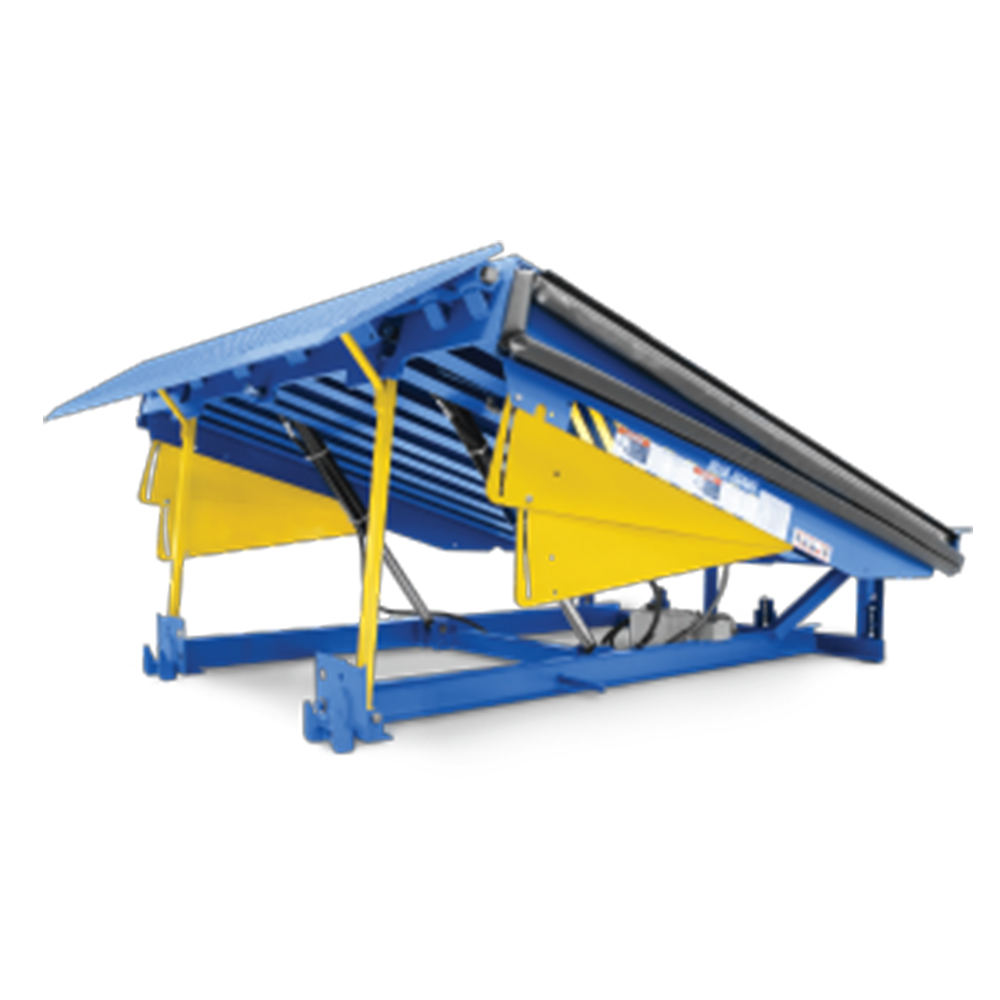

The Blue Giant HU6610-35 Hydraulic Dock Leveler is a robust, high-capacity solution designed to bridge the gap between trailers and your dock. This 6'6" x 10' unit utilizes hydraulic deck and lip cylinders to provide smooth, controllable raise and lower cycles at the push of a button, helping reduce cycle time and maintenance compared to mechanical units. A fixed rear hinge with a 4" lateral ramp flex accommodates non-level trailer beds, while the beveled lip and 16" long lip extend the reach for load transfer. The system is built with high-tensile solid steel U-beam members and a fire-hardened deck and lip to support heavy pallets and equipment with greater stability.
The dock leveler is wired for easy operation via a single push button control station (model SP1), which operates a self-contained 1 HP power pack mounted under the deck. The control station is rated for harsh environments (NEMA4X/IP65) and is compact in size, facilitating straightforward installation in many dock configurations. Safety features include a velocity fuse for fall protection and toe guards finished in safety yellow, with an inverted hydraulic loading deck cylinder that self-purges air for reliable startup.
This model incorporates two laminated DB411 bumpers at standard sizes for 6' and 6'6" widths, with the option of DB411WB bumpers on certain widths. The combination of independent lip control (optional) and Blue Genius touch panel compatibility supports flexible operation and potential energy savings. Intended for applications requiring a 35,000 lb static capacity, this unit is suited for high-load palletized goods and frequent dock activity, where quick, dependable deck operation and durable construction are critical.
Features:
- Increased Safety at the Loading Dock
- Ergonomic Hydraulic Operation
- Fixed rear hinge with 4" lateral ramp flex
- 12" above and 12" below dock level working range
- High-tensile steel deck with 16" lip
- Beveled lip; tapered lip on 7' wide models
- Self-contained 1 HP power pack under deck
- Nominal Deck Size:
- 6'6" X 10'
- Static Capacity:
- 35000 lbs
- Package Size:
- Each
