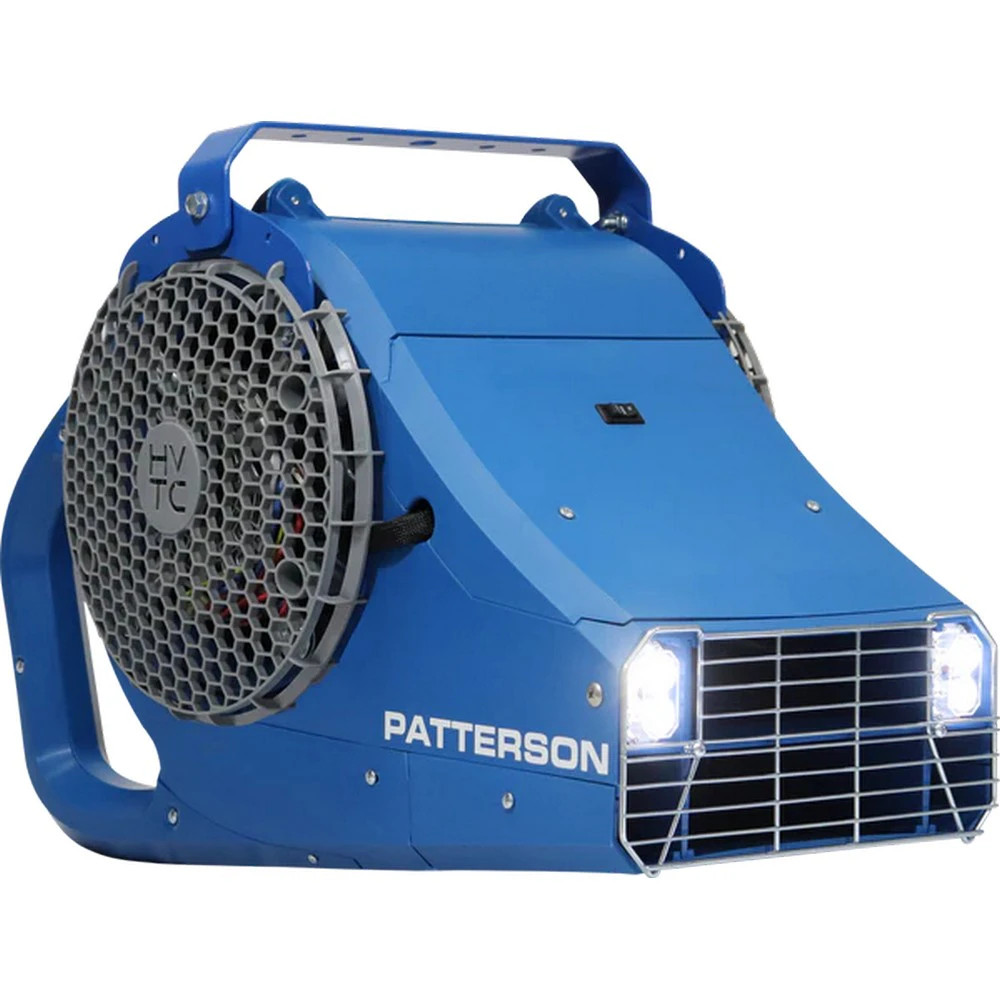

The Patterson HVTC-L-MOUNT loading dock fan is engineered to purge a 53-foot trailer quickly during manual loading and unloading. Designed for high-velocity airflow with a compact footprint, this unit helps improve trailer comfort and turnover by moving large volumes of air at the dock while occupying only a small vertical space at the door. The model designated PATFHVTCC-IDL-L-MOUNT features a 9.5 x 11 inch blower wheel and a robust fan housing made from high impact polypropylene, with an enclosure that complies with open-drip-proof (ODP) style expectations. In addition to raw airflow performance, the fan is specified for continuous duty and operates in ambient temperatures up to 104°F, making it suitable for daily use in typical loading dock environments.
The HVTC family emphasizes efficiency and reduced electrical draw, with design elements that aim to deliver higher CFM output while maintaining lower amperage relative to competitive models. Optional components include integrated 15-watt LED dock lights and a 4-way switch attached to the power cord for convenient control of both power and lighting. The unit is designed to install in fixed mount configurations at the dock, with a focus on minimal clearance requirements (the compact design helps maintain access at the door opening). The listed specifications note a nominal speed of 1,075 RPM and operating noise around 75 dB at 3 feet, which are important factors for planning placement, ambient conditions, and worker comfort near the discharge site.

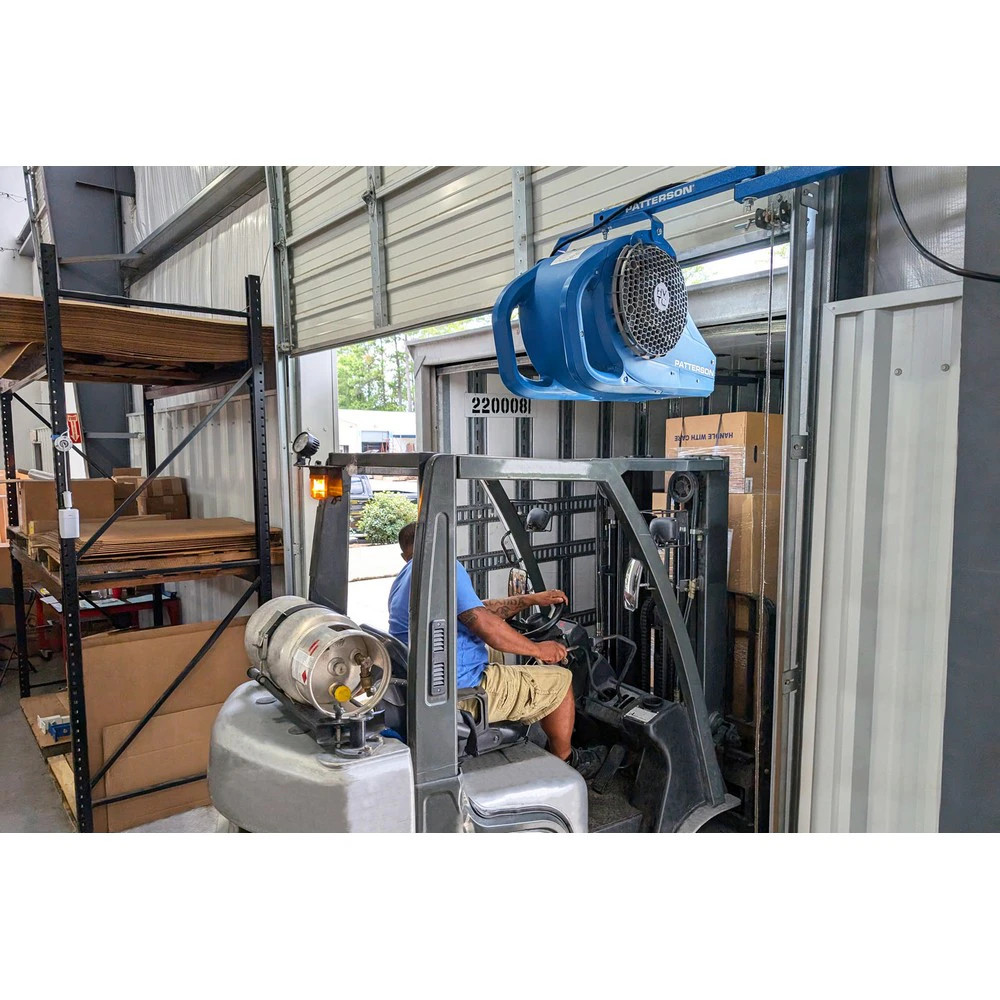

This product is presented as a purpose-built solution for trucks with standard dock operations, where quick trailer purging and reliable ventilation are desired without compromising workspace clearance. For procurement, note the manufacturer part number PATFHVTCC-IDL-L-MOUNT and consider whether the optional LED lighting and switch accessories align with your installation and control needs.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integrated LED Dock Lights (15W, optional)
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
