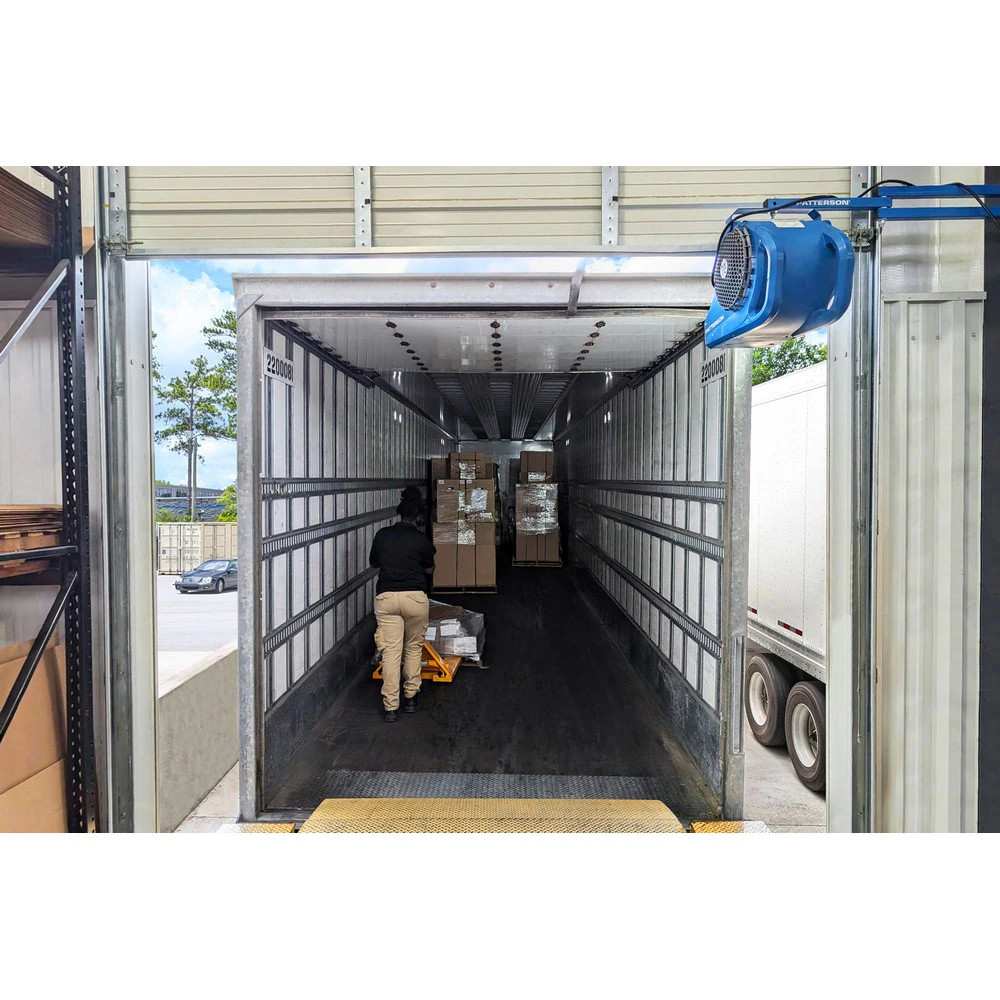

The Patterson HVTC-IDL Loading Dock Fan is a high-velocity cooling solution designed to purge air from truck trailers during manual loading and unloading. This yoke-mounted unit provides a powerful airflow aimed at quickly exchanging the trailer interior air, helping to maintain a comfortable environment for workers and potentially improving material handling efficiency. The model is offered with an integrated LED lighting option, enabling illumination of the bay or interior trailer space to assist in tasks performed near the dock.
Constructed with a high-impact polypropylene fan housing and a compact footprint, the HVTC-IDL is designed to fit within standard dock-door clearance while delivering substantial air movement. The blower wheel measures 9.5" x 11" and runs at 1075 RPM, producing a noted airflow suitable for purging the interior of a 53-foot trailer in minutes. Acoustic performance is specified at 75 dB at 3 feet, providing an idea of the noise level under typical operation. The unit is configured for continuous duty and supports a range of voltages (208-230/460V) to match common dock electrical setups. Optional safety and performance enhancements, such as inlet and outlet guards and LED dock lighting (15W), can be included to support visibility and protection in busy loading zones.
In practical terms, this fan is intended for use directly at the bulkhead to create rapid air exchange, helping to reduce heat and odor buildup during the loading process. The product is designed to meet standard industrial expectations for dock-area fans, with listed dimensions and components that support straightforward installation and maintenance. When choosing this unit, verify your power supply and mounting fit within the 5-inch vertical clearance requirement implied by its design and ensure compatible guards or guards are installed if needed for safety and compliance in your facility.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integrated LED Dock Lights Optional (15W)
- Yoke Mount for Flexible Installation
- High Impact Polypropylene Housing
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
