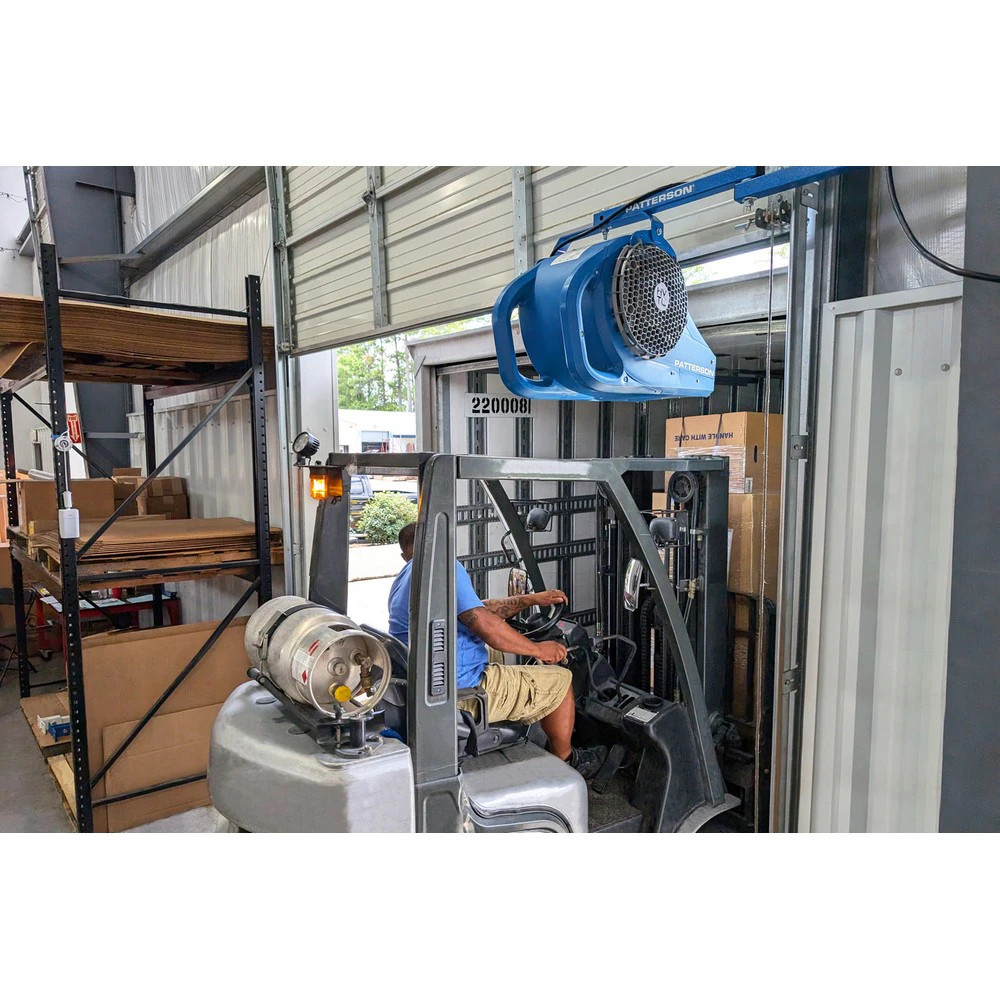

The Patterson HVTC-L-MOUNT is a high-velocity, dock-mounted fan designed to purge truck trailers quickly during manual loading and unloading. Sized for compact clearance at the dock, this unit delivers substantial air movement without occupying valuable vertical space, helping to improve trailer cooling and turnover without intruding on workspace floor area. The model is configured for 208-230/460V operation and ships without lights, relying on the optional integrated 15-watt LED dock lights and a four-way switch for convenient power and light control when added.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Inlet Guards with .5" Opening
- Optional Integrated LED Dock Lights (15W)
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
