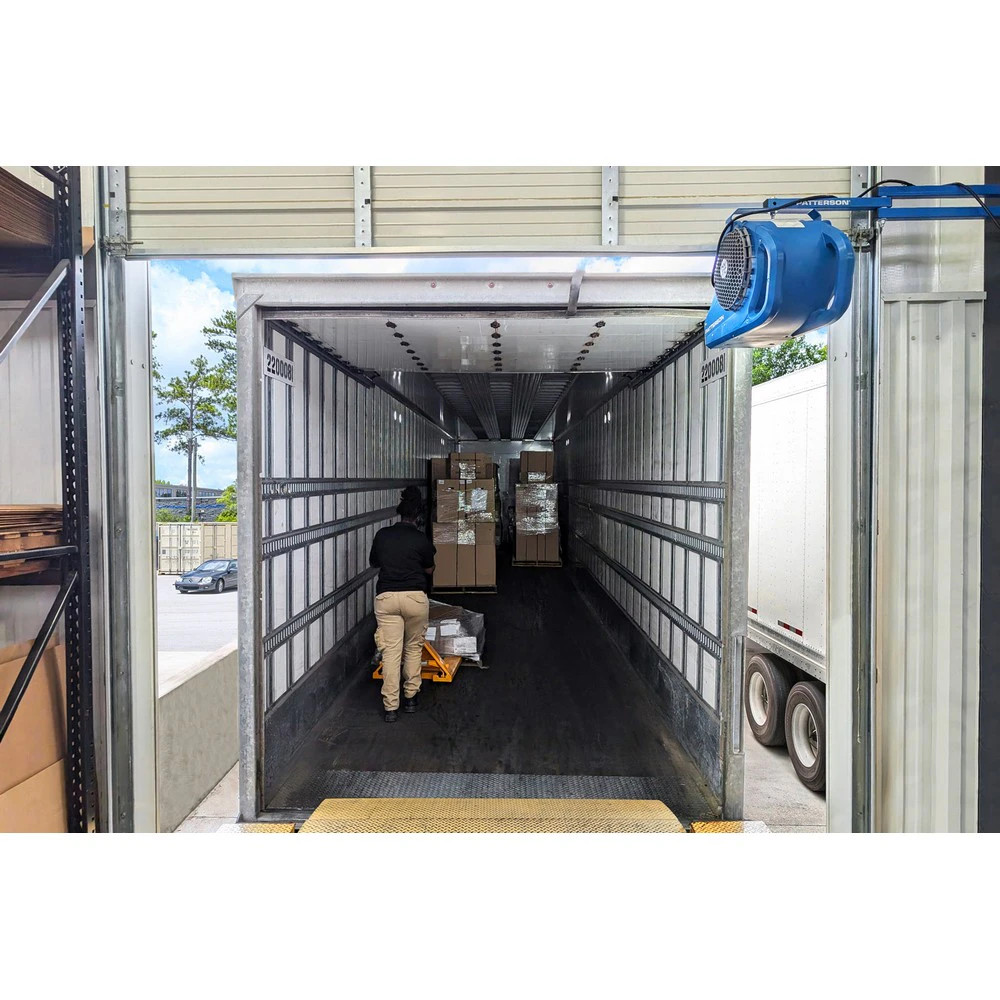

The Patterson FHVTCC-IDL-SWITCH-L-MOUNT is a high-velocity dock fan designed to purge air from loading dock trailers quickly, helping to reduce heat and improve comfort during manual trailer operations. This model centers on a compact footprint and a robust blower assembly intended to deliver a powerful airflow without occupying excessive vertical space at the dock door. When equipped with integrated 15-watt LED dock lights and a built-in switch to control both power and lighting, it provides a centralized, space-saving solution for trailer cooling and visibility at the point of use.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integrated 15W LED Dock Light (optional)
- High Impact Polypropylene Housing
- Continuous Duty with 1075 RPM
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
