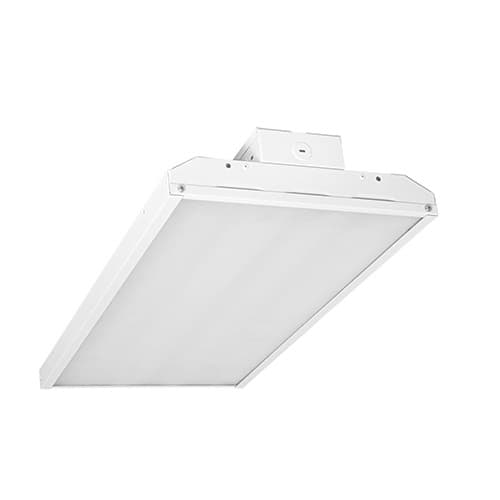

TCP HB21000150 is a high-efficiency linear LED high bay designed to replace 250W or 400W HID fixtures in commercial and industrial spaces. Delivering 27,500 lumens from a 210W LED array, this fixture provides a bright, uniform light output suitable for warehouses, manufacturing floors, and other tall-ceiling applications. The design uses a post-painted steel frame with rounded edge corners and a wide beam spread from an angled LED layout to achieve clean cut-off, reducing glare and light spill while maintaining effective illumination in large areas. It is hardwired and dimmable, supporting 120V-277V operation to accommodate different electrical installations, and it carries a DLC Premium certification to help with energy-efficiency incentives where available.
Constructed with durable steel and a compact footprint of approximately 23.8 inches long, 3.8 inches wide, and 17.5 inches high, the unit weighs around 10 pounds. The fixture is listed for a wide operating temperature range (-4 to 122 degrees Fahrenheit), enabling reliable performance in varied climates. Standard accessories include two T-hang hangers, five-foot jack chains, a hub mount kit for conduit or stem mounting, and a six-foot pre-wired cord, facilitating straightforward installation and mounting in new or retrofit projects. Optional configurations are available, such as battery backup or motion sensors, and line dimming provides flexibility to tune lighting levels as conditions require.
For buyers evaluating retrofits, this TCP LED high bay offers a 210W LED solution with an estimated 600W HID equivalent, reducing energy consumption while maintaining lumen output. Its IP65 rating makes it suitable for damp or otherwise challenging environments where moisture and dust exposure are concerns. As with all lighting upgrades, confirm compatibility with existing control systems and electrical infrastructure, and note that product availability may impact lead times and returns policy.
Features:
- 210W LED linear high bay for 400W HID retrofit
- 27500 lm; 5000K color temperature
- IP65 rated; durable steel construction
- Line dimming; optional battery backup or motion sensors
- Includes hanging hardware and pre-wired cord
- Dimensions: 23.8in L x 3.8in W x 17.5in H
- Wattage equivalent: 600W HID
- Part Number:
- HB21000150
- Certificate:
- DLC Premium
- Color / Finish:
- White
- Color Temperature:
- 5000K
- Connection Type:
- Hardwired
- Dimmable:
- Yes
- Fixture Type:
- Linear
- IP Rating:
- IP65
- Lumens:
- 27500 lm
- Material:
- Steel
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 210W
- Wattage Equivalent:
- 600W MH
- Weight:
- 10.00 lb
- UPC:
- 819816020153
- Package Size:
- Each
