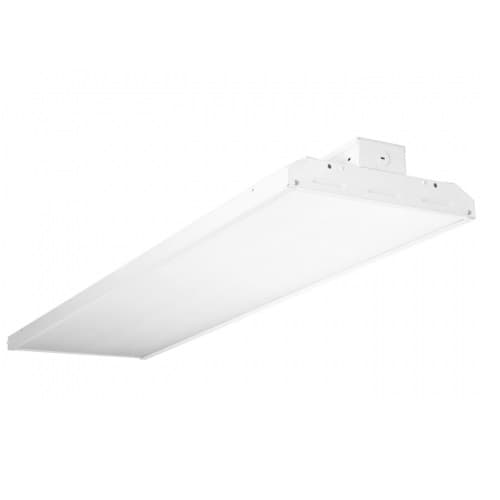

The TCP HB10500150 is an LED Linear High Bay designed to replace higher-wrawattage HID fixtures in commercial and industrial spaces. This 105W LED unit delivers a bright, broad 13500 lumens output with a 5000K color temperature, offering a suitable daylight-like appearance for warehouses, manufacturing floors, and other tall-ceiling environments. The fixture is dimmable and supports line dimming, enabling you to tailor illumination to task needs or energy-saving goals. Built to operate over a wide voltage range (120V–277V) and to withstand operating temperatures from -4 to 122 degrees Fahrenheit, it’s adaptable to diverse site conditions without requiring a separate driver or transformer changes.
The housing is a post-painted steel frame with clean, rounded edges and a pressed construction that minimizes scalloping and provides durability in busy facilities. The LED engine is paired with a no-fruss style, wide beam spread resulting from the angled LED design, which helps achieve a clean light cutoff and reduces spill beyond the target area. The unit ships with essential mounting hardware, including two hangers, a 5 ft. chain, a hub mount kit for conduit/stem mounting, and a 6 ft. pre-wired cord, simplifying installation in new builds or retrofits.
This TCP LED High Bay is positioned as a direct retrofit for 250W or 400W HID systems, aligning with facility upgrade strategies that aim to maintain lighting quality while reducing energy consumption. It is listed for damp locations and carries a 5-year warranty, underscoring its intended use in indoor environments that may experience humidity or occasional moisture exposure. When planning a retrofit, verify mounting compatibility (conduit/stem options), electrical supply, and dimming control needs to ensure that this fixture integrates smoothly with existing or planned controls and infrastructure.
Features:
- Includes: 2 Tong hangers, 5ft. jack chains, hub mount kit for .75in conduit/stem, and 6ft pre-wired cord
- Line dimming; optional battery backup or motion sensors available
- Wide beam spread from angled LED design for clean cut off
- Equivalent to 250W HID; -4 to 122°F operating range
- Post-painted steel frame with rounded edge corners
- Dimensions: 23.8in L x 3.8in W x 12.6in H
- Part Number:
- HB10500150
- Certificate:
- cUL/UL Listed, Damp Location
- Color / Finish:
- White
- Color Temperature:
- 5000K
- Dimmable:
- Yes
- Life Hours:
- 50000
- Lumens:
- 13500 Lm
- Material:
- Steel
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 105W
- Wattage Equivalent:
- 250W MH
- Weight:
- 10.00 lb
- ASIN:
- B07B9KMQR7
- UPC:
- 819816020139
- Package Size:
- Each
