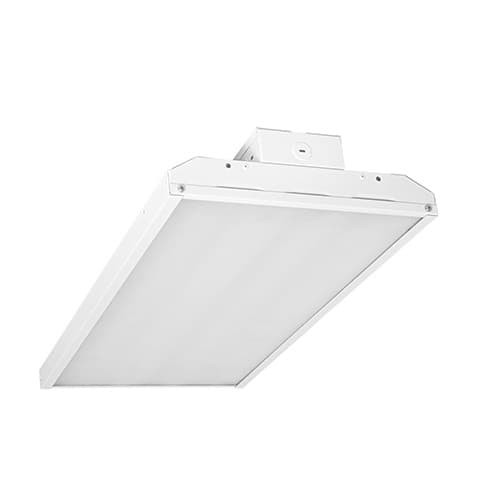

TCP HB21000140 210W LED Linear High Bay, 400W HID Retrofit, 0-10V Dimmable, 27500 lm, 120V-277V, 4100K

The TCP HB21000140 is a high-output LED linear high bay designed to replace traditional 250W or 400W HID fixtures while operating on 120V–277V. With a measured output of 27,500 lumens at a color temperature of 4100K, this fixture provides a bright, neutral white light suitable for industrial and commercial spaces. The unit is dimmable via a 0–10V control and is offered in configurations that can include optional battery backup or motion sensor options, depending on the installation needs. The housing is a post-painted steel frame featuring a clean silhouette with no scalloping, riveted construction, and rounded edge corners, which can help reduce maintenance concerns and promote a durable finish in harsh environments.

Key construction details include a robust steel frame and an integrated hardwired connection, with dimensions of 23.8 inches in length, 3.8 inches in width, and 17.5 inches in height. The fixture ships as a complete package with mounting hardware, including two Hang hangers, five-foot jack chains, a hub mount kit for conduit or stem mounting, and a six-foot pre-wired cord, supporting straightforward installation in many industrial settings. Its design emphasizes a wide beam spread through an angled LED arrangement to achieve clean cut-off, helping illuminate large areas with fewer shadows.

This TCP LED linear high bay is listed under cUL/UL and DLC Premium, reflecting compliance with recognized safety and performance standards for luminaires in commercial and industrial facilities. It is rated for a wide operating temperature range of -4 to 122 degrees Fahrenheit and uses a 210W LED source to deliver 27500 lumens. The unit’s mounting options and the included hardware facilitate flexible installation, while the availability of dimming and optional accessories allows for tailored control. Note that product availability and lead times may vary, and returns or exchanges are not eligible for this item per manufacturer notification.

Features:

• Includes: 2 tong hangers, 5 ft. jack chains, hub mount kit for .75 in conduit/stem, 6 ft. pre-wired cord
• 0-10V dimmable for adjustable light levels
• Hardwired connection; works on 120V-277V
• 27500 lumens from a 210W LED source
• 4100K color temperature for neutral white illumination
• Wide beam with clean cut off from angled LED design
• Post-painted steel frame with rounded edge corners
