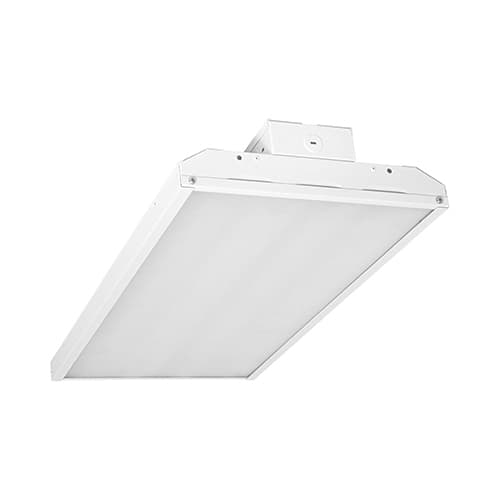

TCP HB15000150 150W 1x2 LED Linear High Bay, 400W HID Retrofit, Dimmable, 18000 lm, 120V-277V, 5000K

TCP HB15000150 is a 150W LED linear high bay designed to replace 250W–400W HID fixtures, delivering up to 18,000 lumens at a 5000K daylight white color temperature. The fixture is wired for universal voltage operation from 120V to 277V and is built to operate in demanding industrial spaces, with an IP65 rating for protection against dust and water jets, making it suitable for indoor, damp environments. It arrives ready to install with mounting hardware included and does not require a traditional ballast or l the LED array is integrated, and the unit supports line-dimming with optional battery backup or motion sensor configurations. The post-painted steel frame features clean, rounded corners and a robust construction that minimizes scalloping and riveted joints, contributing to long-term durability in harsh settings.

This model provides a wide beam spread due to its angled LED design, enabling a clean light cut-off and improved coverage across large areas. It includes practical mounting and connection accessories: two hangers, a 5 ft. chain, a hub-mount kit for conduit/stem mounting, and a 6 ft. pre-wired cord, simplifying installation in retrofit or new-build projects. With a DLC Premium certification, this fixture meets performance and efficiency criteria commonly required for facility retrofits and rebate programs. The unit is designed for continuous operation in a broad temperature range from -4 to 122 degrees Fahrenheit and is suitable for direct hardwired installations in commercial or industrial settings.

Ideal use cases include warehouse aisles, manufacturing floors, and high-bay spaces where high lumens per watt and straightforward maintenance are priorities. Consider your site’s voltage, dimming needs, and whether you may benefit from the optional battery backup or motion sensing configurations. The product’s weight, dimensions, and mounting hardware should be matched to your mounting points and ceiling structure to ensure secure installation and alignment.

Features:

• Includes: 2 Tong hangers, 5 ft. jack chains, hub mount kit for 0.75 in conduit/stem mount, and 6 ft. pre-wired cord
• Ready to function right out of the box; no bulbs required
• Line dimming compatible; optional battery backup or motion sensors
• Wide beam with clean cut off due to angled LED design
• 250 or 400W HID equivalent performance; operates from -4 to 122°F
• Post painted steel frame with rounded edge corners
• Dimensions: 23.8 in (L) x 3.8 in (W) x 12.6 in (H)
