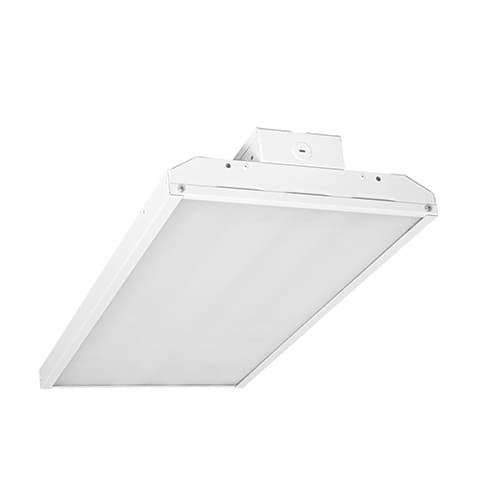

TCP HB21000250 is a 210W linear high bay LED fixture designed to replace higher-wattage HID lighting in industrial and commercial spaces. It delivers a claimed 27,500 lumens with a 5000K color temperature and is dimmable, suitable for hardwired installations across 347V–480V systems. The design is a steel post-painted frame with clean edge corners and an angled LED array that provides a wide beam with a defined cut-off, helping to minimize stray light. The fixture is positioned as a 600W HID retrofit, offering an energy-efficient alternative without sacrificing lumen output in large, high-ceiling environments.
Key construction features include a robust steel housing and a compact footprint measuring approximately 23.8 inches long, 3.8 inches wide, and 17.5 inches high. The unit is IP65 rated, supporting use in dusty or wet conditions typical of warehouses or manufacturing floors. It ships with integrated mounting and suspension hardware, including two pendant hangers, five-foot chains, a hub-mount kit compatible with 0.75-inch conduit or stem mounts, and a six-foot pre-wired cord, facilitating flexible installation options. The fixture is designed for line dimming and offers optional battery backup or motion sensor configurations, enabling energy management and control strategies aligned with facility needs.
Applications commonly include warehouse aisles, production areas, and other large-space interiors where reliable, long-life lighting is essential. Compatibility notes indicate the light is intended for hardwired 347V–480V supply and is eligible for DLC Premium listing per the manufacturer data. Considerations for installation should account for ambient operating temperatures from -4 to 122 degrees Fahrenheit and the weight of about 10 pounds. The product carries a five-year warranty, reflecting TCP’s confidence in its durability for industrial settings.
Features:
- 27500 lm at 5000K for high-efficiency illumination
- 210W LED high bay replacing 600W HID
- 347V–480V hardwired operation, DLC Premium
- Line dimming with optional battery backup or motion sensor
- IP65-rated enclosure with steel frame and rounded edge corners
- Includes mounting hardware: 2 hangers, 5 ft. chains, hub mount kit, 6 ft. cord
- Dimensions: 23.8 in L x 3.8 in W x 17.5 in H; weight 10 lb
- Part Number:
- HB21000250
- Certificate:
- DLC Premium
- Color / Finish:
- White
- Color Temperature:
- 5000K
- Connection Type:
- Hardwired
- Dimmable:
- Yes
- Fixture Type:
- Linear
- IP Rating:
- IP65
- Lumens:
- 27500 lm
- Material:
- Steel
- Maximum Voltage:
- 347V-480V
- Warranty:
- 5 Yr
- Wattage:
- 210W
- Wattage Equivalent:
- 600W MH
- Weight:
- 10.00 lb
- UPC:
- 819816025134
- Package Size:
- Each
