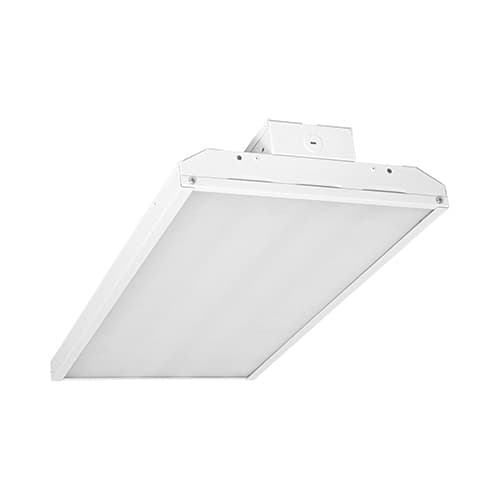

TCP HB15000140 150W 1x2 LED Linear High Bay, 400W HID Retrofit, Dimmable, 18000 lm, 120V-277V, 4000K

The TCP HB15000140 is a 150W LED linear high bay designed to replace traditional 250W or 400W HID fixtures while delivering a bright, broad-covered output suitable for industrial and warehouse environments. With a light output of 18,000 lumens and a 4000K color temperature, this fixture aims to provide a clear, neutral-white field of view that supports safe, productive work areas. It is dimmable and compatible with 120V-277V electrical systems, offering flexible integration into existing electrical infrastructure. The fixture is built with a post-painted steel frame and features rounded edge corners, contributing to a sturdy, durable appearance suitable for mounting in demanding spaces.

Key construction details include a steel housing with a wide beam spread achieved through an angled LED design, which helps create clean cut-off and uniform illumination across the work area. The unit is IP65-rated for dust and water resistance, making it suitable for environments where needs include protection from environmental factors. The fixture ships with practical mounting accessories such as two T-hangers, a 5 ft. chain, a hub mount kit for .75 in conduit/stem, and a 6 ft. pre-wired cord, facilitating straightforward installation in suspended or mounted configurations.

This TCP high bay is offered in multiple configurations, including standard, emergency battery backup, and motion sensor options, to support varying facility requirements. It uses a hardwired connection and is rated for operation across a wide temperature range of -4 to 122 degrees Fahrenheit. When selecting this model, consider the DLC Premium qualification, the 15 0W power rating with a 120V-277V input, and the 5-year warranty, which collectively influence long-term performance and total cost of ownership. The fixture’s dimensions are 23.8 inches long, 3.8 inches wide, and 12.6 inches high, with a weight of approximately 10 pounds, contributing to planning around mounting clearances and handling during installation.

Features:

• 18000 lm output for high-bay illumination
• 4000K color temperature for neutral, bright light
• Dimmable with line dimming capability
• IP65 rated for dust and water resistance
• Includes mounting hardware: 2 hangers, 5 ft chains, hub mount kit, 6 ft pre-wired cord
• Wide beam with angled LED design for clean cut off
• 1x2 LED linear high bay; 150W input, 400W HID equivalent
