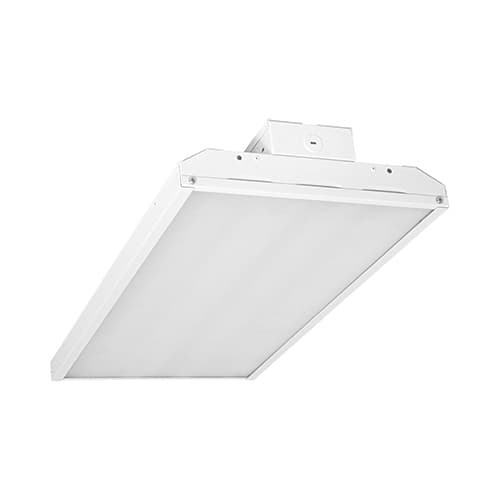

The TCP HB15000140LS1 is a 150-watt LED linear high bay designed to replace traditional HID fixtures in industrial and commercial spaces. With a 4000K color temperature and a high-output lumen package, this fixture provides a broad, efficient illumination suitable for warehouses, manufacturing floors, and large work areas. The unit is dimmable and wired for standard 120–277V service, offering flexibility for different control schemes and retrofit projects.
Constructed with a post-painted steel frame, the light emphasizes durability and clean construction, featuring a wide beam spread from its angled LEDs to deliver a well-defined light pattern and minimize glare. The design avoids scalloped edges and uses rounded corners for a tidy appearance, helping with ease of maintenance in demanding environments. The fixture lists a DLC Premium designation, indicating compatibility with certain utility rebates and quality standards for mid- to high-bay applications.
Included in the package are practical mounting and installation accessories: two hangers, a 5 ft. chain, a hub-mount kit compatible with .75 in conduit or stem mounting, and a 6 ft. pre-wired cord. The unit is hardwired and is IP65-rated, which helps protect the internal components from dust and water exposure in harsh spaces. It supports line dimming and can be configured with optional features such as battery backup or motion sensing to suit occupancy-driven or emergency lighting needs. The housing and mounting options make this fixture suitable for retrofit projects replacing 250W or 400W HID systems, with a compact 23.8 in L x 3.8 in W x 12.6 in H footprint and a weight around 10 lb.
Features:
- Includes: 2 Tong hangers, 5 ft jack chains, hub mount kit for .75 in conduit/stem, and 6 ft pre-wired cord
- Line dimming with optional battery backup or motion sensor
- Angled LED design for wide beam and clean cut-off
- 250 or 400W HID equivalent, wide operating temp range
- Post-painted steel frame with rounded edge corners
- Dimensions: 23.8 in L x 3.8 in W x 12.6 in H
- Part Number:
- HB15000140LS1
- Certificate:
- DLC Premium
- Color / Finish:
- White
- Color Temperature:
- 4000K
- Connection Type:
- Hardwired
- Dimmable:
- Yes
- Fixture Type:
- Linear
- IP Rating:
- IP65
- Lumens:
- 18000 lm
- Material:
- Steel
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 150W
- Wattage Equivalent:
- 400W MH
- Weight:
- 10.00 lb
- UPC:
- 762148107187
- Package Size:
- Each
