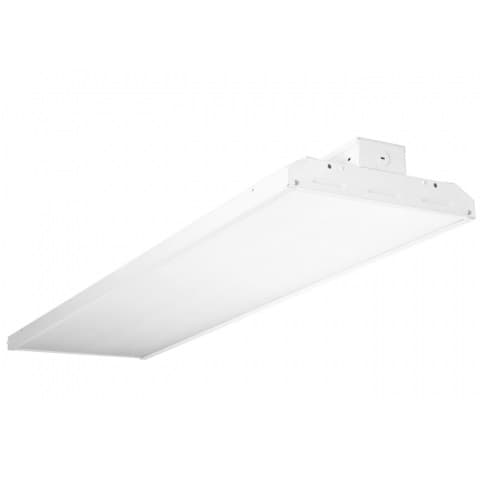

The TCP HB10500140 is a linear LED high bay designed to replace traditional 250W or 400W HID lighting in industrial and commercial settings. It provides a bright, energy-efficient alternative with a documented output of 13,000 lumens and a 4,000 Kelvin color temperature for a neutral white appearance. The fixture is wired for line voltage and supports dimming, with a rated operating range of 120V–277V, making it suitable for a variety of electrical systems.
Constructed with a post-painted steel frame, the unit features a clean, rounded-edge profile and a robust build intended for demanding environments. The design includes an angled LED configuration that helps achieve a wide beam spread with a clean cut-off, contributing to more uniform area illumination while reducing glare. The temperature operating window is listed as -4 to 122 degrees Fahrenheit, indicating suitability for a range of storage or manufacturing environments.
Included mounting and accessories ensure flexible installation: two hangers, a 5 ft. jack chain, a hub mount kit for 0.75 in conduit or stem mounting, and a 6 ft. pre-wired cord. The fixture is DLC Premium listed and is available in white, with a compact footprint of approximately 23.8 inches long, 3.8 inches wide, and 12.6 inches high. This product supports additional options such as an emergency battery backup or motion sensors, and it is rated as dimmable for compatible control systems. Consider the housing and mounting hardware when planning installation to ensure compatibility with your ceiling structure and electrical distribution.
Features:
- Includes: 2 Tong hangers, 5 ft. jack chains, hub mount kit for .75 in conduit/stem, and 6 ft. pre-wired cord
- Line dimming with optional battery backup or motion sensors
- Wide beam angle spread from angled LED design for clean cut-off
- 105W LED high bay, 13000 lm, 4000K, 120V-277V
- Durable post-painted steel frame with rounded edge corners
- IP65 rated for protection against dust and water jets
- Dimensions: 23.8 in (L) x 3.8 in (W) x 12.6 in (H)
- Part Number:
- HB10500140
- Certificate:
- DLC Premium
- Color / Finish:
- White
- Color Temperature:
- 4000K
- Connection Type:
- Hardwired
- Dimmable:
- Yes
- Fixture Type:
- Linear
- IP Rating:
- IP65
- Lumens:
- 13000 lm
- Material:
- Steel
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 105W
- Wattage Equivalent:
- 250W MH
- Weight:
- 10.00 lb
- ASIN:
- B07B9GDRM9
- UPC:
- 819816020122
- Package Size:
- Each
