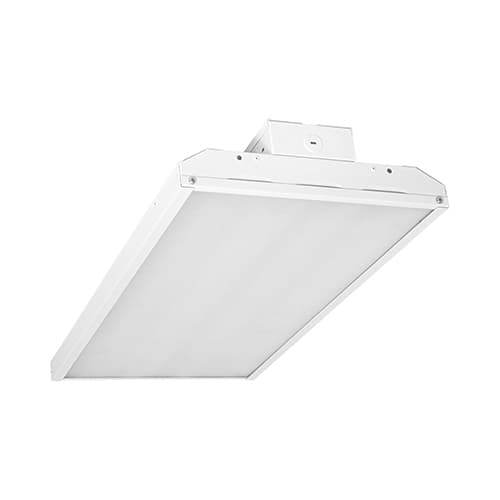

The TCP HB15000140B is a 150W LED linear high bay designed to replace traditional 250W or 400W HID fixtures in industrial, warehouse, or commercial environments. With an integrated hardwired connection and dimmable operation, this fixture delivers efficient, long-lasting illumination while offering the option for battery backup or motion sensing to support safety and reliability in our facilities. The LED configuration provides a broad, even light distribution suitable for high bay applications, reducing dark spots and improving visibility across wide areas.
Constructed with a post-painted steel frame, the unit features a clean, durable profile with rounded edge corners and no scalloping, reinforced by a riveted assembly to withstand ongoing facility use. The housing includes mounting and hanging hardware—2 hangers, 5 ft. jack chains, a hub mount kit for conduit or stem mounting, and a 6 ft. pre-wired cord—supporting straightforward installation in a variety of ceiling setups. The fixture is rated IP65 for dust and water resistance in challenging environments, and it operates within a broad temperature range of -4 to 122 degrees Fahrenheit, making it suitable for many industrial climates.
Key specifications include 18000 lumens of brightness, a color temperature of 4000K for a neutral white light, and compatibility with 120V–277V supply. This TCP lighting option is available in a DLC Premium category, symbolizing its efficiency and compatibility with many utility rebate programs. Dimmable operation enables integration with compatible controls, and options for battery backup or motion sensors can be selected to tailor performance to your space. The unit weighs 10 lb and is backed by a five-year warranty, reflecting TCP’s commitment to dependable, long-term lighting performance.
Features:
- Includes: 2 Tong hangers, 5 ft. jack chains, hub mount kit for .75 in conduit/stem, and 6 ft. pre-wired cord
- Line dimming compatible; optional battery backup or motion sensors available
- Wide beam spread with angled LED design for clean cut off
- 4000K color temperature; 18000 lm output; 150W LED; 400W HID equivalent
- Post-painted steel frame with rounded edge corners
- IP65 rated; operating temperature -4 to 122°F
- Dimensions: 23.8 in L × 3.8 in W × 12.6 in H; weight 10.00 lb
- Part Number:
- HB15000140B
- Certificate:
- DLC Premium
- Color / Finish:
- White
- Color Temperature:
- 4000K
- Connection Type:
- Hardwired
- Dimmable:
- Yes
- Fixture Type:
- Linear
- IP Rating:
- IP65
- Lumens:
- 18000 lm
- Material:
- Steel
- Maximum Voltage:
- 120V-277V
- Warranty:
- 5 Yr
- Wattage:
- 150W
- Wattage Equivalent:
- 400W MH
- Weight:
- 10.00 lb
- UPC:
- 762148152286
- Package Size:
- Each
