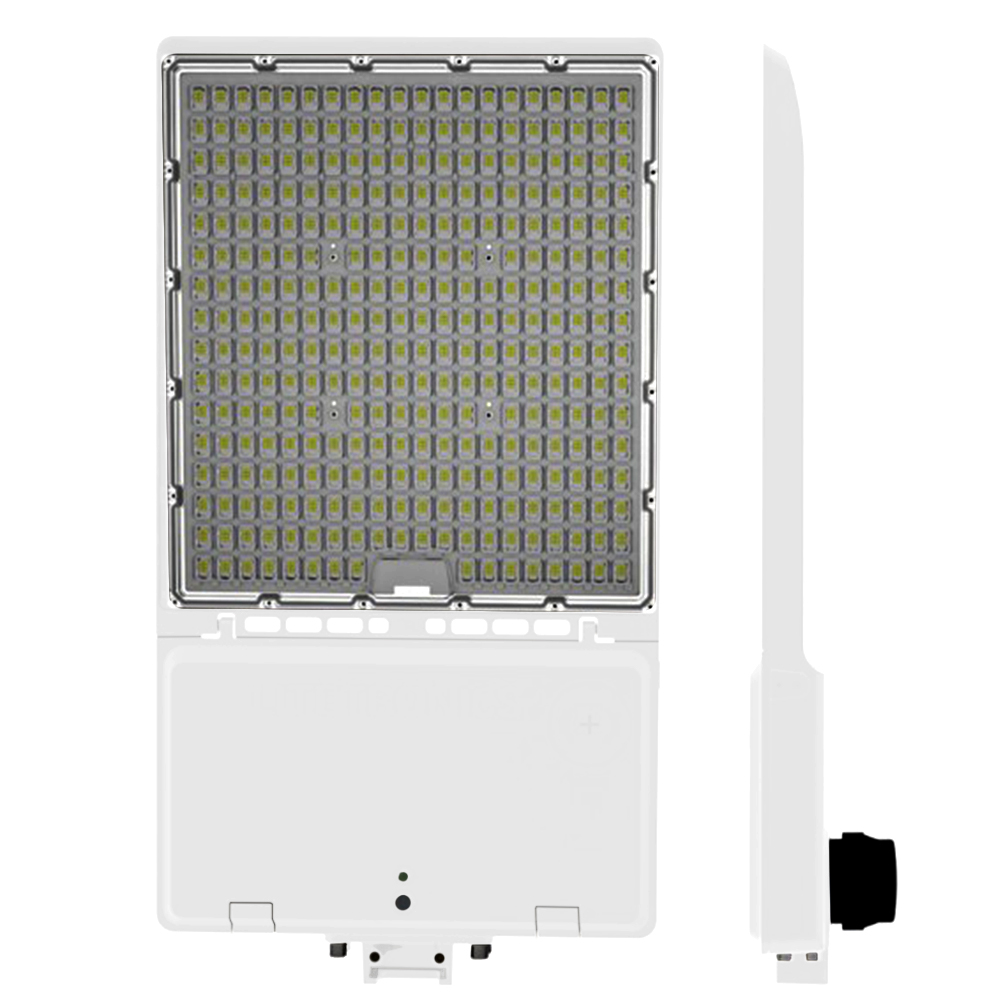

Litetronics ALP150W LED Area Light Pro is an all-in-one outdoor lighting fixture designed to simplify installation and inventory for exterior lighting projects. This model supports 120–480 V operation and offers field-selectable wattages and color temperatures, allowing a single fixture to cover multiple lumen and color needs on a job site. Its universal driver, rated at 100,000 hours, plus a stated 100,000-hour life and a 10-year warranty, provides long-term reliability for outdoor installations such as parking lots, campuses, industrial yards, and retail spaces. The design includes a patented Area Light Pro housing with a Quick Slide mounting system to streamline mounting, as well as integrated controls compatibility options like a pluggable sensor socket and LiteSmart mobile app compatibility for connected lighting capabilities. The fixture is finished in matte black and designed for durability in outdoor environments, with features such as a high color rendering (CRI >80) and beam options (Type II, III, IV, V selectable) to tailor distribution to site geometry and code requirements.
In practical terms, this ALP150W supports a broad operating range and robust electrical protection, including a 20 kV surge protection option and a 120–480 V driver that reduces the need for multiple SKUs on large projects. It is listed as TAA compliant, with a power factor around .95 and a THD below 20%, which translates to efficient operation across varied voltages and loads. The luminaire delivers up to 24,000–24,000 lumens depending on configuration and maintains performance in outdoor ambient conditions from -40°F to 122°F (-40°C to 50°C). Optional accessories such as glare shields, slipfitters, and 3-pin photo controls can help meet local codes and project specifications, while standard features like a 3-pin shorting cap and Smart Node readiness provide future-proofing for networked or sensor-based control schemes.
Features:
- All-in-one 120-480V design
- Selectable Distribution: Type II, III, IV, V
- Field-Selectable Wattages & CCT
- 100,000-Hour Rated Life
- 10-Year Warranty
- Smart Node Ready with Optional 3-pin Receptacle
- TAA Compliant
- Brand:
- LED Area Lights
- Watts:
- 100 | 125 | 150
- Voltage:
- 120-480V
- Average Rated Life:
- 100,000 hrs.
- Luminaire Lumens:
- 16000 | 20000 | 24000
- CRI:
- >80
- Color Temp:
- 3000K | 4000K | 5000K
- Finish:
- Matte Powder Coat
- Operating Temp:
- -40F to 122°F (-40 Degrees C to 50 Degrees C)
- Power Factor:
- >.95
- Warranty:
- 5 years
- Beam Angle:
- 155°
- THD:
- <20%
- Usage:
- Outdoor
- Lumens/Watt:
- 140
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
