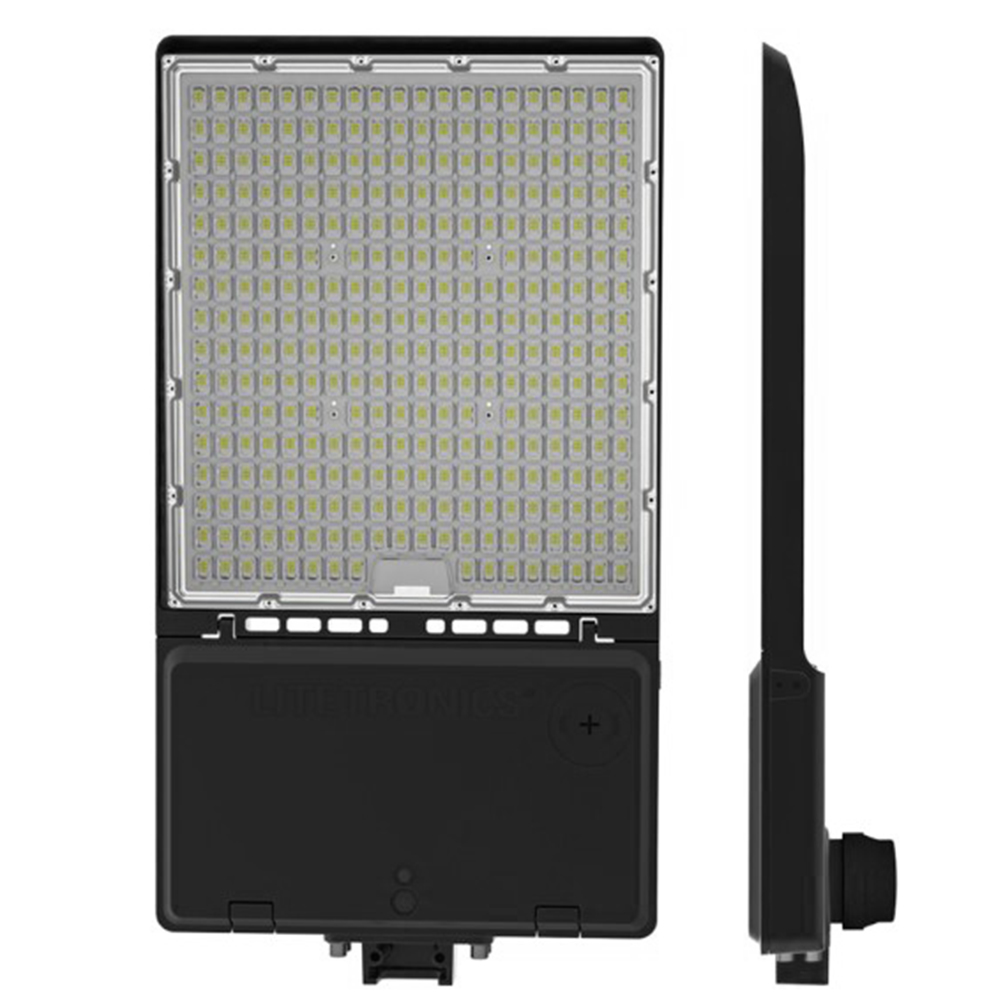

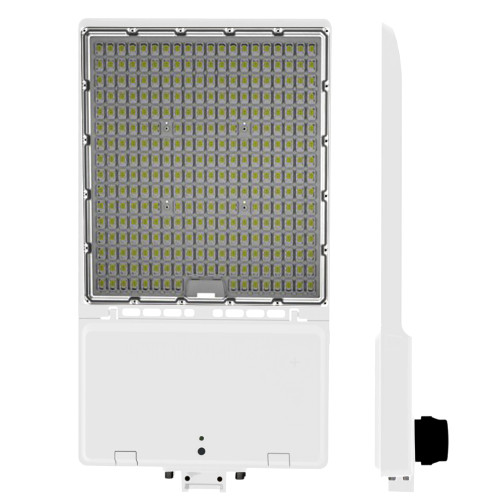

Litetronics ALP150B is a high-output LED area light designed for outdoor applications, offering a single, all-in-one driver with a wide input range of 120–480V and field-selectable wattages and color temperatures. This model is built to replace multiple traditional fixtures with one versatile luminaire, helping simplify inventory and installation. The Area Light Pro design features a Quick Slide mounting system that allows fast, tool-efficient mounting by sliding the fixture into its mount, which can save time on installation and maintenance. It also accommodates smart-control options through a 3-pin shorting cap standard configuration and an optional 7-pin receptacle, plus a pluggable sensor socket for integrated control strategies. With a 100,000-hour rated life and a 10-year warranty, it aims to reduce lifecycle costs and downtime in outdoor settings.
Constructed for durable exterior service, the ALP150B provides high lumen output across multiple distributions and color temperatures, aligning with typical outdoor lighting requirements for parking lots, campuses, industrial yards, and retail spaces. The fixture offers Type II, III, IV, and V distribution selectability, enabling designers to tailor light spread to site geometry and aim for code-consistent illumination. Its black matte powder coat finish contributes a low-gloss, vandal-resistant surface, while a high power factor and favorable THD support efficient operation in varying electrical environments. The luminaire is rated for outdoor use and damp locations, and it is compatible with LiteSmart mobile app ecosystems and optional accessories like glare shields, slipfitters, pole tenons, and trunnion mounts to address site-specific constraints.
In operation, the ALP150B covers broad applications from concentrated area lighting to wider area illumination, with lumen output ranging to support different design criteria. When choosing configurations, customers should consider the selectable wattage and CCT to meet project specs and energy targets, as well as the availability of optional controls and mounting accessories to ensure proper fit and performance. The product is designed to meet practical installation and maintenance needs in harsh outdoor environments, while keeping future adaptability in mind through its modular control options and mounting versatility.
Features:
- All-in-one 120-480V operation
- Type II, III, IV, V selectable distributions
- Field selectable wattages & CCT
- 10-Year Warranty
- 100,000-hour rated life
- Pluggable sensor socket; Smart Node ready
- TAA compliant
- Brand:
- LED Area Lights
- Watts:
- 100| 125 | 150
- Voltage:
- 120-480V
- Average Rated Life:
- 100,000 hrs.
- Luminaire Lumens:
- 16000 | 20000 | 24000
- CRI:
- >80
- Color Temp:
- 3000K | 4000K | 5000K
- Finish:
- Matte Powder Coat
- Operating Temp:
- -40F to 122°F (-40 Degrees C to 50 Degrees C)
- Power Factor:
- >.95
- Warranty:
- 5 years
- Beam Angle:
- 155°
- THD:
- <20%
- Usage:
- Outdoor
- Lumens/Watt:
- 140
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
