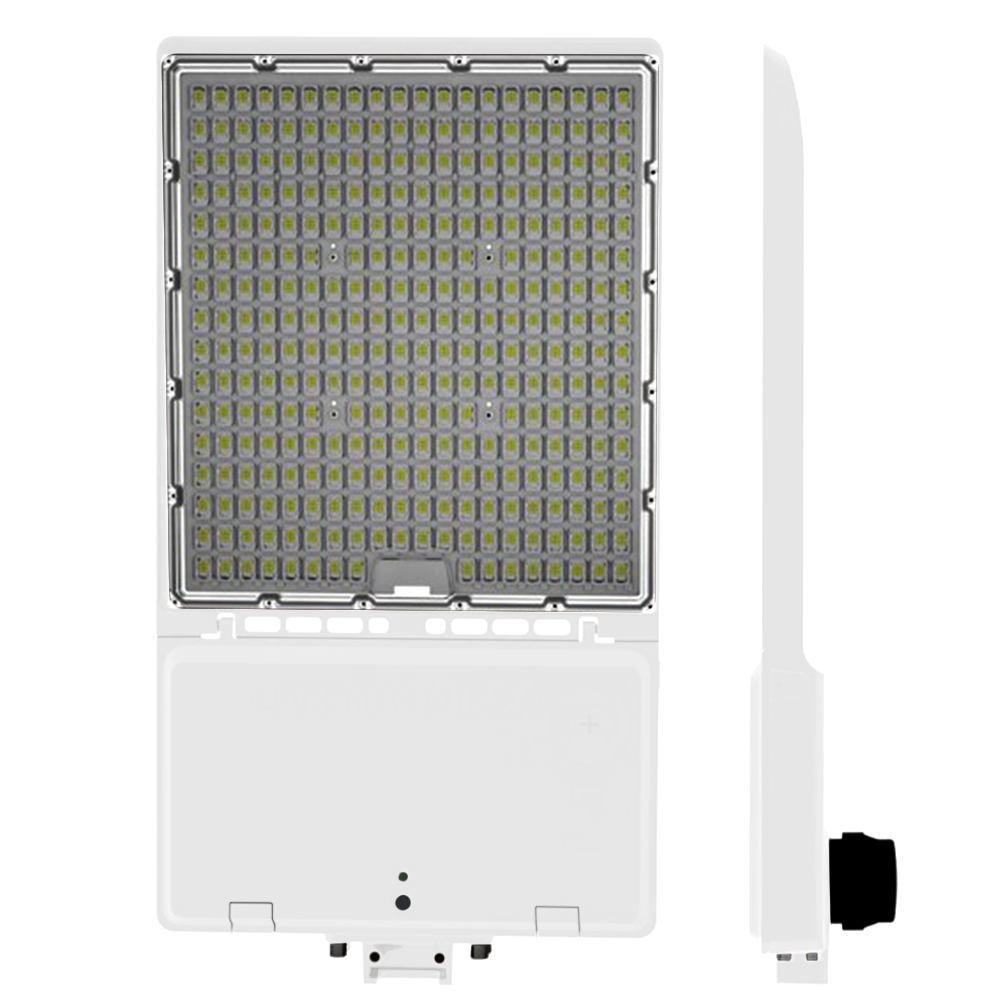

The Litetronics ALP250W is an outdoor LED area light designed to reduce installation complexity and inventory needs with its all-in-one 120–480V driver and field-selectable options. This Area Light Pro series fixture supports multiple wattages (175, 200, 250W) and color temperatures, enabling a single model to cover a range of site requirements. A patented Area Light Pro design, combined with Quick Slide mounting, allows the fixture to slide into its mount for faster installation, which can translate to time savings on projects. The luminaire provides high efficacy and long life (up to 100,000 hours) with a rated lumen output aligned to its wattage tiers, and it is intended for outdoor use with a robust operating temperature range to handle variable field conditions.
Key construction and features include a matte powder-coated finish and a high-quality, broad 155° beam distribution ideal for parking lots, campuses, industrial yards, and retail spaces. The fixture is designed with a 10-year warranty and a high power factor, aiming to deliver reliable performance with reduced energy and maintenance costs. It supports smart controls through a plug-and-play arrangement and is compatible with LiteSmart mobile app workflows, enabling remote management and configuration when used with appropriate accessories. Optional components such as glare shields, various mountings (slipfitters, pole tenons, trunnions), a 3-pin sensor or photo-control setup, and a 3-pin shorting cap provide adaptable configurations to meet code requirements and site-specific needs.
This model is designed for outdoor environments and damp-location suitability, offering a practical option for sites requiring versatile distributions (Type II–V), color temperature options, and integration with smart-control ecosystems. When selecting hardware and control options, consider project-specific needs such as mounting, glare control requirements, and power coordination across the 120–480V range to ensure consistent performance and compliant installation.
Features:
- All-in-one 120-480V driver
- Type II, III, IV, V selectable distribution
- Field selectable wattages & CCT
- 100,000-hour rated life
- 10-year warranty
- Pluggable sensor socket; LiteSmart compatible
- Optional glare shields and mounting accessories
- Brand:
- LED Area Lights
- Watts:
- 175 | 200 | 250
- Voltage:
- 120-480V
- Average Rated Life:
- 100,000 hrs.
- Luminaire Lumens:
- 28000 | 32000 | 40000
- CRI:
- >80
- Color Temp:
- 3000K | 4000K | 5000K
- Finish:
- Matte Powder Coat
- Operating Temp:
- -40F to 122°F (-40 Degrees C to 50 Degrees C)
- Power Factor:
- >.95
- Warranty:
- 5 years
- Beam Angle:
- 155°
- THD:
- <20%
- Usage:
- Outdoor
- Lumens/Watt:
- 160
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
