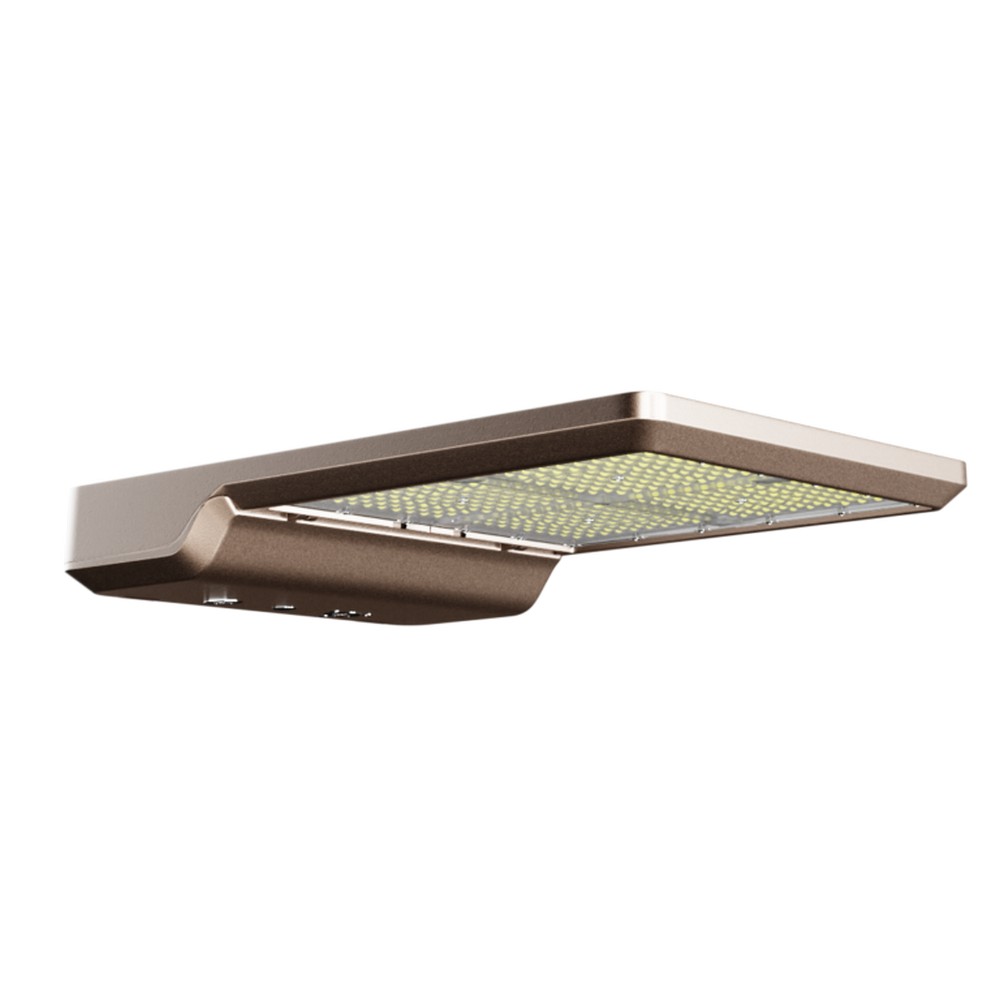

Litetronics AL1503HV 277-480V 150W LED Area Light

Litetronics AL1503HV 277-480V 150W LED Area Light
Litetronics
SKU:
AL1503HV
$276.48
/ Each
Weight:
6.00 LBS

Out of stock

The AL1503HV is a high-output LED area light designed for outdoor illumination with a wide operating voltage range of 277–480V. It delivers substantial lumen output while maintaining energy efficiency, offering multiple CCT options (3000K, 4000K, and 5000K) and a 150W light source to suit various site requirements. Built for wet and outdoor locations, this luminaire is finished in a matte powder coat for durability in harsh environments and is suitable for damp locations when mounted appropriately. The design supports a broad beam spread (approximately 155 degrees) to cover large outdoor areas with fewer fixtures, helping to reduce installation complexity and overall storage of parts. With a typical life of 50,000 hours and a power factor around 0.95, this light is intended for long-term operation in commercial or industrial outdoor settings.

The product includes a standard shorting cap and a pluggable sensor socket, with additional options for sensor capability using PIR, microwave, or LiteSmart sensors to enable energy-saving controls. Compatibility with multiple distributions is noted, offering Type III distribution with other distributions available, which provides flexibility for aiming performance in different project layouts. The fixture’s lumen output varies by configuration, and the list price is tied to a 150W LED engine delivering a high lumen package that can meet the illumination needs of parking lots, walkways, or building perimeters.

In terms of practical use, this LED area light is designed for outdoor installations on structures or poles that receive power in the 277–480V range, helping to simplify electrical planning in mixed-voltage environments. The package quantity is listed as Each, and the unit carries a 5-year warranty. When specifying for a project, verify the desired CCT and distribution pattern, and consider sensor options if automatic controls are part of the project’s energy-management strategy. Appropriate maintenance includes periodic cleaning of the optical surface and ensuring a secure mounting as per manufacturer recommendations.

Features:

  • Outdoor rated and wet location capable
  • 277-480V input with 150W power rating
  • High efficiency with ~140 lm/W
  • Beam angle 155° for wide coverage
  • CRI 80 with color temperatures 3000K/4000K/5000K
  • Matte powder coat finish, -40°F to 122°F operating range
  • 50,000-hour average rated life, 5-year warranty

Brand:
LED Area Lights
Watts:
150
Voltage:
277-480V
Average Rated Life:
50,000 hrs.
Luminaire Lumens:
14,000 | 17,500 | 21,000
CRI:
80
Color Temp:
3000K | 4000K | 5000K
Finish:
Matte Powder Coat
Operating Temp:
-40F to 122°F (-40 Degrees C to 50 Degrees C)
Power Factor:
?.95
Warranty:
5 years
Beam Angle:
155°
THD:
? 20%
Usage:
Outdoor
Lumens/Watt:
140
Suitable for Damp Locations:
Yes
Package Size:
Each
