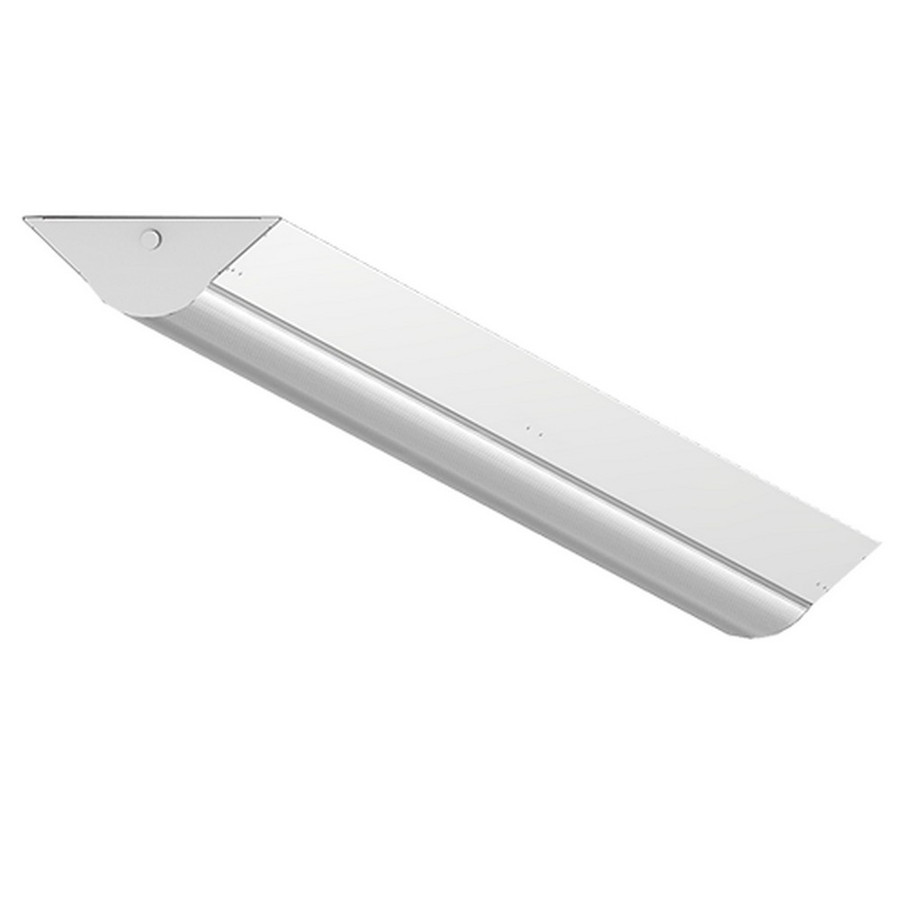

Name: ILP SQ8-8L-U-40-WB Curved Wide Base LED Wrap 4000K, 58 Watt, 7869 Lumens
Brand: ILP
SKU: SQ8-8L-U-40-WB
Price: 416.45 USD
Availability: InStock

ILP SQ8-8L-U-40-WB Curved Wide Base LED Wrap 4000K, 58 Watt, 7869 Lumens

ILP

SKU:

SQ8-8L-U-40-WB

$416.45

/ Each

Weight:

18.00 LBS

The ILP SQ8-8L-U-40-WB is a curved wide-base LED wrap fixture designed to cover existing footprints with a 12-inch wide base. Its slim, curved profile is paired with a frosted acrylic lens and an impact-resistant construction, all housed in a .040-inch pre-painted white aluminum housing for a clean, durable aesthetic. The fixture can be mounted on ceilings, walls, or suspended, offering flexible installation to suit various spaces such as offices, hallways, and corridors. It supports continuous run installations and provides versatile lighting control through multiple dimming and sensor options, allowing precise management of light levels for occupied and unoccupied spaces. With a 4000K color temperature in this model, it delivers a neutral, bright white light suitable for general-purpose illumination. The unit is designed for easy integration with a 0-10V dimmable driver and operates on a universal voltage range of 120V–277V, making it compatible with a wide range of electrical systems.

Technicals and compliance features contribute to reliable performance in both dry and damp environments. The fixture is ETL Damp Location rated and is qualified by the DesignLights Consortium as a high-performance luminaire, signaling efficiency and dependable operation. A 5-year warranty adds peace of mind for ongoing use in commercial and institutional settings. These characteristics, combined with the modular 58-watt output and 7,869 lumens at 135 lumens per watt, support versatile placement and energy-conscious lighting design while maintaining consistent color and brightness across runs.

Features:

12? wide base wrap to cover existing footprint
Sleek curved profile with frosted acrylic lens
.040? aluminum pre-painted white housing
Ceiling, wall or suspension mounting options
0-10V dimmable driver (100% – 5%)
120V-277V universal voltage
Dry & Damp location rated
5-year warranty
DesignLights Consortium Qualified Luminaire

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 58
Lumens:: 7869
Lumen Per Watt:: 135
CRI:: >80
Finish:: White
ETL Listed:: Yes
Operating Temperature Range:: -4°F to 113?F
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features does the ILP SQ8-8L-U-40-WB Curved Wide Base LED Wrap use?

The housing is .040-inch pre-painted white aluminum, and the fixture features a frosted acrylic lens with an impact-resistant construction.

What are the key technical specifications for this SKU (input voltage, color temperature, wattage, and lumens)?

It operates at 120-277V, 58 Watts, 4000K color temperature, and delivers 7,869 lumens (Lumen per Watt: 135).

What installation options and mounting methods are supported?

The fixture can be mounted on ceilings, walls, or suspended, and is suitable for continuous run installations.

Is this luminaire compatible with dimming and what are the dimming capabilities?

It features a 0-10V dimmable driver with dimming from 100% to 5%.

What environmental ratings and warranty are associated with this product?

It is rated for dry and damp locations and carries a 5-year warranty; it is ETL Damp Location Rated and DesignLights Consortium Qualified.

Spec Sheet

ILP SQ8-8L-U-40-WB Curved Wide Base LED Wrap 4000K, 58 Watt, 7869 Lumens

Features:

What materials and construction features does the ILP SQ8-8L-U-40-WB Curved Wide Base LED Wrap use?

What are the key technical specifications for this SKU (input voltage, color temperature, wattage, and lumens)?

What installation options and mounting methods are supported?

Is this luminaire compatible with dimming and what are the dimming capabilities?

What environmental ratings and warranty are associated with this product?
