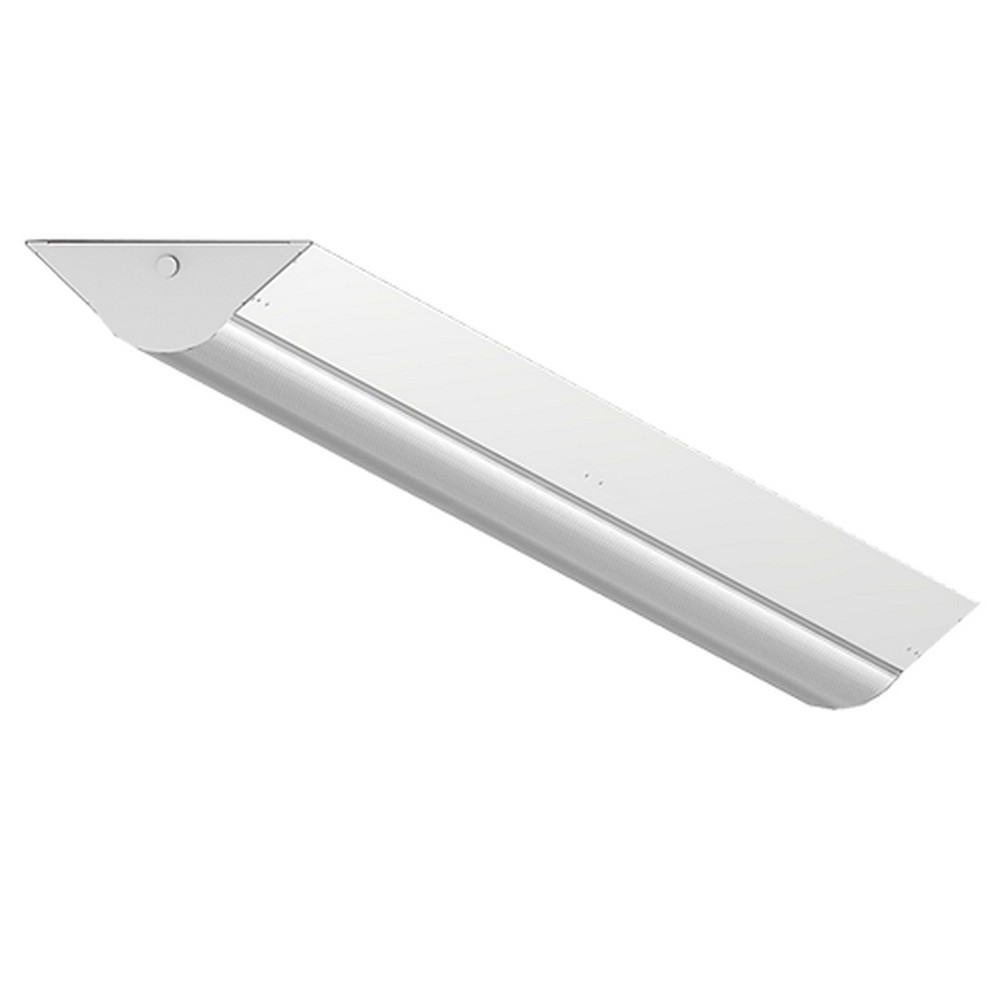

ILP SQ8-4L-U-40-WB Curved Wide Base LED Wrap 4000K, 32 Watt, 4665 Lumens

The ILP SQ8-4L-U-40-WB is a curved LED wrap fixture designed to cover existing footprints with a 12-inch wide base wrap and a frosted acrylic lens. Its housing is constructed from .040 inch pre-painted white aluminum, offering a slim, contemporary profile that can be mounted to ceilings, walls, or suspended for versatile installation. The unit is rated for dry and damp locations and is designed for continuous run applications, making it suitable for long, uninterrupted runs in commercial environments. A 0-10V dimmable driver provides precise light control from 100% down to 5%, with universal voltage operation from 120V to 277V to accommodate a range of electrical setups. The fixture is available in multiple correlated color temperatures, including 4000K, and is LED-driven to deliver 4665 lumens at a typical efficacy of 146 lumens per watt, with a color rendering index at or above 80. It carries ETL Damp Location listing and has earned designation as a DesignLights Consortium qualified luminaire, indicating compliance with high-performance lighting criteria for energy efficiency and lighting quality.

In practical terms, this luminaire is designed to replace or extend existing footprint areas without requiring a separate canopy or extensive remodeling. The curved profile and durable lens help distribute light evenly while resisting impact, which is beneficial in high-traffic or storage spaces. Its mounting flexibility—ceiling, wall, or suspension—supports various architectural layouts and retrofit scenarios. When selecting color temperature, 4000K provides a neutral white appropriate for general office and workspace environments, while the 100%–5% dimming and sensor options enable adaptive lighting controls for occupied and unoccupied spaces. The 5-year warranty and robust lifespan specifications further support maintenance planning in commercial facilities.

Features:

• 12" wide base curved wrap footprint
• Frosted acrylic impact-resistant lens
• 0.040" aluminum pre-painted white housing
• Ceiling, wall, or suspension mounting
• Multiple dimming & sensor options
• Continuous run suitable
• Color options: 3000K, 3500K, 4000K, 5000K
