Name: ILP SQ4-4L-U-40-WB Curved Wide Base LED Wrap 4000K, 29 Watt, 4174 Lumens
Brand: ILP
SKU: SQ4-4L-U-40-WB
Price: 229.83 USD
Availability: InStock

ILP SQ4-4L-U-40-WB Curved Wide Base LED Wrap 4000K, 29 Watt, 4174 Lumens

ILP

SKU:

SQ4-4L-U-40-WB

$229.83

/ Each

Weight:

12.00 LBS

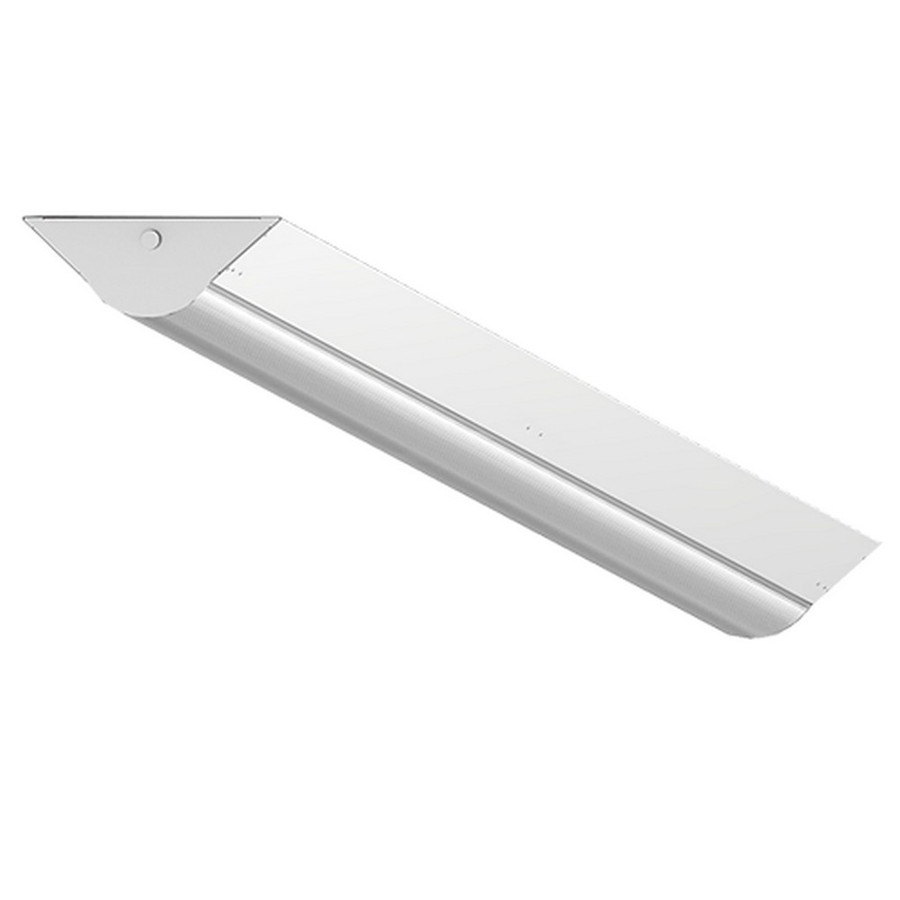

The ILP SQ4-4L-U-40-WB is a curved wrap lighting fixture designed to cover existing footprints with its 12-inch wide base. Its frosted acrylic lens provides an impact-resistant, diffuse illumination profile, while the .040-inch pre-painted white aluminum housing delivers a clean, modern appearance suitable for a variety of settings. The fixture supports versatile mounting options, including ceiling, wall, or suspension, enabling seamless integration into both new installations and retrofit projects. With a 29-watt LED system delivering 4,174 lumens at 4000K, this luminaire offers bright, neutral-white illumination and efficient performance suitable for general ambient lighting in commercial and industrial spaces.

Constructed for flexibility in operation, the SQ4-4L-U-40-WB includes multiple dimming and sensor options to tailor light levels for occupied versus unoccupied environments. It features a 0-10V dimmable driver (dimming from 100% to 5%), and it operates on a universal voltage range of 120V–277V, supporting continuous-run installations where uninterrupted illumination is required. The fixture is rated for both dry and damp locations and is ETL Damp Location rated, reflecting suitability for a range of indoor environments. It carries a DesignLights Consortium qualification, indicating energy-efficient performance within its class.

In terms of compatibility and maintenance, the unit’s standard package is listed as Each, and its construction and materials are specified to support long service life in standard indoor applications. When planning, consider the 4000K color temperature for clean, neutral light that works well with contemporary interiors and task-oriented spaces. The combination of a frosted lens, corrosion-resistant housing, and mounting versatility makes this fixture a practical choice for remodels, hallways, open offices, and other high-visibility areas where even illumination and easy installation are valued.

Features:

Curved wide-base wrap design to cover existing footprints
Frosted acrylic lens for impact resistance
.040" aluminum pre-painted white housing
Ceiling, wall or suspension mounting options
0-10V dimmable driver (100% – 5%) and universal 120-277V
Continuous-run capable, suitable for multiple color temperatures
ETL listed and DesignLights Consortium Qualified Luminaire

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 29
Lumens:: 4174
Lumen Per Watt:: 144
CRI:: >80
Finish:: White
ETL Listed:: Yes
Operating Temperature Range:: -4°F to 113?F
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What are the main construction features of the ILP SQ4-4L-U-40-WB Curved Wide Base LED Wrap?

The fixture uses a .040-inch pre-painted white aluminum housing with a frosted acrylic lens and a curved profile, and includes a 12-inch wide base wrap to cover footprints.

What are the key electrical specifications for this LED wrap?

It operates at 120V-277V universal voltage, with a 29-watt power draw, light output of 4174 lumens, color temperature of 4000K, and a 0-10V dimmable driver (dimming from 100% to 5%).

In what mounting configurations can the ILP SQ4-4L-U-40-WB be installed?

It supports ceiling, wall, or suspension mounting options and is suitable for continuous run installations.

What is the operating environment and warranty for this fixture??

It is rated for Dry & Damp locations, has a 5-year warranty, and is ETL Damp Location rated with DesignLights Consortium qualification.
