Name: ILP SQ4-2L-U-40-WB Curved Wide Base LED Wrap 4000K, 15 Watt, 2278 Lumens
Brand: ILP
SKU: SQ4-2L-U-40-WB
Price: 228.1 USD
Availability: InStock

ILP SQ4-2L-U-40-WB Curved Wide Base LED Wrap 4000K, 15 Watt, 2278 Lumens

ILP

SKU:

SQ4-2L-U-40-WB

$228.10

/ Each

Weight:

12.00 LBS

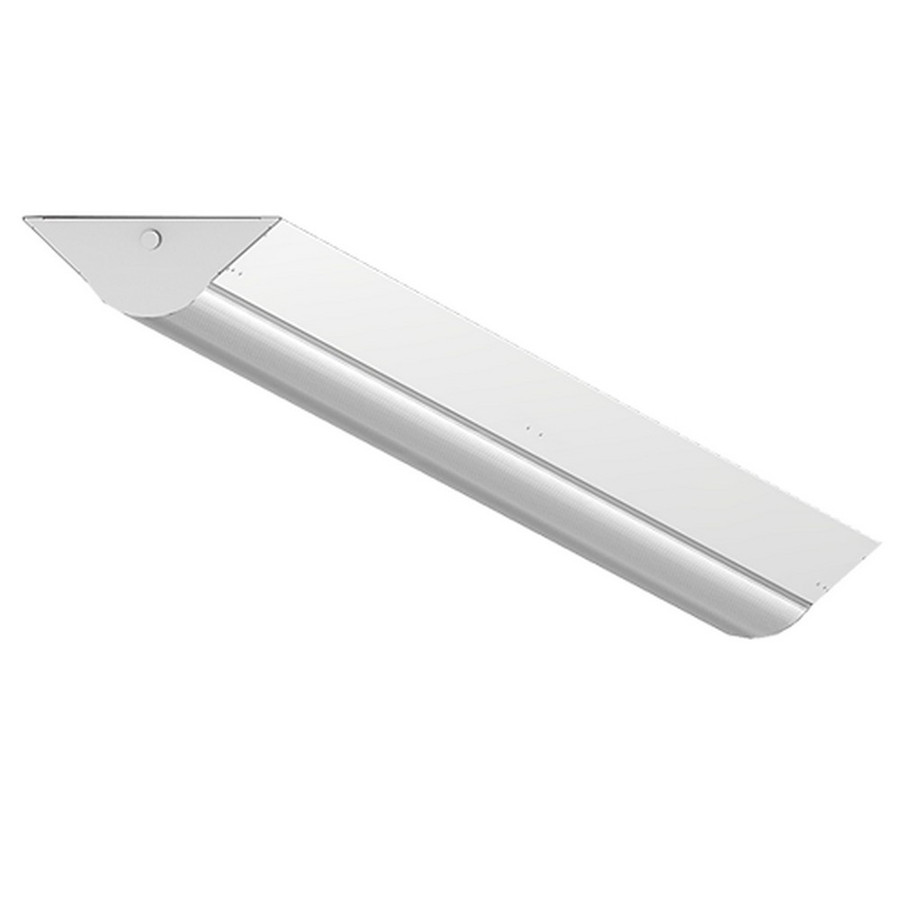

ILP’s SQ4-2L-U-40-WB is a curved, wide-base LED wrap fixture designed to cover existing footprints with a 12-inch-wide base while delivering a modern, low-profile aesthetic. The frosted acrylic lens is housed in a .040-inch pre-painted white aluminum enclosure, providing a durable, impact-resistant surface and a clean ceiling-to-wall integration option. The fixture offers versatile mounting choices, including ceiling, wall, or suspension installation, making it suitable for continuous run applications in configurable spaces.

Construction and features emphasize flexibility and controlled illumination. A 0-10V dimmable driver supports dimming from 100% to 5%, and the unit operates on universal voltage (120V–277V), enabling easy integration into various electrical systems. Color temperature is specified at 4000K in the data, with additional options (3000K, 3500K, 5000K) available in the product family, allowing alignment with space requirements and lighting design goals. It is rated for both dry and damp locations, and carries ETL Damp Location approval, reflecting suitability for environments with higher humidity or incidental moisture exposure. The design is qualified by the DesignLights Consortium as a high-performance luminaire, indicating efficiency characteristics compatible with energy-conscious projects.

Practical considerations for deployment include its 15-watt power draw and lumen output of 2,278 lumens, which translate to a modest efficacy suitable for general illumination tasks or as part of a layered lighting strategy. The fixture is designed for installation in continuous runs, reducing gaps and ensuring uniform light distribution along corridors or open-plan areas. With a five-year warranty, ILP provides assurance of post-purchase support and product longevity within its target settings.

Features:

Curved wide-base wrap design to cover existing footprints
Frosted acrylic lens with impact resistance
.040? aluminum pre-painted white housing
Ceiling, wall or suspension mounting options
0-10V dimming (100% – 5%) with multiple sensor options
120V-277V universal voltage
Dry and Damp Location Rated; ETL Listed
DesignLights Consortium Qualified Luminaire
5-year warranty; available in multiple color temperatures

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 15
Lumens:: 2278
Lumen Per Watt:: 148
CRI:: >80
Finish:: White
ETL Listed:: Yes
Operating Temperature Range:: -4°F to 113?F
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What are the key technical specifications of the ILP SQ4-2L-U-40-WB Curved Wide Base LED Wrap?

The fixture uses 120-277V universal voltage, 4000K color temperature, 15 watts, 2278 lumens, and 148 lumens per watt, with a CRI of 80 or higher, as listed in the specifications.

What materials and construction features does this light have?

It features a .040-inch pre-painted white aluminum housing, a curved profile with a frosted acrylic impact-resistant lens, and a 12-inch wide base wrap designed to cover existing footprints.

What mounting configurations are supported for this LED wrap?

It supports ceiling, wall, or suspension mounting options, and is suitable for continuous run installations.

Does this fixture offer dimming and what driver does it use?

Yes, it includes a 0-10V dimmable driver with dimming from 100% to 5% and supports multiple dimming and sensor options.

What environmental ratings and warranty come with this product?

It is rated for Dry and Damp locations, ETL Damp Location rated, and comes with a 5-year warranty.

Spec Sheet

ILP SQ4-2L-U-40-WB Curved Wide Base LED Wrap 4000K, 15 Watt, 2278 Lumens

Features:

What are the key technical specifications of the ILP SQ4-2L-U-40-WB Curved Wide Base LED Wrap?

What materials and construction features does this light have?

What mounting configurations are supported for this LED wrap?

Does this fixture offer dimming and what driver does it use?

What environmental ratings and warranty come with this product?
