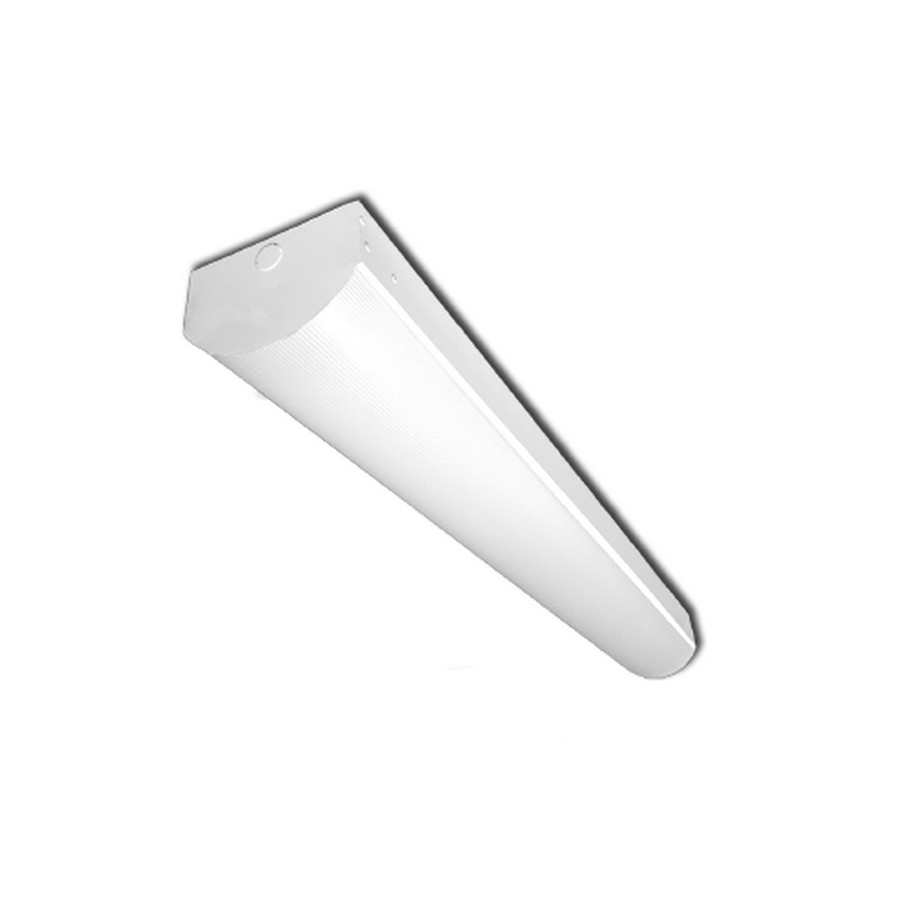

Name: ILP SQ4-2L-U-40 Curved Wrap LED Light 4000K, 15 Watt, 2278 Lumens
Brand: ILP
SKU: SQ4-2L-U-40
Price: 209.09 USD
Availability: InStock

ILP SQ4-2L-U-40 Curved Wrap LED Light 4000K, 15 Watt, 2278 Lumens

ILP

SKU:

SQ4-2L-U-40

$209.09

/ Each

Weight:

14.00 LBS

The ILP SQ4-2L-U-40 Curved Wrap LED Light is a high-performance suspended- or surface-mounted luminaire designed to deliver efficient, uniform illumination with a modern aesthetic. Encased in a .040-inch pre-painted white aluminum housing, the fixture presents a clean, durable profile complemented by a frosted acrylic lens that resists impact while softening and diffusing light. The unit operates at 120–277 V and delivers 15 watts of power with about 2278 lumens, translating to a luminous efficacy near 148 lm/W. Its color temperature is specified at 4000K, with a 80+ CRI, making it suitable for general ambient lighting in commercial and industrial spaces.

Built for flexible installations, this curved wrap luminaire supports ceiling, wall, or suspension mounting and is suitable for continuous runs, enabling seamless lighting across larger areas. The design is qualified by DesignLights Consortium and is ETL listed, reflecting compliance with energy efficiency and safety benchmarks. A 5-year warranty reinforces long-term value and performance expectations in professional settings.

Practical considerations for purchasing include the wide voltage range (120–277V) to simplify sourcing across projects with different electrical systems, and the option set that includes multiple dimming and control configurations to match varying ambient light requirements and building automation schemes. The fixture’s white finish and low-profile curved form help integrate with modern interiors while maintaining functional light output for work environments where reliable, even illumination is essential.

Features:

Sleek Profile Curved Wrap
White aluminum housing with a pre-painted finish
Frosted acrylic impact resistant lens
4000K color temperature (color options include 3000K-5000K)
15 W, 2278 lumens, 148 lm/W
Ceiling, wall, or suspension mounting
Suitable for continuous runs
5-year warranty
DesignLights Consortium Qualified Luminaire

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 15
Lumens:: 2278
Lumen Per Watt:: 148
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Standard
Operating Temperature Range:: -4°F to 113?F
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction does the ILP SQ4-2L-U-40 feature?

The fixture uses a .040-inch aluminum pre-painted white housing with a frosted acrylic impact-resistant lens and a curved wrap design.

What are the key technical specifications for this LED light?

15W LED fixture delivering 2,278 lumens at 4000K, with 120–277V input, 80+ CRI, and 100,000-hour life.

What mounting options are available for this luminaire?

It can be mounted on ceilings, walls, or suspended and is suitable for installation in continuous runs.

Are there any certifications or program qualifications for this product?

The fixture is DesignLights Consortium qualified and ETL listed; DLC standard is indicated in the specifications.

What are the application and use cases for the ILP SQ4-2L-U-40?

It is a curved wrap LED light suitable for ceiling, wall, or suspended installations and adaptable to continuous-run layouts, offering energy-efficient illumination with multiple dimming and control options.
