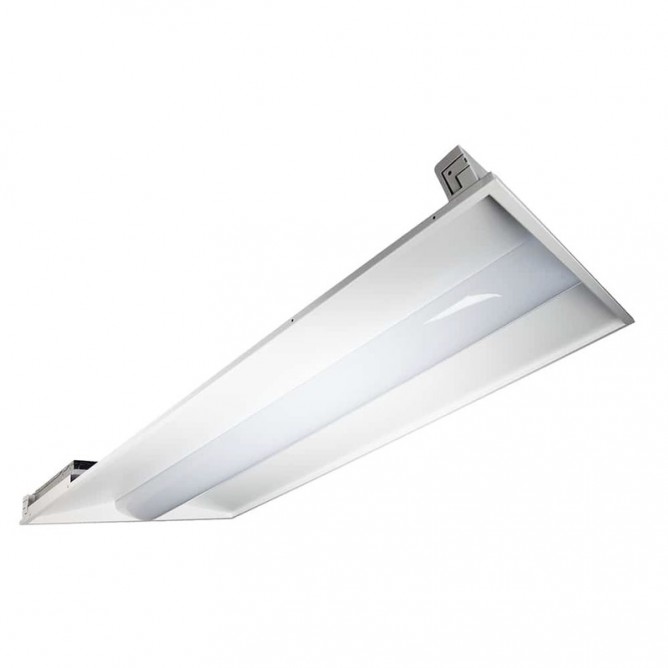

The TCP TRV series of LED troffers are an excellent choice to provide long lasting, energy efficient LED illumination to your general drop-ceiling lighting application. They are constructed of cold-rolled steel that is painted in a highly diffuse white finish with a low-glare acrylic diffuse that provides a wide light distribution and a sloped reflector that softens the contrast between the luminaire and the ceiling. Every troffer in the series are CCT-tunable, allowing the installer or end-user to choose between warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures. This model is also wattage selectable, allowing for a choice of wattage/lumen output options as well.
Save with The Safety Source
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: choose between 23W / 3,000 lumen, 29W / 3,800 lumen, or 38W / 5,000 lumen output options
- CCT-tunable: choose between warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures
- Fits standard 1" and 9/16" T-bar grid ceilings
- Acrylic diffuser with sloped housing design
- IP20 damp location rated
- DLC 5.0 Premium
- 50,000 hour rated
- 7 year warranty
Downloads:
Product Specifications:
| DLC ID | PRSDXHJK |
|---|---|
| Manufacturer Part Number | TRV4UZD38CCT |
| UPC | 762148286165 |
| Manufacturer | TCP |
| Lumens | 5,000 |
| Lumens Per Watt | 131.58 |
| Wattage | 38 Watts |
| Input Voltage | 120-277V |
| Color Temperature | CCT Tunable |
| Dimmable | 0-10V |
| Lamp Type | LED |
| Color Tone | CCT Tunable |
| Rated Hours | 50,000 |
| Min Operating Temp | -4 Degrees F |
| CRI | 80+ |
| DLC Listed | Premium |
| Special Features | CCT Tunable, Damp Location, Wattage / Lumen Selectable |
| Warranty | 7 Years |
| Package Size | Each |
- DLC ID:
- PRSDXHJK
- Manufacturer Part Number:
- TRV4UZD38CCT
- UPC:
- 762148286165
- Manufacturer:
- TCP
- Lumens:
- 5,000
- Lumens Per Watt:
- 131.58
- Wattage:
- 38 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- DLC Listed:
- Premium
- Special Features:
- CCT Tunable, Damp Location, Wattage / Lumen Selectable
- Warranty:
- 7 Years
- Package Size:
- Each
