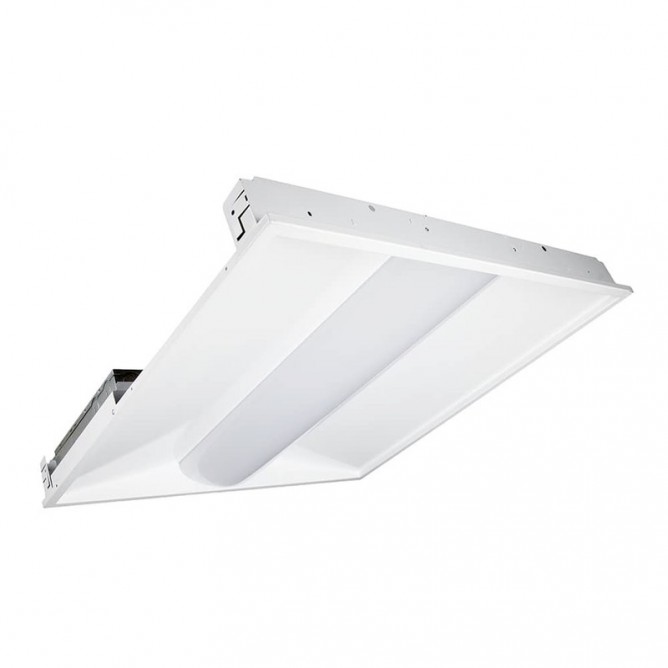

The TCP TRV2UZD23CCT is a ceiling-mounted LED troffer designed for drop-ceiling installations, delivering energy-efficient illumination with a tunable color temperature to adapt to changing space needs. It operates on 120–277V and is 0–10V dimmable, enabling lighting control to match ambient conditions or occupancy requirements. With a luminous output of 3,000 lumens and a measured efficacy around 130 lumens per watt, this unit provides bright, even illumination suitable for general area lighting in commercial or institutional settings. The product is built with a cold-rolled steel housing and an acrylic diffuser, paired with a sloped reflector to soften contrast between the fixture and the ceiling, while maintaining a diffuse light distribution that reduces glare.
A key feature is CCT tunability, allowing selection among warm-neutral 35K, neutral 40K, or daylight 50K. This flexibility can simplify space planning and meet evolving task or ambient lighting needs without swapping fixtures. The design accommodates standard ceiling grids, fitting both 1" and 9/16" T-bar ceilings, and it carries an IP20 rating suitable for damp locations when the environment permits. The unit is listed with DLC Premium and carries a 50,000-hour rated life, supported by a 7-year warranty for confidence in long-term performance.
For installation and use, this troffer is appropriate for general lighting in offices, classrooms, retail spaces, and similar occupancies where flexible color temperature and dimming are advantageous. Ensure compatible drivers for 0–10V dimming and confirm ceiling grid compatibility during planning. The TCP TRV2UZD23CCT is provided as a single package and designed to maintain color consistency across temperature settings, with performance verified under standard operating conditions.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT tunable: 35K / 40K / 50K
- Fits standard 1" and 9/16" T-bar grid ceilings
- Acrylic diffuser with sloped housing design
- IP20 damp location rated
- DLC 5.0 Premium
- 50,000 hour rated
- 7 year warranty
- DLC ID:
- P912CRCZ
- Manufacturer Part Number:
- TRV2UZD23CCT
- UPC:
- 762148286110
- Manufacturer:
- TCP
- Lumens:
- 3,000
- Lumens Per Watt:
- 130.43
- Wattage:
- 23 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- DLC Listed:
- Premium
- Special Features:
- CCT Tunable, Damp Location
- Warranty:
- 7 Years
- Package Size:
- Each
