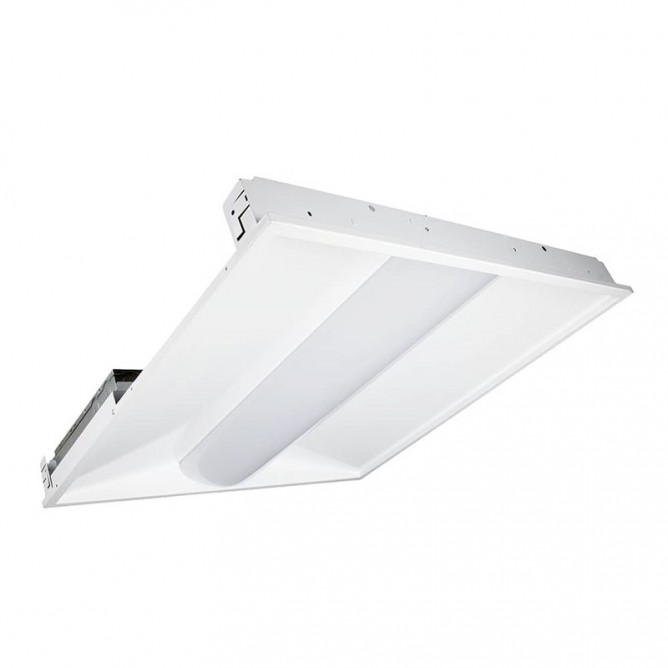

The TCP TRV2UZD38CCT is a 2x2’ LED recessed troffer designed for common drop-ceiling installations. It provides energy-efficient illumination with selectable wattage and color temperature, giving installers and facility managers flexible lighting options in office, retail, or general area spaces. The unit is engineered for 120–277V operation and is dimmable via 0–10V, enabling smooth step-down control to suit occupancy or daylight harvesting needs while maintaining consistent color and light distribution.
Constructed with a cold-rolled steel housing and a highly diffuse white finish, the troffer features a low-glare acrylic diffuser and a sloped reflector to soften contrast between the luminaire and ceiling. The design supports wide light distribution and helps minimize harsh shadows, contributing to a more comfortable work environment. This model offers three lumen-output choices—3,000 lm at 23W, 3,800 lm at 29W, and 5,000 lm at 38W—and allows selection of warm-neutral 35K, neutral 40K, or daylight 50K CCT, enabling precise mood and task lighting tuning to meet varied space needs.
The TRV2UZD38CCT is listed as DLC Premium and carries a 50,000-hour rated life with a 7-year warranty, underscoring its long-term value for maintenance-conscious facilities. It fits standard 1" and 9/16" T-bar grid ceilings and is rated IP20 for damp locations, supporting installation in typical manufacturing or commercial environments with moderate humidity. For best results, verify compatibility with your ceiling grid, dimming control strategy, and chosen CCT/lumen setting prior to installation to ensure consistent performance over time.
Features:
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: 23W/3,000 lm, 29W/3,800 lm, or 38W/5,000 lm
- CCT-tunable: 35K/40K/50K
- Fits standard 1" and 9/16" T-bar grid ceilings
- Acrylic diffuser with sloped housing
- IP20 damp location rated
- DLC 5.0 Premium
- 50,000 hour rated
- 7 year warranty
- DLC ID:
- PWQXWK5C
- Manufacturer Part Number:
- TRV2UZD38CCT
- UPC:
- 762148286066
- Manufacturer:
- TCP
- Lumens:
- 5,000
- Lumens Per Watt:
- 131.58
- Wattage:
- 38 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- DLC Listed:
- Premium
- Special Features:
- CCT Tunable, Damp Location, Wattage / Lumen Selectable
- Warranty:
- 7 Years
- Package Size:
- Each
