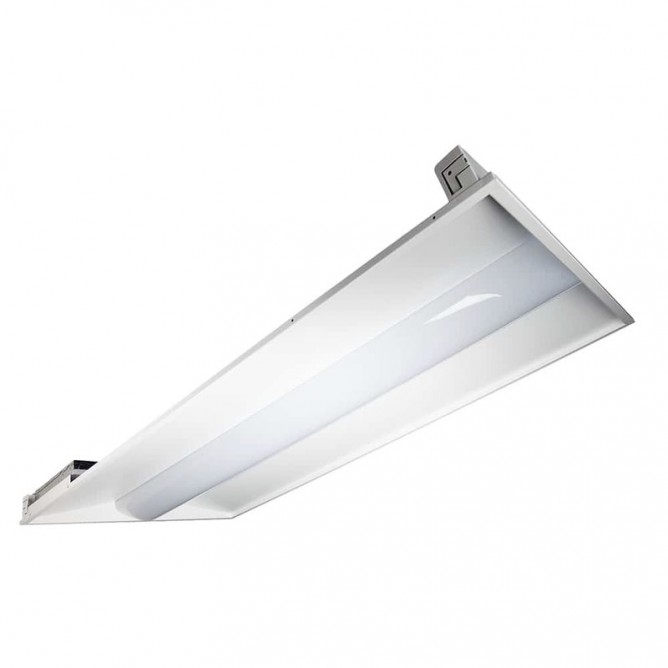

The TCP TRV4UZD23CCT is a versatile LED troffer designed for standard drop-ceiling installations, delivering energy-efficient illumination with color-temperature flexibility. This 23-watt fixture provides 3,000 lumens at a high efficacy and is suitable for general office and commercial spaces where adjustable light quality can enhance task performance and ambiance. The unit features a CCT-tunable output, allowing selection among warm-neutral 35K, neutral 40K, or daylight 50K to match different applications or time-of-day needs. With 0-10V dimming, you can fine-tune brightness to suit occupancy, reducing energy use while maintaining appropriate light levels. The design uses a cold-rolled steel housing with a highly diffuse white finish and a low-glare acrylic diffuser, paired with a sloped reflector to soften contrast between the luminaire and ceiling and promote a broad, even light distribution.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT tunable: 35K / 40K / 50K
- Fits standard 1" and 9/16" T-bar grid ceilings
- Acrylic diffuser with sloped housing
- IP20 damp location rated
- DLC 5.0 Premium
- 50,000 hour rated
- 7 year warranty
- DLC ID:
- PS9IUYIE
- Manufacturer Part Number:
- TRV4UZD23CCT
- UPC:
- 762148286172
- Manufacturer:
- TCP
- Lumens:
- 3,000
- Lumens Per Watt:
- 130.43
- Wattage:
- 23 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- Min Operating Temp:
- -4 Degrees F
- CRI:
- 80+
- DLC Listed:
- Premium
- Special Features:
- CCT Tunable, Damp Location
- Warranty:
- 7 Years
- Package Size:
- Each
