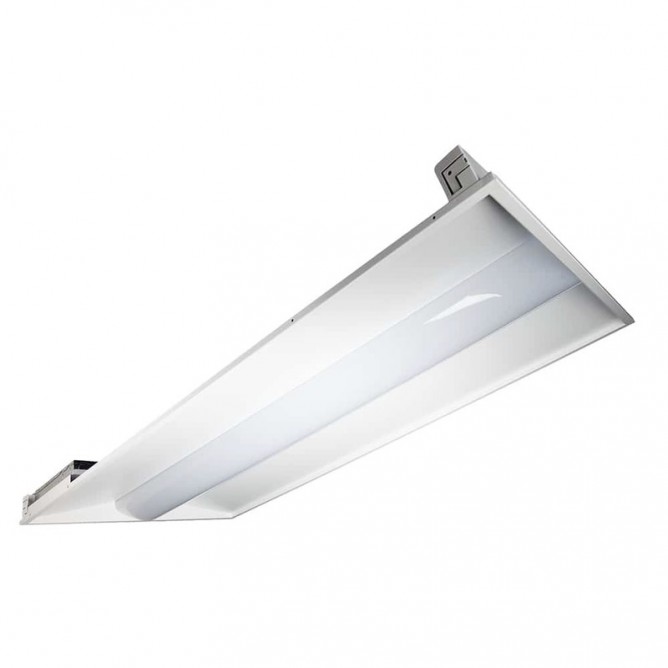

TCP TRV4UZD46CCT 2x4 Wattage Selectable LED Volumetric Troffer - 35K / 41K / 5K - 3,800 thru 6,000 Lumens - 120-277V

The TCP TRV4UZD46CCT is a 2x4 foot LED troffer designed for general ceiling installations in drop-ceiling grids. It delivers high-efficiency illumination with selectable wattage and CCT, offering flexible performance to match different spaces and lighting goals. The unit is built with cold-rolled steel and a highly diffuse white finish, featuring a low-glare acrylic diffuser and a sloped reflector that helps soften contrasts between the luminaire and the ceiling for a more uniform appearance. This model supports 120–277V operation and 0–10V dimming, enabling simple integration with standard building controls and dimming systems.

A key distinguishing feature is its wattage and CCT selectability. End users can choose between 29W (approximately 3,800 lumens), 39W (about 5,300 lumens), or 46W (around 6,000 lumens) to tailor light output to the space and energy goals. CCT-tunability provides warm-neutral 35K, neutral 40K, or daylight 50K color temperatures, allowing quick adaptation to different tasks or atmospheres without replacing fixtures. The diffuser is acrylic, contributing to wide light distribution, and the housing is designed for 1" and 9/16" T-bar grid ceilings, making it compatible with common ceiling systems in offices, schools, and healthcare facilities.

Practical considerations include damp location capability (IP20 rating) for areas with higher humidity, and a DLC 5.0 Premium listing, which can influence eligibility for energy rebates in many jurisdictions. The luminaire is designed for long service life, with an estimated 50,000 hours of operation and a seven-year warranty, supporting reduced maintenance in populated or mission-critical spaces. Maintenance and installation should respect manufacturer guidelines for wiring and dimming compatibility, and the unit’s 120–277V input supports a wide range of electrical supply scenarios.

Features:

• 120-277V operation
• 0-10V dimmable
• Wattage selectable: 29W/3,800 lm, 39W/5,300 lm, 46W/6,000 lm
• CCT tunable: 35K / 40K / 50K
• Fits standard 1" and 9/16" T-bar grid ceilings
• Acrylic diffuser with sloped housing
• IP20 damp location rated
• DLC 5.0 Premium
• 50,000 hour rated
• 7 year warranty
