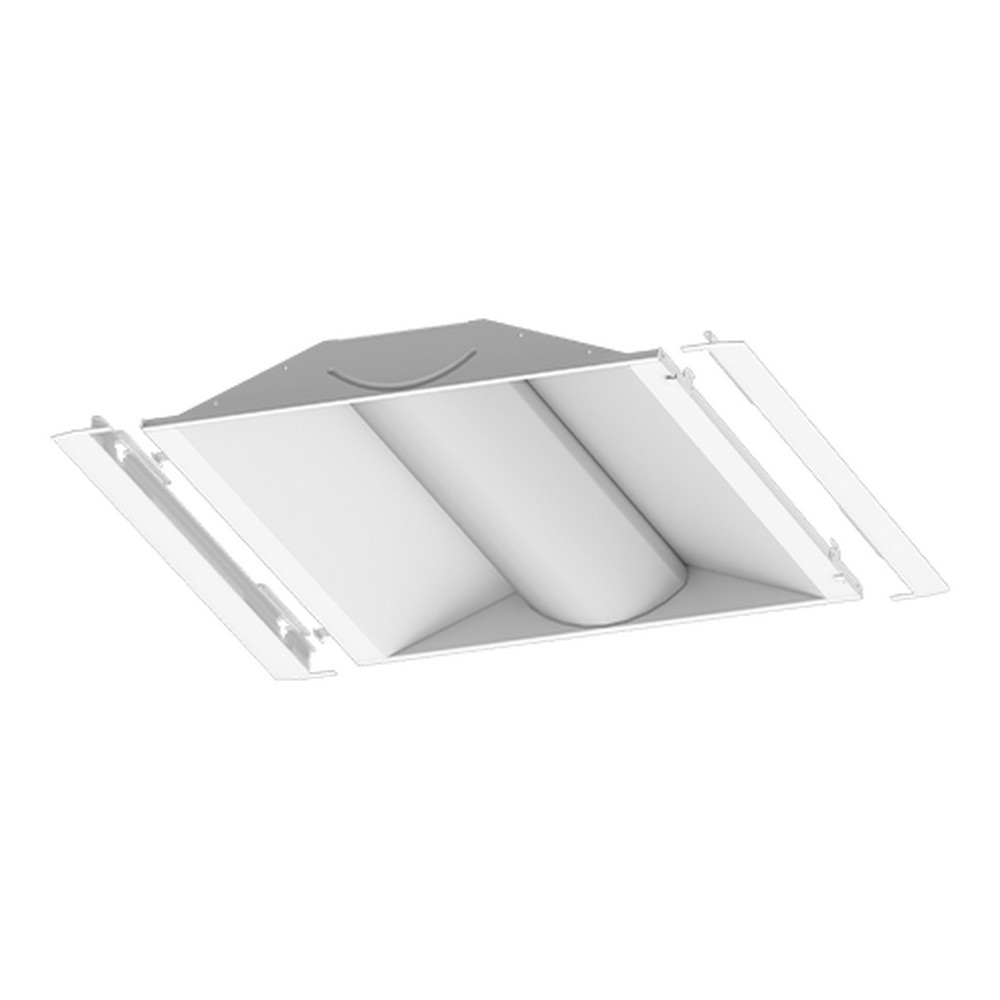

Name: ILP LANCE22-48L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 34 Watt, 4206 Lumens
Brand: ILP
SKU: LANCE22-48L-U-940
Price: 138.24 USD
Availability: OutOfStock

ILP LANCE22-48L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 34 Watt, 4206 Lumens

ILP

SKU:

LANCE22-48L-U-940

$138.24

/ Each

Weight:

18.00 LBS

The ILP LANCE22-48L-U-940 is a versatile LED troffer retrofit kit designed for recessed lighting applications. This one-piece unit is built to simplify installations, featuring two universal mounting brackets and an estimated installation time of under three minutes. The lightweight aluminum housing pairs with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens to deliver a clean, unobtrusive aesthetic suitable for a range of commercial interiors.

Constructed for reliable performance, the kit provides a broad lumen range and strong efficiency, capable of delivering 2,300 to 6,200 lumens depending on configuration, with efficacy up to 155 lm/W. It supports color temperatures from 3000K to 5000K and offers 80 and 90 CRI options, including a specific 4000K, 34W, 4,206-lumen model. A 0-10V dimmable driver allows for flexible lighting control, while optional air return and wireless control features enable integration with various ceiling and building management systems. The unit is designed for long service life, with a calculated L70 greater than 100,000 hours, aligning with low-maintenance expectations for retrofit projects.

Compatibility and practical use are supported by standard 120-277V input and ETL listing for UL1598C, underscoring compliance with common electrical and safety requirements in commercial environments. Available in 1×4, 2×2, and 2×4 formats, the LANCE22-48L-U-940 can replace legacy troffer fixtures while maintaining appropriate light levels and color rendering. Each kit is covered by a 5-year warranty, with an optional extended warranty, and carries DesignLights Consortium Premium qualification, signaling efficiency and performance aligned with professional lighting standards.

Features:

Troffer retrofit kit for recessed lighting applications
One-piece unit with two universal mounting brackets
Lightweight aluminum matte white finish body
High transmission PMMA frosted acrylic lens
0-10V dimmable driver
1x4, 2x2, 2x4 sizes
Up to 4206 lm, up to 122 lm/W, 4000K, CRI >=90

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 34
Lumens:: 4206
Lumen Per Watt:: 122
CRI:: >90
Finish:: White
ETL Listed:: Yes
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials or construction does the product feature?

The kit uses a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens.

What are the product's important technical specifications?

34W LED troffer retrofit kit delivering 4,206 lumens at 4000K, with 120–277V input, 0–10V dimming, and 100,000-hour life.

Does the product meet a specific documented safety standard?

The unit is ETL listed for UL1598C and is DesignLights Consortium Premium Qualified Luminaire.

What sizes, dimensions, or capacities are specified?

Available in 1×4, 2×2, and 2×4 sizes; designed to deliver 2,300–6,200 lumens depending on configuration (this SKU specifies 4,206 lumens at 34 W and 4000 K).

What equipment or accessories is the product compatible with?

It features two universal mounting brackets and offers air return options and advanced wireless control capabilities.

What industries, tasks, or applications is it intended for?

Designed for recessed lighting applications in commercial/industrial spaces where retrofit of troffer luminaires is needed.

What is included in the package or how is it sold?

The specifications indicate a single kit unit with the described features; the standard warranty is 5 years with an optional 10-year warranty.

What distinguishes this product from similar options?

It combines a one-piece unit with two universal mounting brackets, a lightweight aluminum body, a high-transmission PMMA lens, and optional wireless controls, along with ETL UL1598C listing and DesignLights Consortium Premium qualification.

Does the product have special features, coatings, or design characteristics?

Yes, it features a matte white finish, a high-transmission extruded PMMA frosted acrylic lens, air return options, and optional wireless control capabilities, plus 0-10V dimmable driver.
