Name: ILP LANCE22-37L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 28 Watt, 3463 Lumens
Brand: ILP
SKU: LANCE22-37L-U-940
Price: 136.52 USD
Availability: OutOfStock

ILP LANCE22-37L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 28 Watt, 3463 Lumens

ILP

SKU:

LANCE22-37L-U-940

$136.52

/ Each

Weight:

18.00 LBS

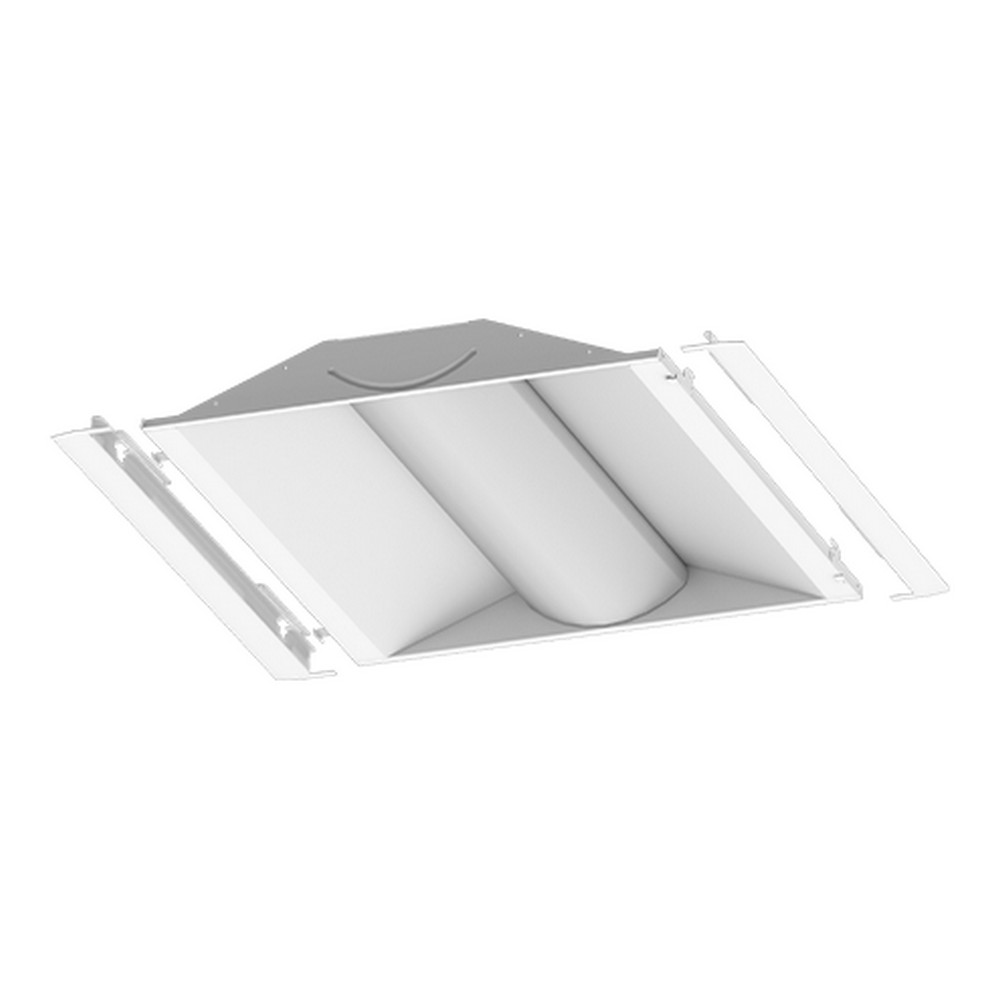

The ILP LANCE22-37L-U-940 is a lightweight, one-piece troffer retrofit kit designed for recessed lighting applications. It consolidates mounting brackets, a slim aluminum housing, and a frosted PMMA lens into a single unit intended to simplify installation, with an average setup time of under three minutes. The white finish and compact profile are suited to 1×4, 2×2, and 2×4 layouts, delivering a broad range of lumen outputs while maintaining high efficiency. The specified 28-watt input and 3463 delivered lumens correspond to a lumen-per-watt value of roughly 126 lm/W, and the unit is available in 4000K CCT with higher CRI options, which helps achieve good color rendering for general ambient lighting tasks.

Constructed with a lightweight aluminum body and a high-transmission extruded PMMA frosted acrylic lens, the kit emphasizes optical performance and heat management essential for recessed installations. It supports air return configurations and offers advanced wireless control options, enabling easier integration into modern, dimmable or connected lighting schemes through a 0-10V dimmable driver. Photometric and efficiency data, including up to 155 lm/W, reflect the kit’s capability to meet energy-performance goals in retrofit projects while maintaining a long rated life.

This product is ETL listed for UL1598C and carries a standard 5-year warranty with an optional 10-year extension, aligning with typical expectations for commercial retrofit luminaires. It is also DesignLights Consortium Premium qualified, which may be relevant for utility and project documentation. The unit’s included specifications indicate a broad operating voltage range (120–277V) and a design focus on long service life (L70 > 100,000 hours), making it a viable option for reducing maintenance frequency in ceiling-recessed spaces while preserving light quality across common retrofit scenarios.

Features:

One-piece troffer retrofit kit for recessed lighting
Two universal mounting brackets for versatility
Average install time < 3 minutes
Lightweight aluminum matte white finish
High transmission PMMA frosted acrylic lens
0-10V dimmable driver
2x2, 1x4, 2x4 configurations

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 28
Lumens:: 3463
Lumen Per Watt:: 126
CRI:: >90
Finish:: White
ETL Listed:: Yes
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features does the ILP LANCE22-37L-U-940 Lance Volumetric Troffer Retrofit Kit use?

The kit features a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens. It is a one-piece unit designed for recessed lighting applications with two universal mounting brackets.

What are the key technical specifications of this retrofit kit?

28W LED retrofit delivering 3,463 lumens at 4000K, with 120–277V input, CRI over 90, and 100,000-hour life.

What installation features or accessories does this kit offer?

It is designed for fast installation with two universal mounting brackets and an average install time of less than 3 minutes. It supports air return options and has advanced wireless controls options for integration.

What sizes and performance range does this product line support?

The kit is available in 1×4, 2×2, and 2×4 sizes, delivering between 2,300 and 6,200 delivered lumens with high efficacy up to 155 lm/W. The model specified, LANCE22-37L-U-940, provides 3463 lumens at 28 watts and 4000K.
