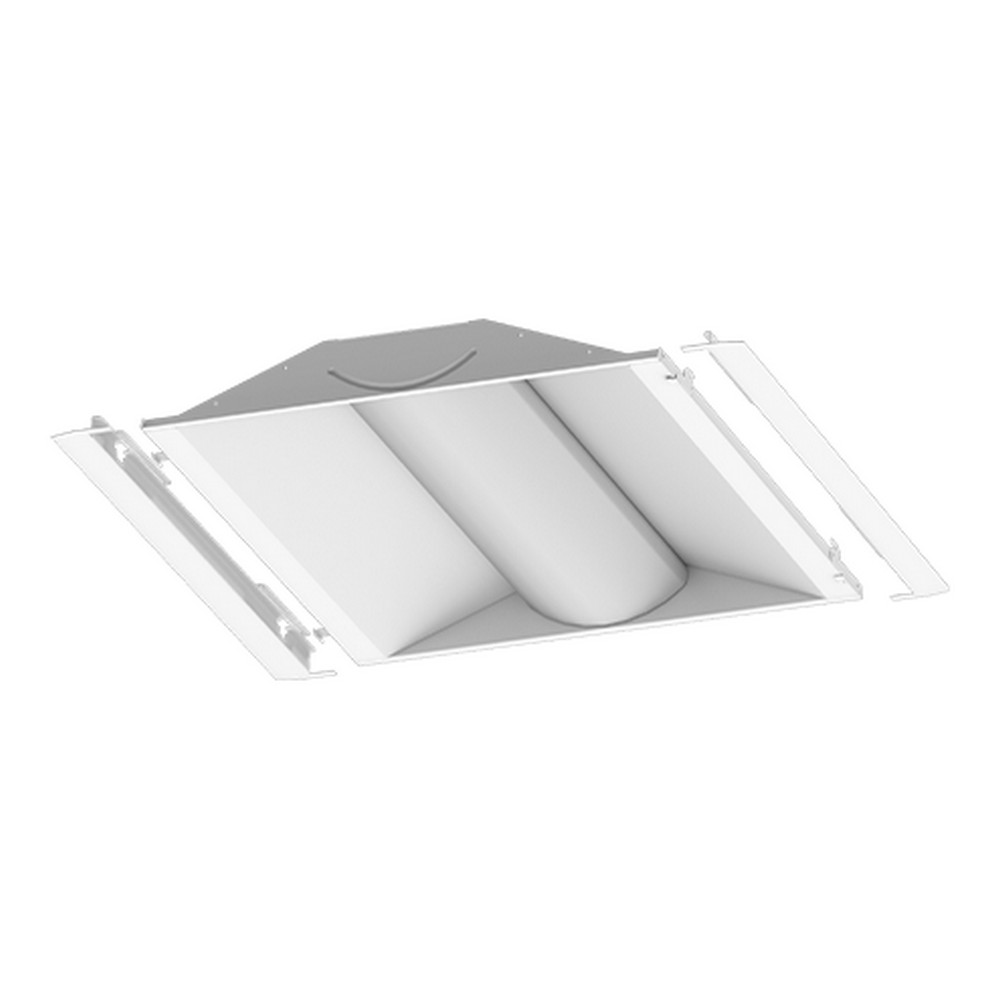

The ILP LANCE22-31L-U-940 Lance Volumetric Troffer Retrofit Kit is a recessed lighting retrofit solution designed to convert existing fixtures to a modern, high-efficiency LED platform. This one-piece unit features two universal mounting brackets and a lightweight aluminum body finished in matte white, paired with a high-transmission extruded PMMA frosted acrylic lens. With 2, Mulitple form factors available (1×4, 2×2, and 2×4), the kit supports flexible installation in a range of troffer sizes and aims to simplify on-site upgrades, delivering reliable performance with a projected long life. The included 0-10V dimmable driver enables compatible dimming systems, and advanced wireless control options offer scalable control strategies for modernized lighting schemes. The design emphasizes quick installation, with an average setup time noted as under three minutes, helping minimize fixture downtime during retrofits.
Construction and features focus on efficiency and control. The combination of a lightweight aluminum chassis, matte white finish, and a frosted PMMA lens is optimized for effective light transmission and uniform diffuse output. The kit is available in a color temperature of 4000K and can support a range of lumen output levels, making it adaptable to various task and ambient lighting requirements. It provides air return options to accommodate existing HVAC considerations and can be paired with wireless controls for centralized or zoned management. A 5-year standard warranty with optional extended coverage aligns with typical commercial retrofit expectations, while ETL listing for UL1598C confirms compliance with established lighting safety standards.
In terms of compatibility and practical considerations, the product is designed for recessed troffer applications and is intended to replace or retrofit compatible fixtures in 1×4, 2×2, and 2×4 layouts. It operates on 120–277V input and delivers approximately 2,577 lumens at the specified 22W, achieving a high efficacy profile for its class. This makes it suitable for upgrading established light levels in offices, classrooms, and similar spaces while potentially reducing maintenance and energy costs over time. When planning a retrofit, verify fixture dimensions and mounting compatibility with the universal brackets and consider whether air return and wireless control options are desired for the installation scenario.
Features:
- Troffer Retrofit Kit for recessed lighting applications
- One-piece unit with two universal mounting brackets
- Average install time less than 3 minutes
- Lightweight aluminum matte white finish body
- High transmission extruded PMMA frosted acrylic lens
- 2,300–6,200 Delivered Lumens
- 0-10V dimmable driver and high efficacy up to 155 lm/W
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- Watt:
- 22
- Lumens:
- 2577
- Lumen Per Watt:
- 118
- CRI:
- >90
- Finish:
- White
- ETL Listed:
- Yes
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
