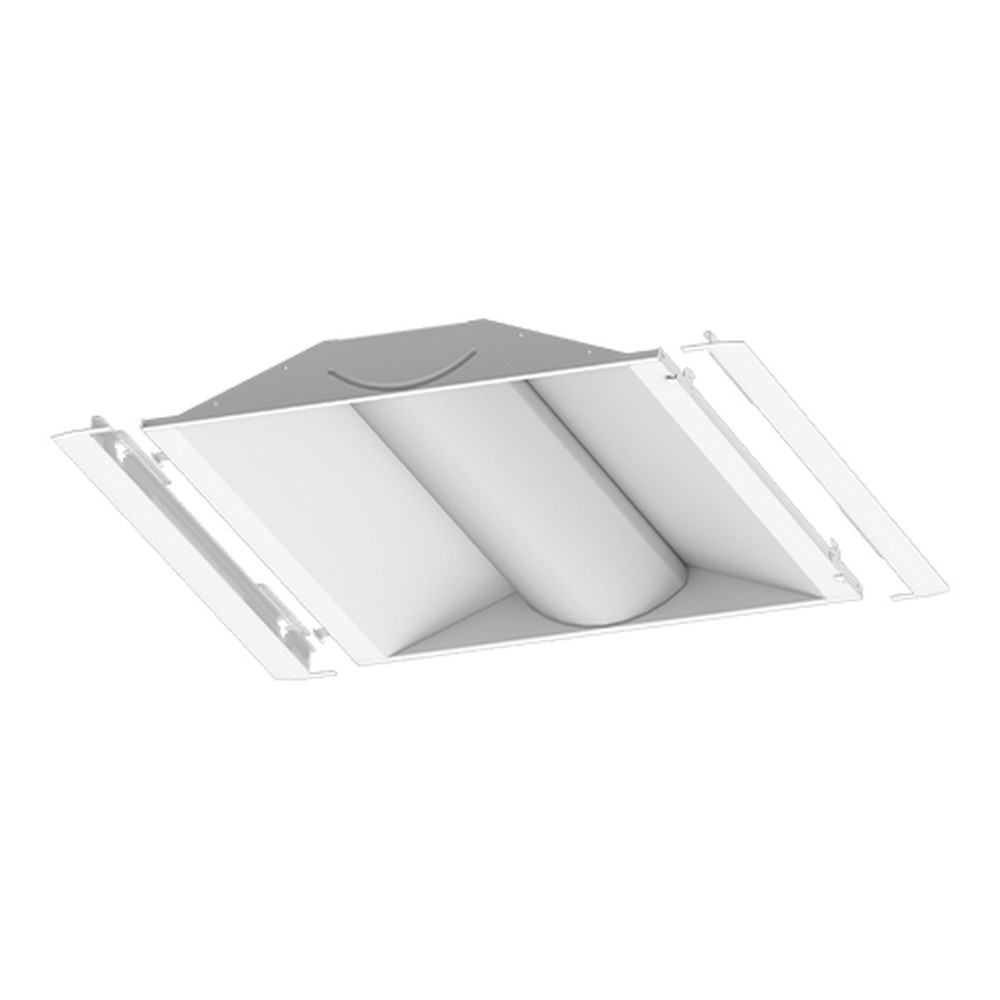

Name: ILP LANCE22-24L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 17 Watt, 2129 Lumens
Brand: ILP
SKU: LANCE22-24L-U-940
Price: 119.24 USD
Availability: OutOfStock

ILP LANCE22-24L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 17 Watt, 2129 Lumens

ILP

SKU:

LANCE22-24L-U-940

$119.24

/ Each

Weight:

18.00 LBS

The ILP LANCE22-24L-U-940 is a one-piece troffer retrofit kit designed to replace traditional recessed luminaires in drop-ceiling suites. Built for fast, tool-light installation, this unit uses two universal mounting brackets and a lightweight aluminum housing finished in matte white to blend with standard ceiling grids. A high-transmission extruded PMMA frosted acrylic lens helps deliver consistent illumination, while the option for air returns supports cooler operation and potential ceiling integration needs. The kit is available in common grid sizes (1×4, 2×2, 2×4) to fit a range of fixture footprints and is compatible with 120–277V electrical supply, providing 2129 lumens at 4000K in a 17W package with a reported efficacy up to 123 lm/W. A 0–10V dimmable driver is included to support basic lighting-control strategies, and the unit can be configured with advanced wireless controls options for broader smart-building integration. The fixture is ETL-listed for UL1598C and carries DesignLights Consortium Premium qualification, indicating conformance to certain performance and efficiency benchmarks used in professional projects. The reported color temperature of 4000K places it in the neutral white range, suitable for general office and commercial environments that require balanced, daytime-like illumination. With an estimated L70 life exceeding 100,000 hours, the retrofit aims to minimize maintenance cycles in monitored spaces while maintaining consistent light output over time. The standard warranty is 5 years, with an optional extension to 10 years, offering buyers long-term support for installed luminaires.

Features:

Troffer retrofit kit for recessed lighting applications
One-piece unit with two universal mounting brackets
Average install time less than 3 minutes
Lightweight aluminum matte white finish body
High transmission extruded PMMA frosted acrylic lens
0-10V dimmable driver
ETL Listed for UL1598C; DLC Premium Qualified

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 17
Lumens:: 2129
Lumen Per Watt:: 123
CRI:: >90
Finish:: White
ETL Listed:: Yes
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials and construction features are specified for the ILP LANCE22-24L-U-940 Lance Volumetric Troffer Retrofit Kit LED Light?

The kit has a lightweight aluminum body with a matte white finish and uses a high-transmission extruded PMMA frosted acrylic lens. It is a one-piece unit with two universal mounting brackets designed for recessed lighting applications.

What are the key technical specifications of this LED retrofit kit (power, lumens, color temperature, and driver)?

The kit is 17 Watts, delivers 2,129 lumens, has a 4000K color temperature, and includes a 0-10V dimmable driver within an input voltage range of 120-277V.

What is the warranty coverage and ETL listing status for this product?

It carries a standard 5-year warranty with an optional 10-year warranty and is ETL Listed for UL1598C.

What installation and compatibility features are highlighted for this troffer retrofit kit?

It features two universal mounting brackets for quick installation (average install time less than 3 minutes) and supports air return options and advanced wireless controls options.

What color rendering and lumen performance options are available for this product?

The product offers 80 and 90 CRI options with delivered lumens ranging from 2,300 to 6,200 depending on configuration; the specific SKU lists 2,129 lumens at 4000K with up to 155 lm/W efficacy, and a calculated L70 of over 100,000 hours.
