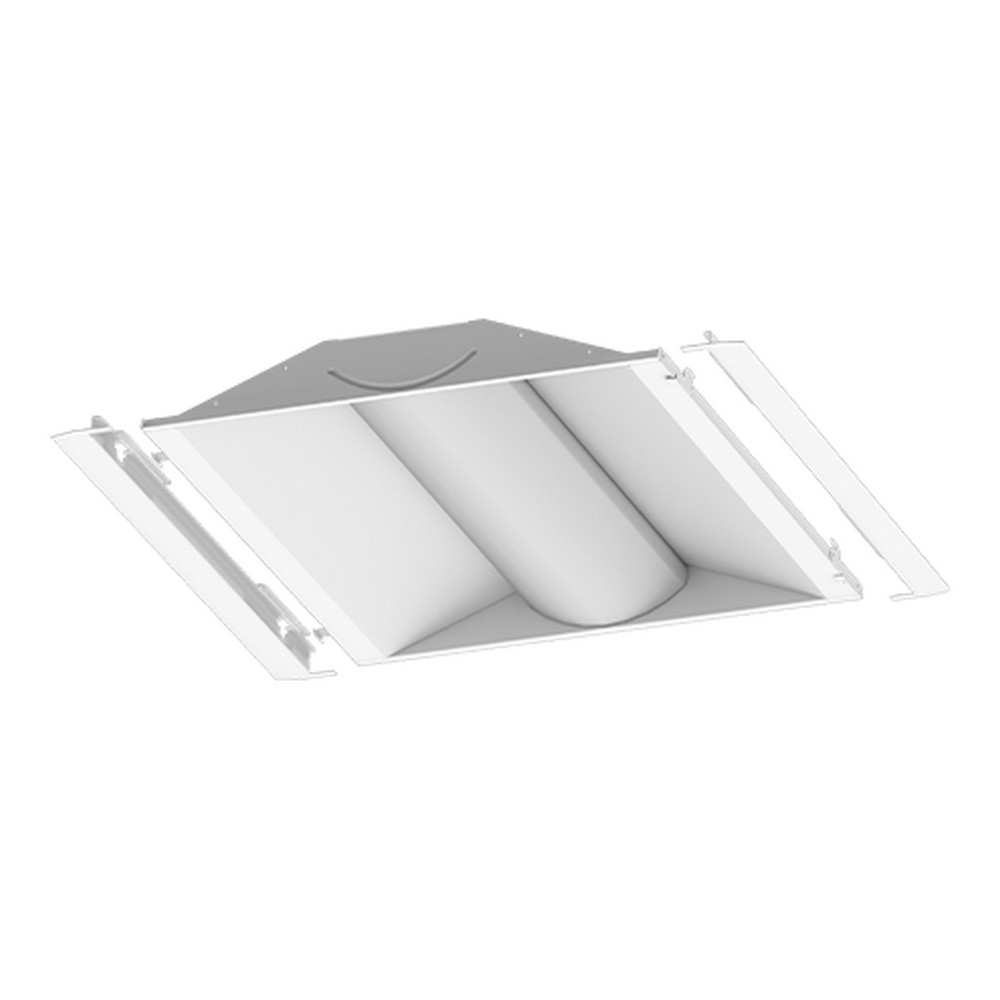

The ILP LANCE22-48L-U-40 is a versatile troffer retrofit kit designed to convert recessed luminaires to modern LED illumination. This one-piece unit features two universal mounting brackets and a lightweight aluminum housing with a matte white finish, paired with a high-transmission extruded PMMA frosted acrylic lens to deliver efficient, uniform light. It supports multiple form factors (1×4, 2×2, 2×4) and provides delivered lumens in a broad range, with performance suitable for a variety of general lighting applications while maintaining a compact footprint and easy installation in 3 minutes or less.
The kit’s built-in 0-10V dimmable driver and options for wireless control capabilities offer flexible lighting control, enabling energy savings and adaptive lighting schemes in spaces that require consistent brightness. With color temperatures from 3000K to 5000K and CRI options of 80 or 90, this retrofit solution can be matched to space requirements and task needs while delivering a robust efficiency profile—up to 155 lm/W in the specification range (subject to configuration). The unit is designed for recessed installations and is ETL listed for UL1598C, aligning with industry safety and reliability expectations for interior luminaires. A standard 5-year warranty applies, with an optional extension to 10 years for customers seeking longer-term protection.
From a practical perspective, the LANCE22-48L-U-40 is compatible with 120–277V electrical supplies and provides a typical upgrade path for existing troffer fixtures that benefit from modern LED performance and lower maintenance. The product supports air return options and may offer advanced wireless control configurations, depending on the installation scenario. As with any retrofit, verify compatibility with the existing plenum, driver compatibility, and requested light levels to ensure you achieve the intended illumination quality and energy savings in your space.
Features:
- Troffer Retrofit Kit for recessed lighting applications
- One-piece unit with two universal mounting brackets
- High transmission PMMA frosted acrylic lens
- 0-10V dimmable driver
- 1×4, 2×2, 2×4 sizes
- 4000K color temperature, 80+ CRI
- ETL Listed for UL1598C, DLC Standard
- Input Voltage:
- 120-277V
- Color Temp:
- 4000K
- Watt:
- 35
- Lumens:
- 4789
- Lumen Per Watt:
- 140
- CRI:
- >80
- Finish:
- White
- ETL Listed:
- Yes
- DLC:
- Standard
- Average Rated Life:
- 100,000 hrs
- Warranty:
- 5 Years
- Package Size:
- Each
