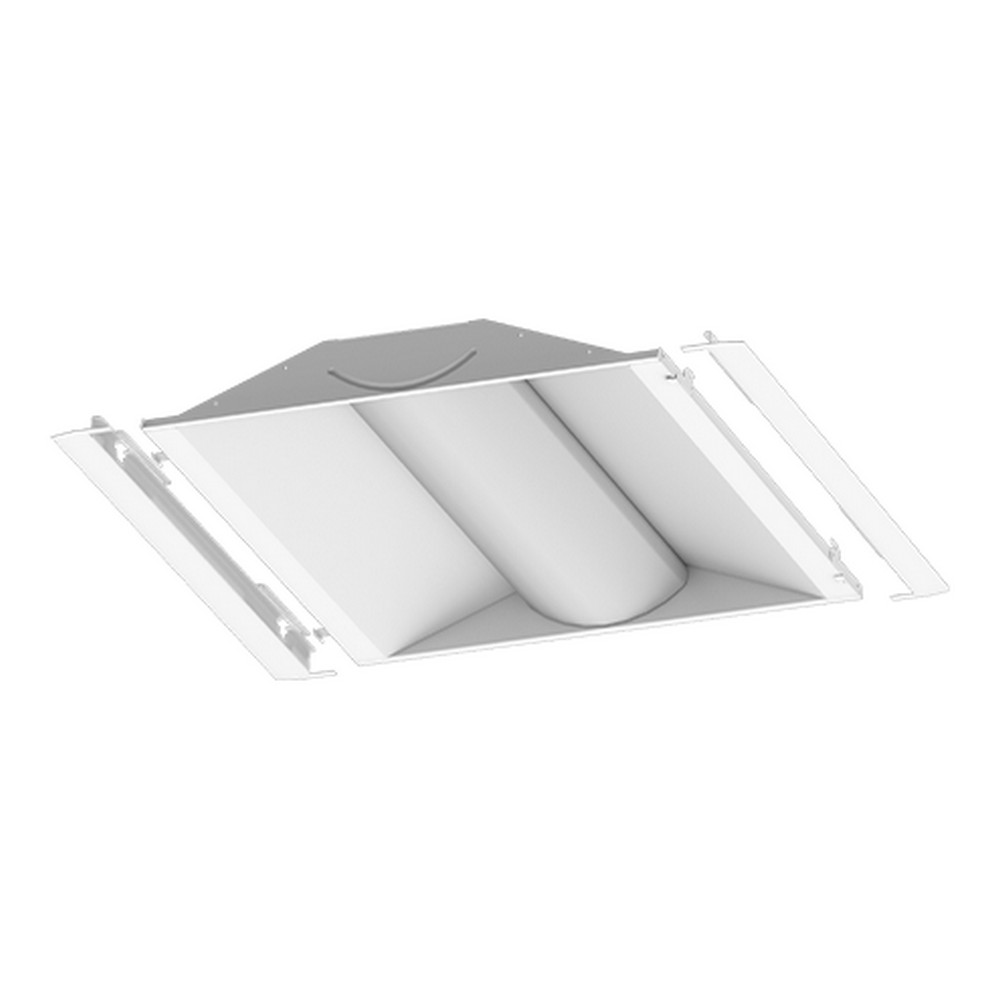

Name: ILP LANCE22-37L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 27 Watt, 3717 Lumens
Brand: ILP
SKU: LANCE22-37L-U-40
Price: 122.69 USD
Availability: InStock

ILP LANCE22-37L-U-40 Lance Volumetric Troffer Retrofit Kit LED Light 4000K, 27 Watt, 3717 Lumens

ILP

SKU:

LANCE22-37L-U-40

$122.69

/ Each

Weight:

18.00 LBS

The ILP LANCE22-37L-U-40 is a versatile troffer retrofit kit designed for recessed lighting installations in commercial spaces. This one-piece unit simplifies installation with two universal mounting brackets and a lightweight aluminum body finished in matte white. A high-transmission extruded PMMA frosted acrylic lens helps optimize light output, delivering 3,717 lumens at 27 watts with a reported efficacy up to 140–155 lm/W depending on configuration, and a color temperature of 4000K. The kit supports a broad operating range and is offered with 80 or 90 CRI options to meet various quality requirements for visual tasks and spaces. It is designed for long service life, with a calculated L70 rating exceeding 100,000 hours, and includes a 0-10V dimmable driver to accommodate dimming control strategies in modern lighting schemes. The unit is ETL listed for UL1598C and has DLC qualification as a DesignLights Consortium Premium luminaire, reflecting compliance with recognized performance standards and energy-efficiency criteria.

Constructed to meet flexible installation needs, the LANCE22-37L-U-40 accommodates 1×4, 2×2, and 2×4 layouts, enabling it to retrofit a range of common ceiling grids. The design emphasizes user-friendly mounting and fast installation, with attention to air return options and optional wireless control capabilities for integration into smart or centralized control systems. Its packaging lists a standard 5-year warranty with an optional extension to 10 years, offering coverage for material and workmanship under normal usage. When planning a retrofit, consider the kit’s size variants, lumen output, and dimmability in relation to the existing fixtures and room demands, as well as the available mounting hardware and control options to maximize energy savings and lighting quality.

Features:

Troffer Retrofit Kit for recessed lighting applications
One-piece unit with two universal mounting brackets
Fast installation (average 3 minutes)
Lightweight aluminum matte white finish body
High transmission PMMA frosted acrylic lens
0-10V dimmable driver
2x2, 2x4, 1x4 sizes; 3717 lumens at 27W

Color Temperature	Description
2700K – Warm White	Soft, warm white light with a yellowish tone, ideal for comfortable and inviting environments.
3000K – Warm White	Warm white illumination suitable for offices, reception areas, and commercial interiors.
3500K – Neutral White	Balanced white light offering a comfortable appearance for offices, classrooms, and retail spaces.
4000K – Cool White	Clean, neutral white light commonly used in warehouses, offices, and industrial facilities.
4500K – Cool White	Crisp white illumination suitable for workshops, commercial buildings, and general task lighting.
5000K – Daylight	Bright-looking, daylight-like white light commonly used in manufacturing, warehouses, and work areas.
5700K – Daylight White	Cool, daylight-like illumination suitable for industrial facilities and outdoor lighting.
6000K – Cool Daylight	Cool white light with a slight bluish tone, suitable for industrial and commercial applications.
6500K – Daylight	Very cool, daylight-like white light often used in inspection areas and specialized workspaces.
Selectable CCT	Allows users to select between preset color temperatures to accommodate different lighting preferences.
Tunable White	Provides adjustable color temperature across a supported range for flexible lighting applications.

Note: Capacity includes the worker, clothing, tools, and equipment. OSHA compliance depends on the complete fall protection system and its intended use, not the weight rating alone.

CRI Rating	Description
CRI 70	Provides basic color rendering suitable for warehouses, storage areas, and general industrial lighting where precise color identification is not critical.
CRI 80	Delivers good color accuracy for offices, warehouses, manufacturing facilities, and everyday commercial lighting applications.
CRI 82	Offers good color rendering for commercial and industrial environments, helping maintain natural-looking colors and clear visibility.
CRI 85	Provides enhanced color accuracy for retail spaces, offices, workshops, and applications where color distinction is important.
CRI 90	Delivers excellent color rendering for applications requiring accurate color identification, including inspection areas, retail displays, and detailed workspaces.
CRI 95	Offers exceptional color accuracy for specialized applications such as color inspection, photography, and precision manufacturing.
CRI 98	Provides near-reference color rendering accuracy, ideal for demanding applications requiring highly accurate color reproduction and visual evaluation.
CRI 100	Represents the maximum CRI score, indicating color rendering equivalent to the applicable reference illuminant under the CRI measurement system.

ETL Listed products have been independently tested and certified by Intertek to meet applicable North American safety standards, including UL and CSA standards where applicable. The ETL Listed mark indicates that the product meets established safety requirements and is subject to ongoing certification oversight. Commonly found on LED lighting fixtures, electrical equipment, and commercial products, ETL certification helps demonstrate compliance with recognized electrical and product safety standards.

Input Voltage:: 120-277V
Color Temp:: 4000K
Watt:: 27
Lumens:: 3717
Lumen Per Watt:: 140
CRI:: >80
Finish:: White
ETL Listed:: Yes
DLC:: Standard
Average Rated Life:: 100,000 hrs
Warranty:: 5 Years
Package Size:: Each

What materials or construction does the ILP LANCE22-37L-U-40 troffer retrofit kit feature?

The kit has a lightweight aluminum body with a matte white finish and a high-transmission extruded PMMA frosted acrylic lens.

What are the key technical specifications for this retrofit kit (model LANCE22-37L-U-40)?

27W LED fixture delivering 3,717 lumens at 4000K, with 120–277V input, 140 lm/W efficacy, and ETL listing.

What sizes and installation features does this kit support?

It is available in 1×4, 2×2, and 2×4 sizes, features a one-piece unit with two universal mounting brackets, and an average installation time of less than three minutes.

What approvals or qualifications are documented for this product?

The product is ETL Listed for UL1598C and is DesignLights Consortium Premium Qualified.
