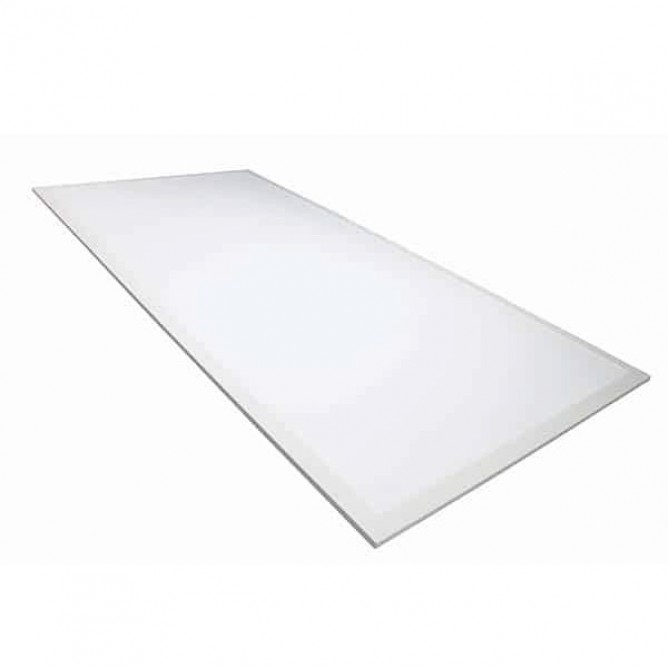

The TCP DTF4UZD46CCT is a back-lit LED flat panel designed to deliver versatile, energy-efficient illumination for commercial settings such as offices, classrooms, and retail spaces. This panel supports two key user options: wattage and color temperature. With wattage selectable outputs of 29W (3,300 lumens), 39W (4,400 lumens), or 46W (5,100 lumens), it enables tailoring brightness to the application while maintaining uniform panel lighting. The unit is dimmable via a 0-10V interface and offers color tuning among warm-neutral 35K, neutral 40K, or daylight 50K to suit different tasks and ambient conditions.
Construction features include a slim, lightweight back-lit design that promotes even light diffusion across the frosted diffuser, reducing glare and producing a consistent visual field. The panel is rated for damp locations (IP20), and is IC-rated to help with insulation compatibility. It carries DLC 5.0 Standard qualifications, which can support utility-driven incentives in eligible markets, and is designed for long service life with a 50,000-hour rated lifespan. The product is backed by a 5-year warranty, reflecting TCP’s confidence in its durability and performance.
Practical considerations include 120-277V operation for flexible installation across various electrical systems and the product’s compatibility with standard ceiling grids and mounting configurations typical of commercial interiors. The unit’s CCT-tunable, wattage-selectable design supports a range of space needs—from energy-conscious, lower-brightness environments to higher-brightness settings—without needing multiple SKUs. For purchasing, note the model is identified by TCP’s DTF4UZD46CCT part number, and the package size is listed as one unit per package.
Features:
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: 29W/3,300 lm, 39W/4,400 lm, 46W/5,100 lm
- CCT tunable: 35K / 40K / 50K
- Back-lit design for even illumination
- Frosted diffuser reduces glare
- IP20 damp location rated
- IC-rated
- DLC 5.0 Standard
- 50,000 hour rated
- 5 year warranty
- DLC ID:
- PI2VIFQ1
- Manufacturer Part Number:
- DTF4UZD46CCT
- UPC:
- 762148283027
- Manufacturer:
- TCP
- Flat Panel Type:
- Back-Lit
- Lumens:
- 5,100
- Lumens Per Watt:
- 110.87
- Wattage:
- 46 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- CRI:
- 80+
- DLC Listed:
- Standard
- Special Features:
- CCT Tunable, Damp Location, Wattage / Lumen Selectable
- Warranty:
- 5 Years
- Package Size:
- Each
