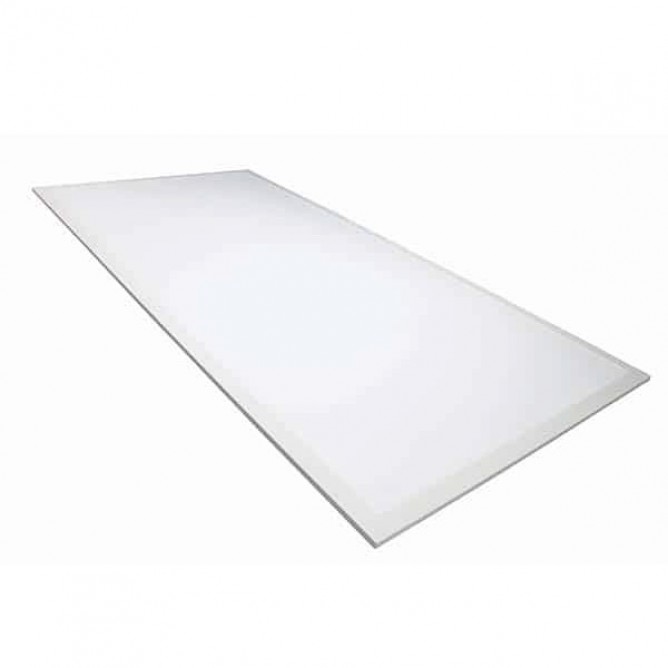

TCP DTF4UZD29CCT 2x4 29 Watt Back-Lit LED Flat Panel - 35K / 41K / 5K - 3,300 Lumens - 120-277V

The TCP DTF4UZD29CCT is a back-lit LED flat panel designed to deliver energy-efficient, uniform illumination for general commercial spaces such as offices, classrooms, and retail environments. This 29-watt panel operates on a wide 120–277V input range and features 0–10V dimming for adjustable light levels, making it suitable for spaces with varying occupancy and lighting requirements. The device supports CCT-tunable white light, allowing selection among warm-neutral 35K, neutral 40K, and daylight 50K color temperatures to match desired ambiance or task needs, all from a single fixture. The back-lit design provides even light diffusion across the panel, while a frosted diffuser helps reduce glare and contribute to a more comfortable visual environment. With an estimated lumen output of 3,300 and a high efficacy around 114 lumens per watt, this panel can help reduce energy use compared with traditional luminaires. The DLC 5.0 Standard listing and IC-rating indicate compliance with common efficiency and installation guidelines, and the fixture is rated for damp locations (IP20) which broadens where it can be installed in indoor settings. The unit carries a 50,000-hour expected life and a 5-year warranty, offering long-term performance confidence for facilities teams. This model is identified by the manufacturer part number DTF4UZD29CCT and is intended for use as a flush-mounted or ceiling-recessed panel in suitable openings, with standard installation practices applicable to back-lit, edge-lit, or panel-type LED luminaires.

Features:

• 120-277V operation
• 0-10V dimmable
• CCT-tunable: 35K / 40K / 50K
• Back-lit design for even lighting
• Frosted diffuser reduces glare
• IP20 damp location rated
• IC-rated
• DLC 5.0 Standard
• 50,000 hour rated
• 5 year warranty
