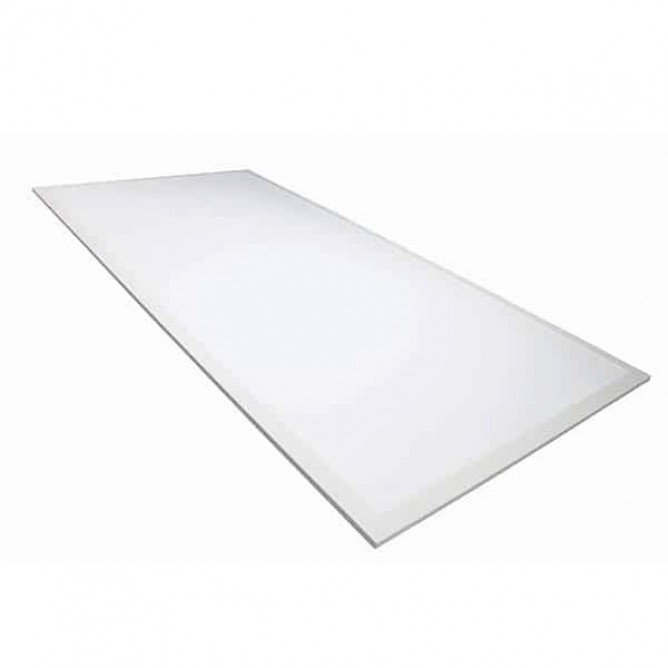

The TCP DTF4UZD39CCT is a back-lit LED flat panel designed to deliver high-quality illumination for commercial interiors such as offices, classrooms, and retail spaces. This 39-watt panel outputs about 4,400 lumens and is 0-10V dimmable, offering flexible lighting control to adapt to different tasks and occupancy scenarios. A key feature is its CCT-tunability, allowing selection among warm-neutral 35K, neutral 40K, or daylight 50K color temperatures to suit the mood and function of the space. The back-lit design helps ensure even light diffusion across the panel, while the frosted diffuser reduces glare for comfortable viewing. With a rated life of 50,000 hours, this fixture is intended for long-term operation in commercial settings, backed by a 5-year warranty.
Physically, the panel is slim and lightweight for straightforward installation, and it is rated IP20 for damp locations, making it suitable for indoor environments where incidental moisture is possible. The unit is IC-rated, which informs installers about thermal performance and compatibility with insulated ceilings, helping to minimize heat buildup. The panel is designed for 120-277V operation and is compatible with standard 0-10V dimming systems, enabling seamless integration into existing lighting controls and energy-saving strategies.
This TCP flat panel aligns with DLC 5.0 Standard for eligible energy rebates and performance criteria, helping facilities managers meet efficiency goals. It is offered in a per-unit package suitable for replacement or new installations, with a manufacturer part number of DTF4UZD39CCT and a 5-year warranty. When selecting this panel, verify ceiling cavity compatibility and dimming control compatibility, and plan for the CCT-tunable feature to ensure the preferred color temperature is accessible at installation or through a compatible control system.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT-tunable: 35K / 41K / 50K
- Back-lit design for even lighting
- Frosted diffuser reduces glare
- IP20 damp location rated
- IC-rated
- DLC 5.0 Standard
- DLC ID:
- PJBD439B
- Manufacturer Part Number:
- DTF4UZD39CCT
- UPC:
- 762148283034
- Manufacturer:
- TCP
- Flat Panel Type:
- Back-Lit
- Lumens:
- 4,400
- Lumens Per Watt:
- 112.82
- Wattage:
- 39 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- CRI:
- 80+
- DLC Listed:
- Standard
- Special Features:
- CCT Tunable, Damp Location
- Warranty:
- 5 Years
- Package Size:
- Each
