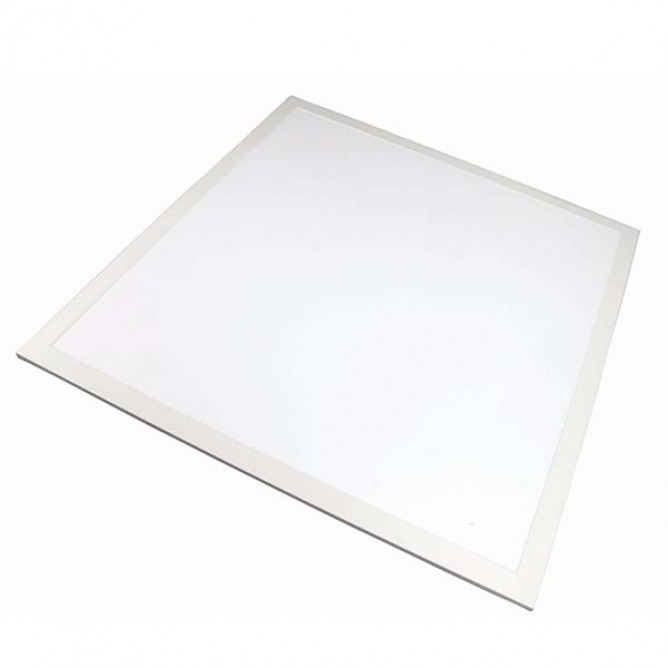

The TCP DTF series of back-lit LED flat panels are an excellent choice to provide long lasting, energy efficient LED illumination for your office, classroom, retail, or other general commercial lighting application. These back-lit panels are slim and lightweight, making installation a breeze while providing full panel light diffusion and uniformity. Each flat panel in the DTF series are CCT-tunable, allowing the installer or end-user to choose between warm-neutral 35K, neutral 40K or daylight 50K white light color temperature options. This model is also wattage selectable, allowing for a choice of wattage/lumen output options as well.
Save with The Safety Source
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features
- 120-277V operation
- 0-10V dimmable
- Wattage selectable: choose between 29W / 3,300 lumen, 39W / 4,400 lumen, or 46W / 5,100 lumen output options
- CCT-tunable: choose between warm-neutral 35K, neutral 40K, or daylight 50K white light color temperatures
- Back-lit design provides even, uniform lighting
- Frosted diffuser for reduced glare and aesthetic appeal
- IP20 damp location rated
- IC-rated
- DLC 5.0 Standard
- 50,000 hour rated
- 5 year warranty
Downloads:
Product Specifications:
| DLC ID | PFCDR6ZW |
|---|---|
| Manufacturer Part Number | DTF2UZD38CCT |
| UPC | 762148280491 |
| Manufacturer | TCP |
| Flat Panel Type | Back-Lit |
| Lumens | 4,200 |
| Lumens Per Watt | 110.53 |
| Wattage | 38 Watts |
| Input Voltage | 120-277V |
| Color Temperature | CCT Tunable |
| Dimmable | 0-10V |
| Lamp Type | LED |
| Color Tone | CCT Tunable |
| Rated Hours | 50,000 |
| CRI | 80+ |
| DLC Listed | Standard |
| Special Features | CCT Tunable, Damp Location, Wattage / Lumen Selectable |
| Warranty | 5 Years |
| Package Size | Each |
- DLC ID:
- PFCDR6ZW
- Manufacturer Part Number:
- DTF2UZD38CCT
- UPC:
- 762148280491
- Manufacturer:
- TCP
- Flat Panel Type:
- Back-Lit
- Lumens:
- 4,200
- Lumens Per Watt:
- 110.53
- Wattage:
- 38 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- CRI:
- 80+
- DLC Listed:
- Standard
- Special Features:
- CCT Tunable, Damp Location, Wattage / Lumen Selectable
- Warranty:
- 5 Years
- Package Size:
- Each
