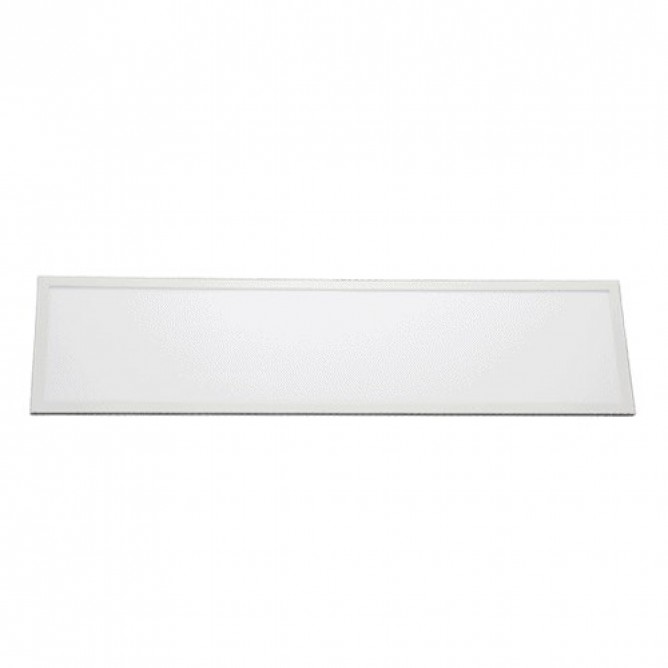

The TCP DTF1UZD23CCT is a back-lit LED flat panel designed to deliver even, diffuse illumination for commercial spaces such as offices, classrooms, and retail environments. This 1x4 panel is tuned for flexible light quality, offering selectable color temperatures to suit different tasks and moods. With a 23-watt rating and a luminous flux of 2,600 lumens, it pairs relatively low energy use with bright, uniform output. The back-lit design helps minimize glare and creates a smooth light field across the working area, while a frosted diffuser softens brightness for more comfortable viewing. The panel is rated for 120-277V operation and supports 0-10V dimming, enabling straightforward integration into existing lighting controls and variable lighting schemes.
Key durability and performance features include an IC-rated construction and an IP20 damp location rating, which makes the panel suitable for indoor applications where humidity or incidental moisture is a consideration. The unit is DLC 5.0 Premium listed and carries a 50,000-hour rated life, aligning with longer service intervals and lower maintenance costs. The product is backed by a 5-year warranty, giving added assurance for ongoing operation in commercial settings. The color temperature is tunable among 35K (warm neutral), 40K (neutral), and 50K (daylight) options, helping facilities balance tasks, ambience, and energy usage.
This panel is compatible with standard ceiling grid installations and is sized for a 1x4 layout. It is essential to verify driver compatibility and dimming control compatibility when integrating into an existing system. When selecting this panel, consider your desired lumen output, color temperature preference, and whether your application can benefit from the DLC Premium qualification, which can influence energy rebates and utility incentives.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT-tunable: 35K / 40K / 50K
- Back-lit design for even lighting
- Frosted diffuser reduces glare
- IP20 damp location rated
- IC-rated
- DLC 5.0 Premium
- 50,000 hour rated
- 5 year warranty
- DLC ID:
- PTL67QDS
- Manufacturer Part Number:
- DTF1UZD23CCT
- UPC:
- 762148283089
- Manufacturer:
- TCP
- Flat Panel Type:
- Back-Lit
- Lumens:
- 2,600
- Lumens Per Watt:
- 113.04
- Wattage:
- 23 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- CRI:
- 80+
- DLC Listed:
- Premium
- Special Features:
- CCT Tunable, Damp Location
- Warranty:
- 5 Years
- Package Size:
- Each
