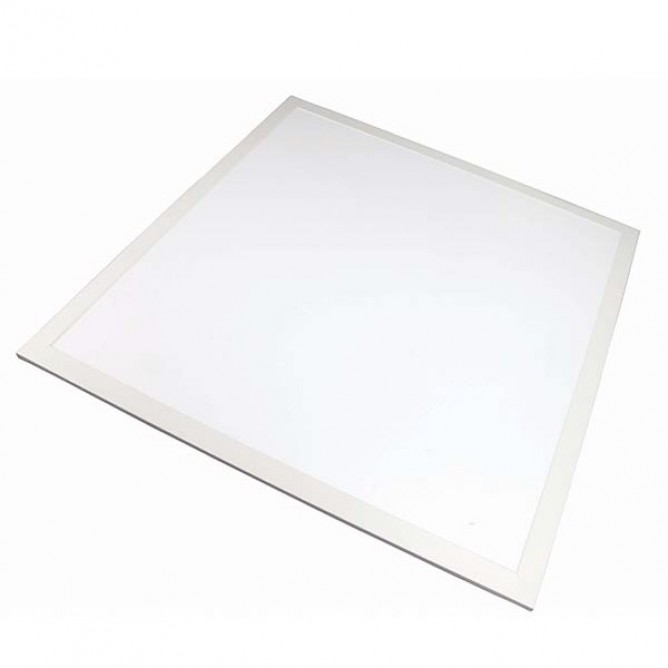

The TCP DTF2UZD29CCT is a back-lit LED flat panel designed to deliver even, diffuse illumination for commercial spaces such as offices, classrooms, and retail environments. With a 2x2 foot form factor and a selectable wattage of 29 watts, this panel provides a measured 3,200 lumens while operating on 120–277 V. The unit is CCT-tunable, offering a choice among 35K (warm-neutral), 40K (neutral), or 50K (daylight) color temperatures to suit different tasks or times of day, and it supports 0–10V dimming for compatible controls. The frosted diffuser helps minimize glare while maintaining a clean, uniform light output across the panel surface.
Constructed for practical installation and long service life, the panel features a back-lit design that promotes uniform light diffusion and reduces hotspots. It carries IP20 damp location suitability and is IC-rated, indicating appropriate insulation-contact performance in suitable environments. The DLC 5.0 Standard listing supports energy-efficiency program compliance where applicable, and TCP backs the unit with a 5-year warranty. A rated life of 50,000 hours provides an estimate of longevity under typical operating conditions, contributing to lower maintenance and replacement costs over time.
This panel is well-suited for modern office interiors, classrooms, and retail spaces that require flexible lighting that can adapt to different tasks or ambience. Compatibility considerations include 120–277 V input, 0–10V dimming, and the CCT-tunable feature, which allows end users or installers to select the preferred white light temperature on-site. The 2x2 fixture is designed for recessed or grid-mounted ceilings compatible with standard 2x2 troffer or panel layouts, and its performance specification of 3,200 lumens at 29 watts translates to a solid lumen-per-watt efficiency while maintaining color versatility across the three CCT options.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT tunable: 35K / 41K / 50K
- Back-lit design for uniform lighting
- Frosted diffuser reduces glare
- IP20 damp location rated
- IC-rated
- DLC 5.0 Standard
- 50,000 hour rated
- 5 year warranty
- DLC ID:
- P7L4RO31
- Manufacturer Part Number:
- DTF2UZD29CCT
- UPC:
- 762148283003
- Manufacturer:
- TCP
- Flat Panel Type:
- Back-Lit
- Lumens:
- 3,200
- Lumens Per Watt:
- 110.34
- Wattage:
- 29 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- CRI:
- 80+
- DLC Listed:
- Standard
- Special Features:
- CCT Tunable, Damp Location
- Warranty:
- 5 Years
- Package Size:
- Each
