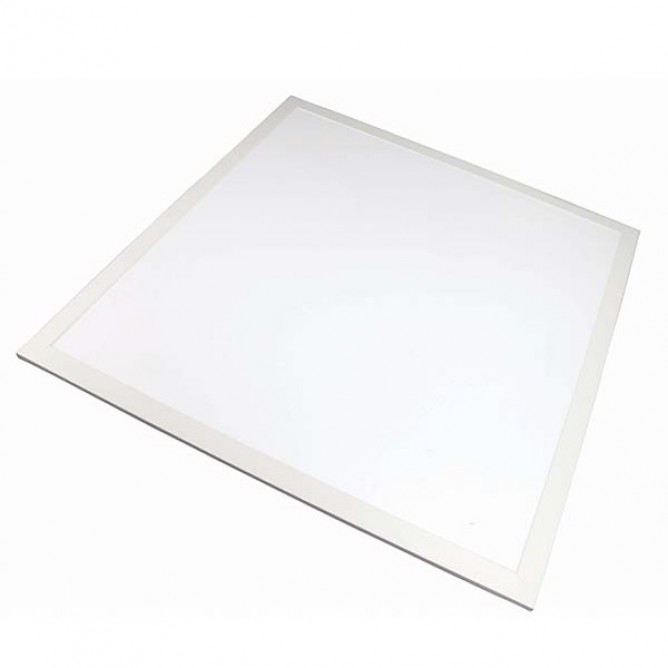

The TCP DTF2UZD23CCT is a back-lit LED flat panel designed to deliver uniform, diffused illumination for commercial spaces such as offices, classrooms, and retail environments. This 2x2 panel provides flexible color temperature options and wattage output, all in a slim, lightweight form factor that simplifies installation and reduces vertical clutter in lighting layouts. The unit is dimmable via 0-10V, enabling fine-tuning of brightness to suit task needs and ambient lighting conditions.
Key features include CCT tunability among warm-neutral 35K, neutral 40K, and daylight 50K options, allowing a single fixture to adapt to changing design requirements without swapping hardware. The frosted diffuser minimizes glare while delivering consistent light distribution across the panel. With an IP20 damp location rating and IC-rated construction, the panel is suitable for typical indoor environments and can be integrated into insulated ceilings without compromising safety or efficiency. The design emphasizes energy efficiency and long life, backed by a 50,000-hour rating and a 5-year warranty, helping reduce maintenance and operating costs over time.
In practice, this panel can be used in office suites, classrooms, or retail spaces where a clean, evenly lit ceiling plane is desired. Its DLC 5.0 Standard listing supports compatibility with many lighting rebate programs and design guidelines, while the 23-watt, 2,600-lumen output balances brightness with energy use. The unit operates on 120-277V, ensuring compatibility with a wide range of electrical systems and simplifying installation in renovations or new construction. Consider pairing with compatible drivers and ensuring proper dimming control for desired lumen outputs and color temperature adjustments.
Features:
- 120-277V operation
- 0-10V dimmable
- CCT-tunable: 35K / 41K / 50K
- Back-lit design for uniform lighting
- Frosted diffuser reduces glare
- IP20 damp location rated; IC-rated
- DLC 5.0 Standard; 50,000 hour life
- 5-year warranty
- DLC ID:
- PA9RANQL
- Manufacturer Part Number:
- DTF2UZD23CCT
- UPC:
- 762148283010
- Manufacturer:
- TCP
- Flat Panel Type:
- Back-Lit
- Lumens:
- 2,600
- Lumens Per Watt:
- 113.04
- Wattage:
- 23 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- CCT Tunable
- Dimmable:
- 0-10V
- Lamp Type:
- LED
- Color Tone:
- CCT Tunable
- Rated Hours:
- 50,000
- CRI:
- 80+
- DLC Listed:
- Standard
- Special Features:
- CCT Tunable, Damp Location
- Warranty:
- 5 Years
- Package Size:
- Each
