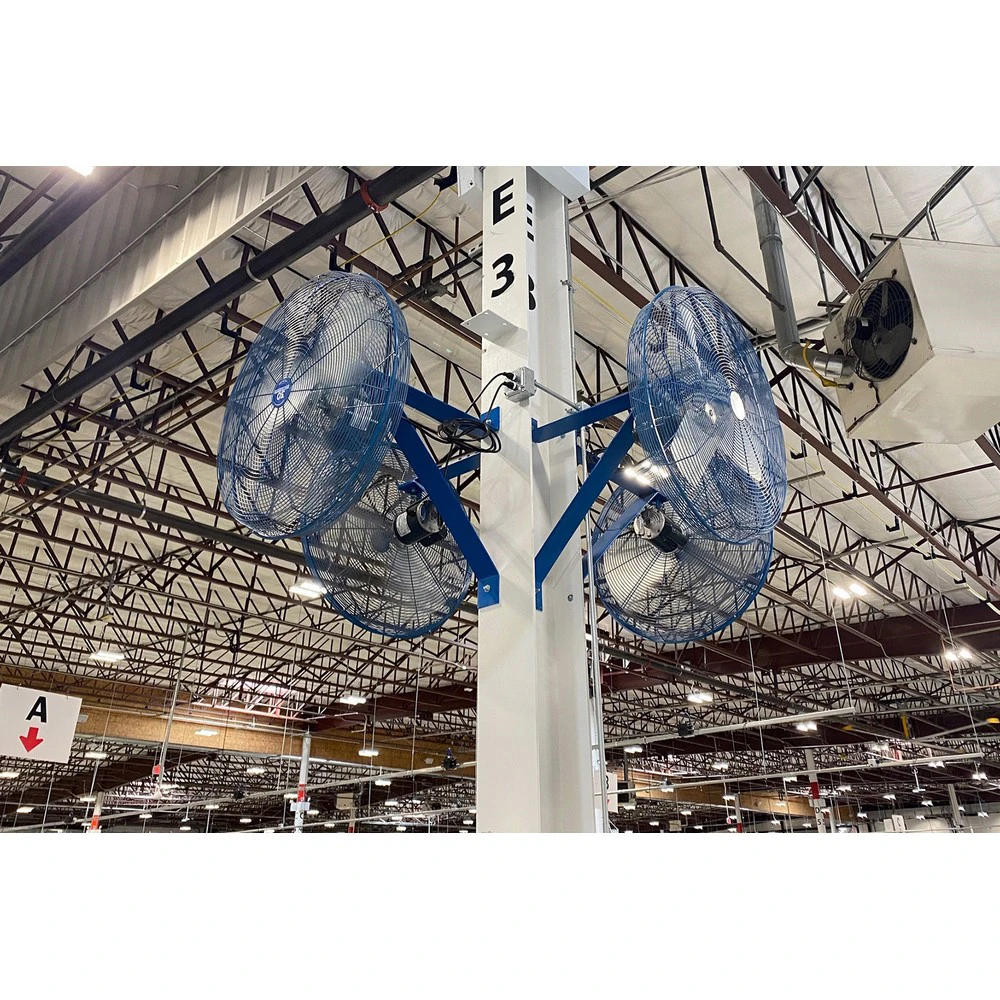

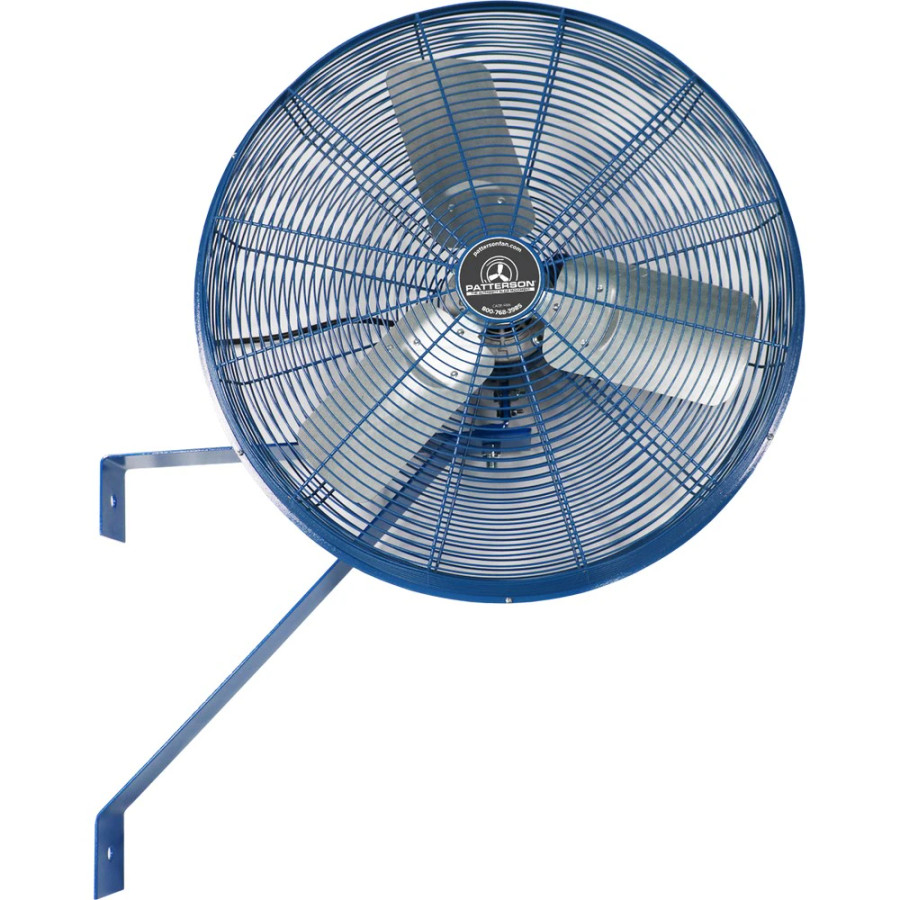

The Patterson FPC30A-CW-PC-BLUE is a 30-inch industrial cage fan designed to move substantial volumes of air in work environments where reliable ventilation is essential. Built with a steel, powder-coated cage, this unit emphasizes durability and resistance to corrosion while contributing to quieter operation compared with some larger fans. It is configured for mounting versatility, available with pedestal support for floor level placement or a column-wall mount to keep air moving without occupying floor space. The fan is equipped with a 115V, thermally protected motor and offers two speeds, with a low speed around 750 RPM and a high speed near 1075 RPM, delivering CFM ratings of 8600 on low and 9700 on high to suit different cooling needs. The included factory-wired 10-foot cord and inline cord switch provide ready-to-use installation out of the box, while the option for an adjustable-height pedestal (42–72 inches) expands placement flexibility for various workstation configurations.
Product construction emphasizes safety and compliance with visible features such as a blue powder-coated guard that aligns with OSHA-style color coding for equipment safety. This unit is part of Patterson’s cage fan lineup, available in multiple sizes (18
Features:
- Three sizes available (18", 24", 30"); this listing is for 30" model
- ODP motor, 2-speed operation (TEAO available upon request)
- 115V, thermally protected motor
- Motor speeds: 750 RPM (low) / 1075 RPM (high)
- OSHA-compliant blue powder-coated guards
- Factory-wired 10' cord with inline cord switch
- Pedestal mount available (adjustable 42"–72") and column-wall mount option
- Size:
- 30 inches
- CFM Low/High:
- 8600/9700
- HP:
- 1/2
- Voltage:
- 115V
- Motor Rated Amps:
- 5.6
- Package Size:
- Each
