The Patterson FPC30A 30" Cage Fan is a stationary industrial air circulator designed to move air efficiently in larger work areas. Built with a steel framework and a powder-coated blue guard, this cage fan emphasizes durability and visibility in areas with noise requirements, offering quieter operation relative to some industrial fans while still delivering meaningful air movement.

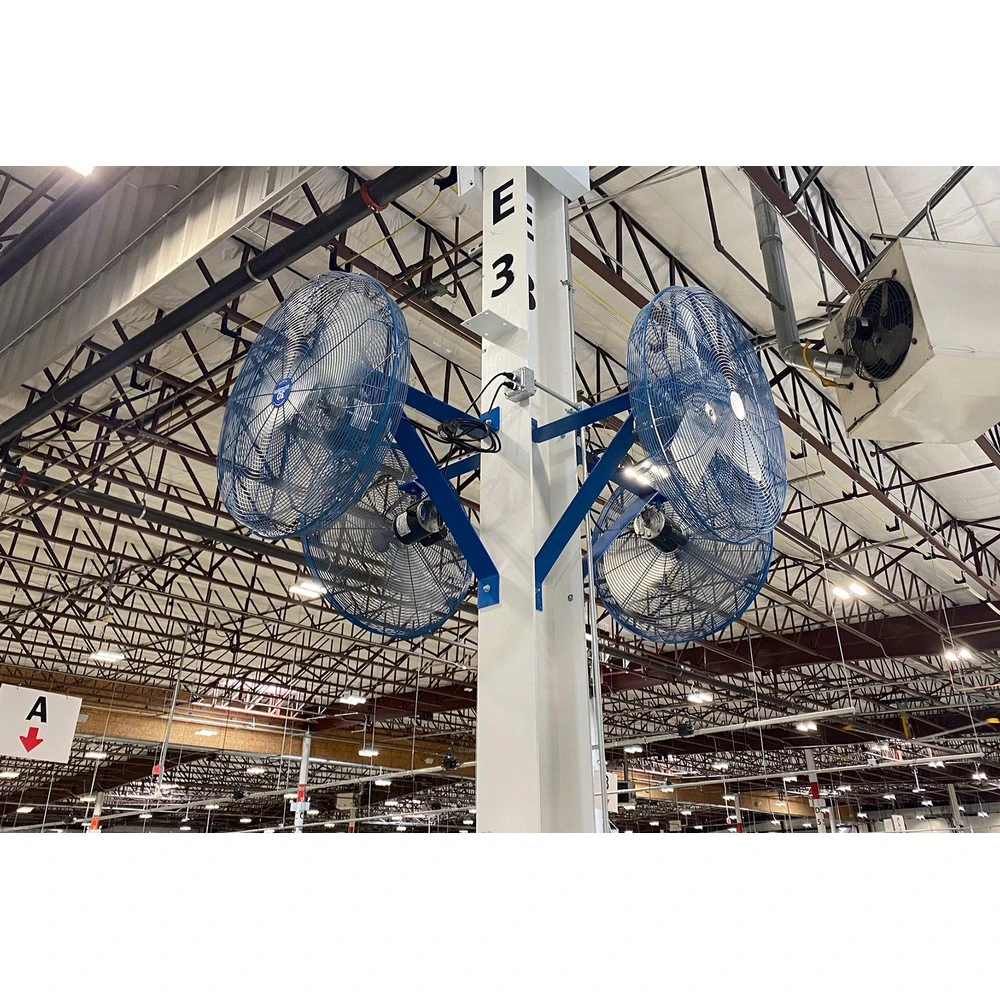

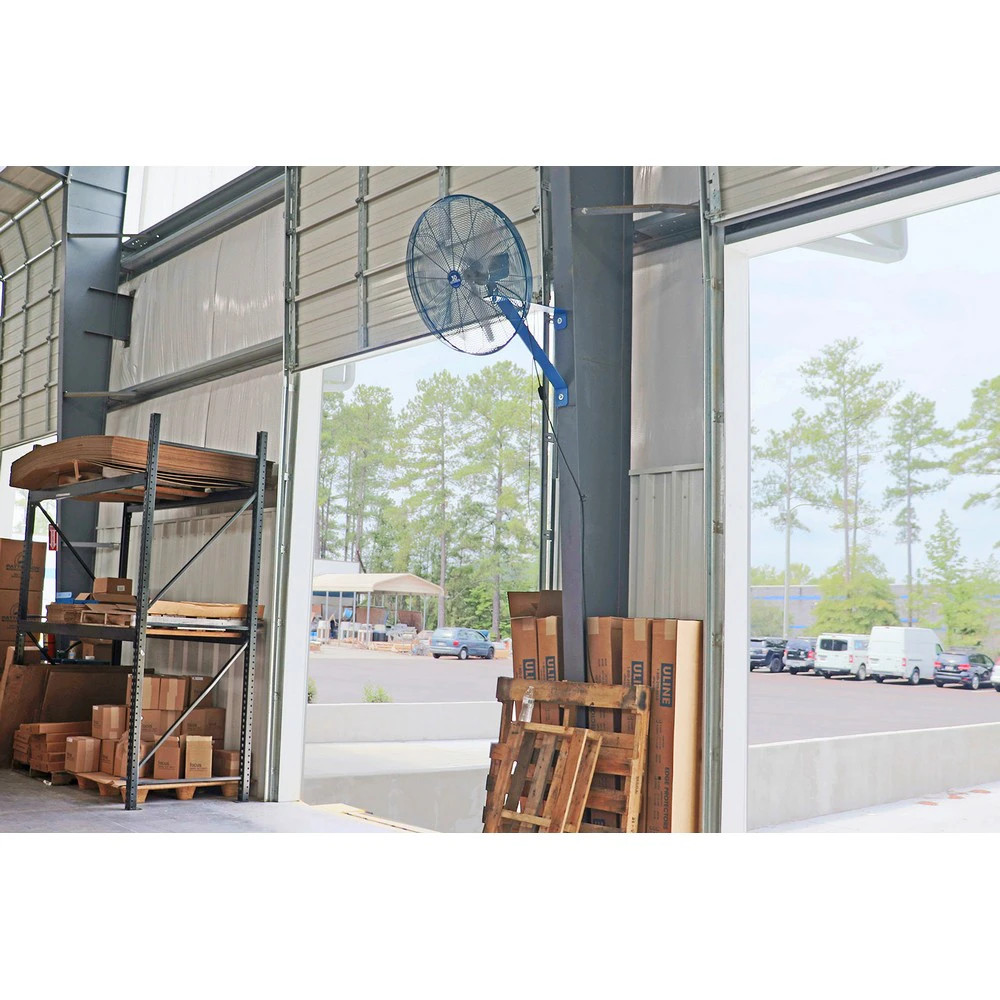

Key construction features include a durable 30 inch rotor with a two-speed, 115V motor that is thermally protected. The motor speeds are 750 RPM on low and 1075 RPM on high, with a 1/2 HP rating and a motor current draw of about 5.6 amps. The unit ships factory-wired with a 10 foot cord and inline switch, and it is available for pedestal mounting (adjustable height 42 to 72 inches) or column-wall mounting to suit factory floor layouts and safety clearances. These options enable flexible placement in spaces like service bays, automotive facilities, or warehouses where airflow is needed without taking up valuable overhead space.
Practical considerations for installation include choosing the appropriate mounting to maintain accessibility for maintenance and ensuring the cord and switch are accessible for routine operation. The guard’s OSHA-compliant blue powder coating reflects a focus on safety visibility and corrosion resistance in demanding environments. This product is categorized for janitorial and facility-supply applications and is suitable for spaces that require reliable air movement with attention to noise considerations and footprint. When selecting, verify the intended airflow needs (CFM values of 8600 L and 9700 H) and confirm the mounting option that aligns with ceiling height, pedestal clearance, and desired reach near workstations or equipment.<\/p>
Features:
- Three sizes available (18", 24", 30")
- ODP motor, 2-speed operation (TEAO available on request)
- 115V, thermally protected
- Motor speeds: 750 RPM / 1075 RPM
- OSHA-compliant blue powder-coated guards
- Factory-wired 10' cord with inline cord switch
- Optional pedestal mount (42"–72" adjustable)
- Size:
- 30 inches
- CFM Low/High:
- 8600/9700
- HP:
- 1/2
- Voltage:
- 115V
- Motor Rated Amps:
- 5.6
- Package Size:
- Each
