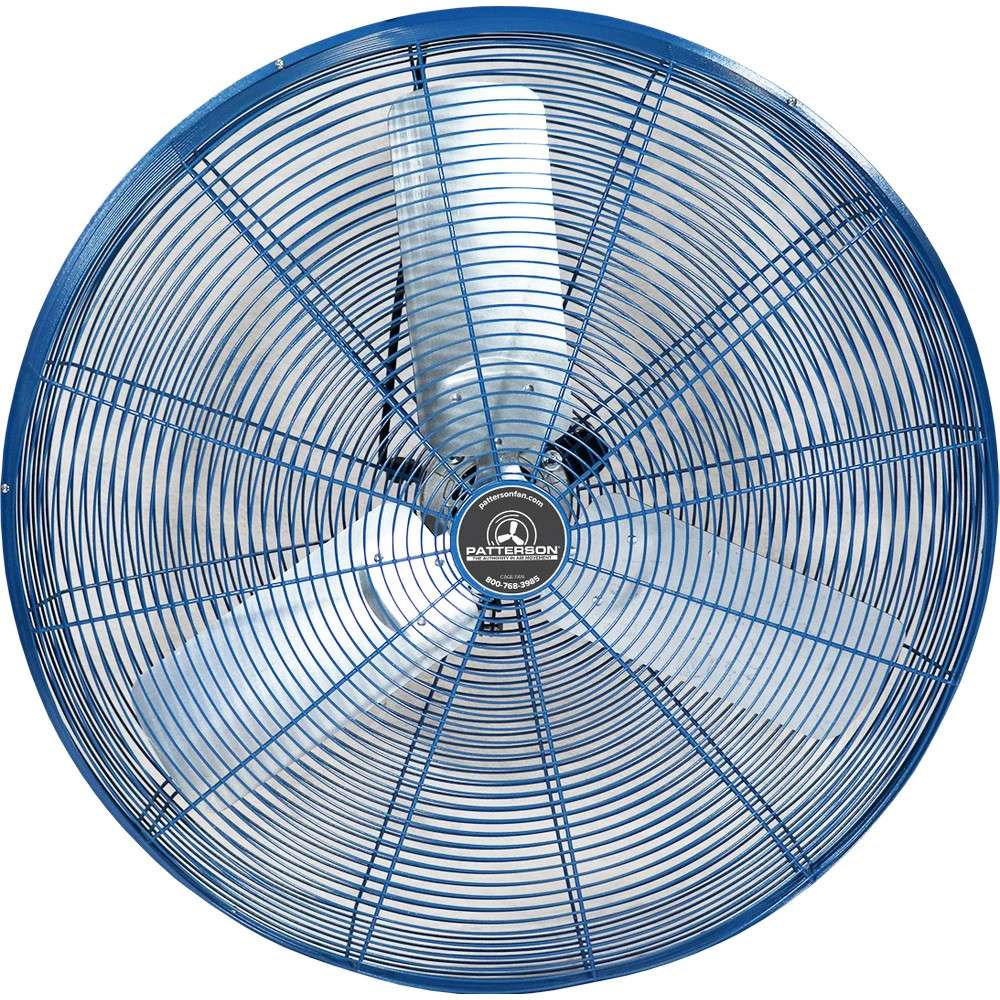

The Patterson FPC24A 24" Cage Fan is a compact, industrial-grade air circulator designed for demanding work environments where reliable airflow is required without excessive noise. This 24-inch model uses a steel, powder-coated cage guard for durability and corrosion resistance, and it is equipped with an ODP motor that delivers two speeds (with TEAO option available on request) and a motor speed of 750 or 1075 RPM. The unit is wired for 115V operation and includes thermal protection, helping prevent motor damage in demanding settings. A factory-wired 10-foot cord with an inline switch provides convenient power control, while the wall-mount and pedestal-mount options offer flexible installation to keep the fan at an appropriate height for the workspace.
This cage fan is available in three sizes (18", 24", 30"), allowing you to select the model that best fits your space and air-movement needs. The guards are finished in OSHA-compliant blue powder coating, which helps with visibility and safety in busy environments. The 24" model, as specified, delivers a low- to high-velocity airflow with CFM ratings of 4000 on low and 6300 on high, suitable for shops, automotive facilities, or warehouses where focused air movement is required. The included packaging denotes a single unit per package, and mounting hardware is compatible with available pedestal or column-wall installations to suit floor-level or elevated setups.
Practical considerations for use include selecting from the available mounting options to optimize air distribution without occupying valuable floor space, and noting the 10-foot cord length for reach in larger rooms. By choosing the appropriate speed and mounting method, users can tailor airflow to specific cooling or ventilation needs while maintaining a quieter profile relative to larger industrial fans. These details matter because they influence placement, electrical requirements, and overall effectiveness of the fan in maintaining comfortable and productive work areas.
Features:
- Three sizes available: 18", 24", 30"
- ODP motor, 2-speed operation (TEAO on request)
- 115V, thermally protected
- Motor speeds: 750 RPM (low) / 1075 RPM (high)
- OSHA-compliant blue powder-coated guards
- Factory-wired 10' cord with inline switch
- Optional pedestal mount (42"–72" height) or column-wall mount
- Size:
- 24 inches
- CFM Low/High:
- 4000/6300
- HP:
- 1/2
- Voltage:
- 115V
- Motor Rated Amps:
- 5.6
- Package Size:
- Each
