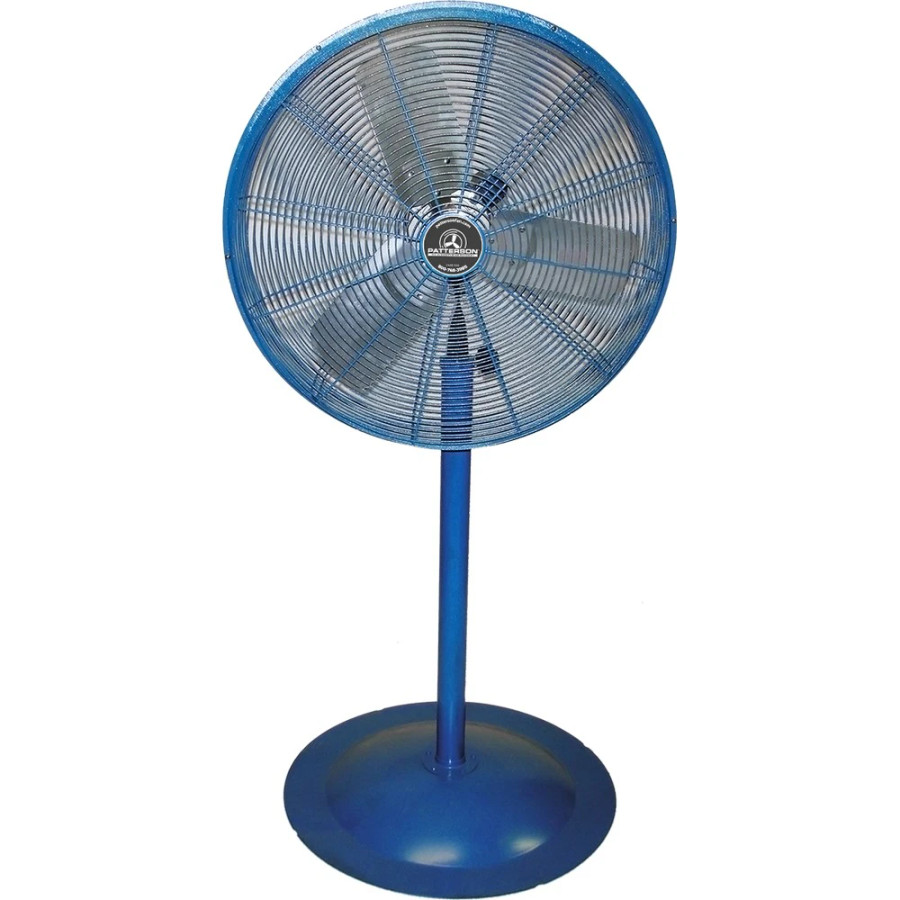

The Patterson FPC30A-PED-PC is a 30-inch cage-style industrial fan designed to move air efficiently in workshops, automotive facilities, and other large, noise-sensitive spaces. Built with a steel frame and powder-coated blue guards, this model emphasizes durability and corrosion resistance while keeping noise levels manageable for environments that require steady air movement without excessive sound. The unit includes a TEAO-capable three-size family, with a 30-inch option in this line, and is powered by a 115V, thermally protected motor rated to operate at two speeds (standard 750 or 1075 RPM). A 10-foot factory-wired cord with an inline switch simplifies installation and operation, while the pedestal-mount option provides adjustable height ranging roughly from floor level to above head height (42 to 72 inches when mounted).
Features:
- Three sizes available: 18", 24", 30"
- ODP motor, 2-speed (TEAO on request)
- 115V operation with thermally protected motor
- Motor speeds: 750 RPM / 1075 RPM
- OSHA-compliant blue powder-coated guards
- Factory-wired 10' cord with inline switch
- Optional pedestal mount (42"–72" adjustable)
- Optional column-wall mount
- Size:
- 30 inches
- CFM Low/High:
- 8600/9700
- HP:
- 1/2
- Voltage:
- 115V
- Motor Rated Amps:
- 5.6
- Package Size:
- Each
