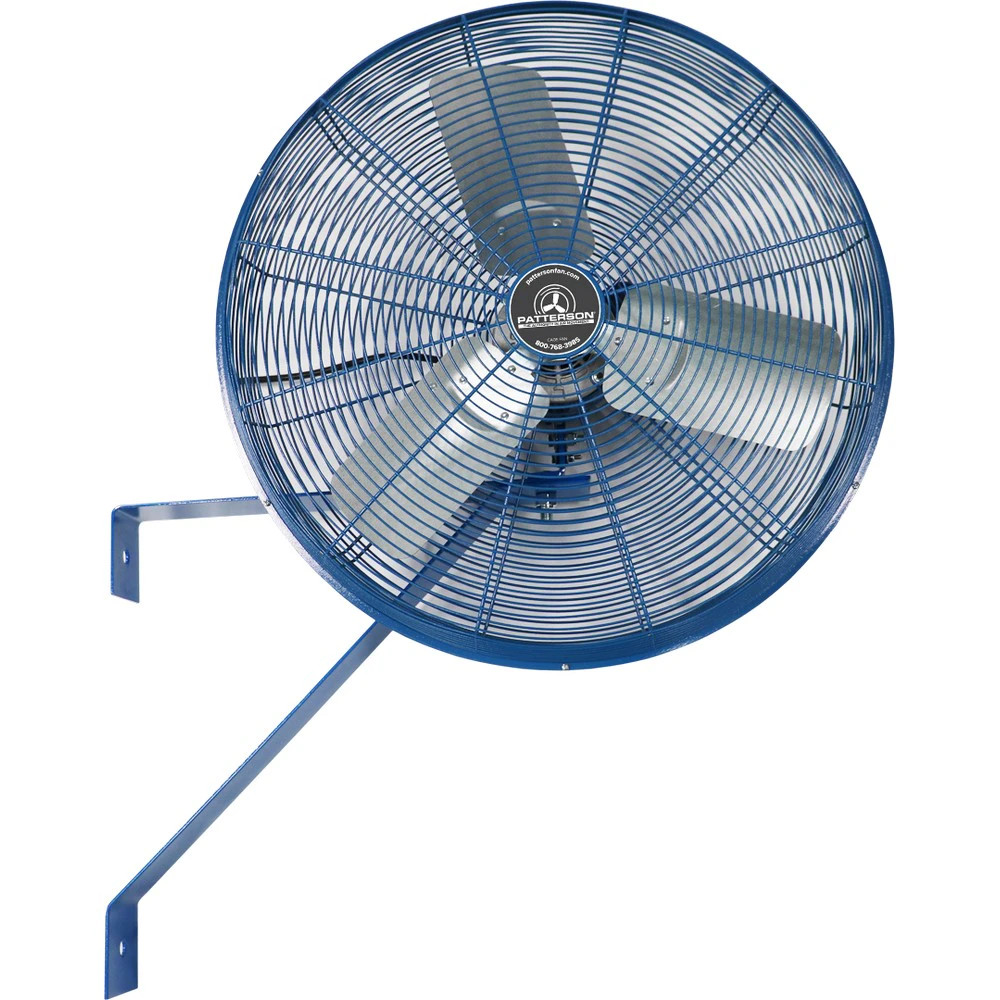

The Patterson FPC24A-CW-PC-BLUE is a compact industrial cage fan designed to move air efficiently in demanding spaces while keeping noise levels lower than typical industrial units. Built with a steel frame and powder-coated guards in OSHA-compliant blue, this 24-inch model delivers robust airflow for shops, automotive facilities, and warehouses where reliable ventilation is needed without excessive noise. It ships as a factory-wired unit with a 10-foot cord and an inline switch for straightforward installation, and it is offered with options for pedestal mounting (adjustable height from 42 to 72 inches) or a column-wall mounting configuration to suit your space constraints.
Key construction details include a TEAO-ready ODP motor and two-speed operation, with speeds around 750 RPM and 1075 RPM, supporting a broad range of ventilation needs. The motor is 115V and thermally protected, providing a measure of protection against overheating during extended use. The 24-inch fan is rated at 4000 CFM on the low setting and up to 6300 CFM on the high setting, with a motor current draw noted at 5.6 amps. This balance of airflow and duty is intended for areas where constant air movement is needed to improve comfort, reduce heat buildup, or aid in general air circulation without introducing excessive noise.
For buyers, practical considerations include choosing the appropriate mounting option to keep the unit out of walkways while preserving accessibility for service. With multiple sizes available (18
Features:
- Three fan sizes available: 18", 24", 30"
- ODP motor, 2-speed operation (TEAO available on request)
- 115V power, thermally protected
- High performance: 6300 CFM (high) and 4000 CFM (low)
- 90-degree blue powder-coated guards for OSHA-style visibility
- Factory-wired 10' cord with inline cord switch

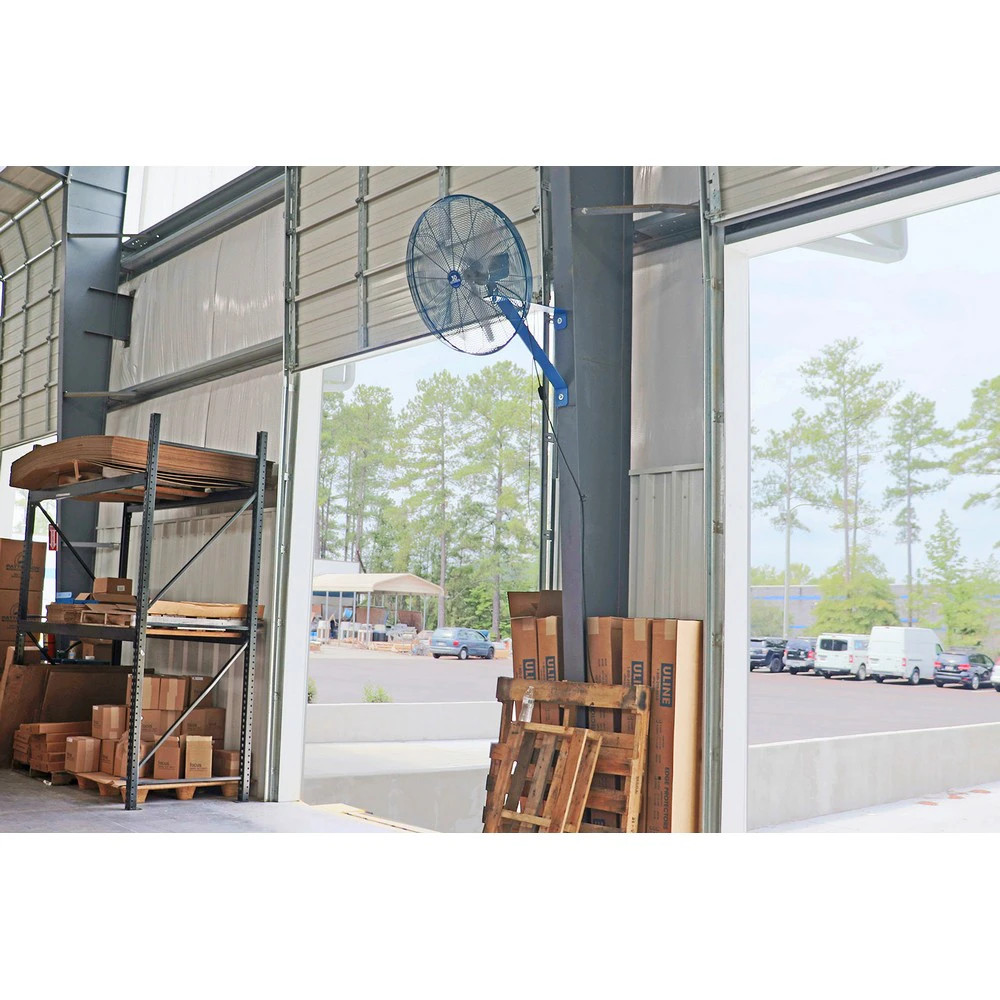

- Optional pedestal mount (42"–72"), or column-wall mount
- Size:
- 24 inches
- CFM Low/High:
- 4000/6300
- HP:
- 1/2
- Voltage:
- 115V
- Motor Rated Amps:
- 5.6
- Package Size:
- Each
